YANMAR 124772-66220 Pin

Write a Review
$5.19
SKU:
124772-66220
Schematic Object Key:
48

YANMAR 124772-66220 Pin

$5.19

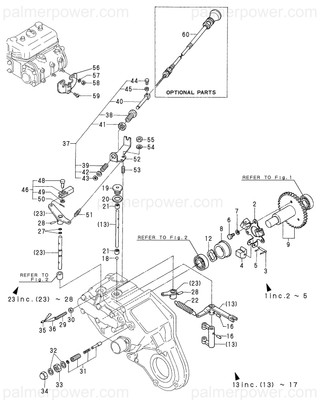

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

YANMAR 124772-66220 Pin

Schematic Object Key : 48

Product Description : PIN 124772-66220

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Other Components:

Ref Description Part No.
1 WEIGHT ASSY,GOVERNOR 724070-61520
2 SUPPORT, WEIGHT 124070-61110
3 PIN, GOVERNOR WEIGHT 124070-61220
4 WEIGHT, GOVERNOR 104211-61200
5 PIN, COTTER 2.0X20 22417-200200
6 BOLT, M6X 12 PLATED 26116-060122
7 WASHER, SPRING 6 22217-060000
8 SLEEVE, GOVERNOR 124070-61600
9 SHAFT ASSY 124070-61090
12 WASHER, 20 124070-61900
13 LEVER ASSY, GOVERNOR 724070-61500
16 PIN, TAPER 3X16 22322-030160
18 BALL, STEEL 1/4 24190-080001
19 PLUG, M16 124070-61910
19-1 PLUG, 16 23883-160002
20 SEAL WASHER 16S 43400-500490
20-1 GASKET, 16X1.0 23414-160000
21 BEARING, FJ-79W 104211-61520
22 SPRING, REGULATOR 124060-66010
22-1 SPRING, REGULATOR 124070-66010
23 HANDLE ASSY 724070-66530
27 O-RING, 1AP5.0 24311-000050
28 PIN, TAPER 3X16 22322-030160
29 SCREW 103854-66420
30 NUT, LOCK M6 26756-060002
31 LIMITER ASSY, FUEL 124070-66550
32 SEAL WASHER 10S 43400-500430
33 NUT, LOCK M10 26756-100002
34 NUT, CAP M10 26667-100002
35 LEAD 135210-61090
36 WIRE, 1.0 22451-100000
37 ADJUSTER ASSY 124772-66700
38 ADJUSTER ASSY 124772-66700
39 SPRING, ADJUSTER 124772-66720
40 PIN 124772-66730
41 NUT, LOCK M12 124772-66750
42 WASHER 124772-66760
43 RING, E- 4 22272-000040
44 BOLT, M5X 12 26113-050128
45 NUT, LOCK M5 26753-050002
46 CLEVIS ASSY 124772-66200
48 PIN 124772-66220
49 WASHER, 5 22113-050000
50 PIN, COTTER 1.6X10 22414-160100
51 SPRING, RETURN 124070-66100
52 BRACKET, ADJUSTER 124070-66740
53 STUD, M6X 12 26226-060122
54 WASHER, SPRING 6 22217-060000
55 NUT, M6 26716-060002
56 BRACKET, CABLE 124070-67100
57 WASHER, 8 22117-080000
58 NUT, LOCK M8 26756-080002
59 SCREW, M5X10 26557-050102
60 CABLE, STOP L=3000 124070-67550
