YANMAR 125613-42920 Plate

Write a Review
$7.58
SKU:
125613-42920
Schematic Object Key:
22

YANMAR 125613-42920 Plate

$7.58

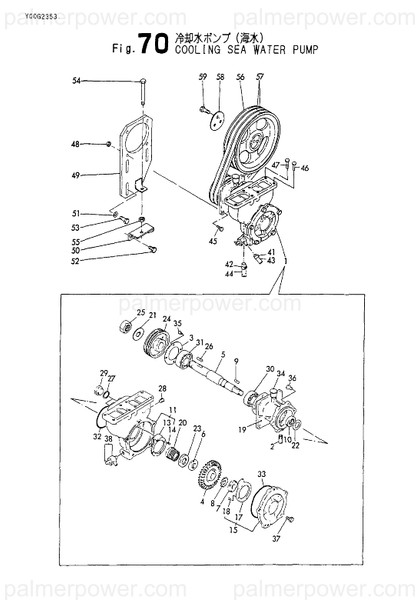

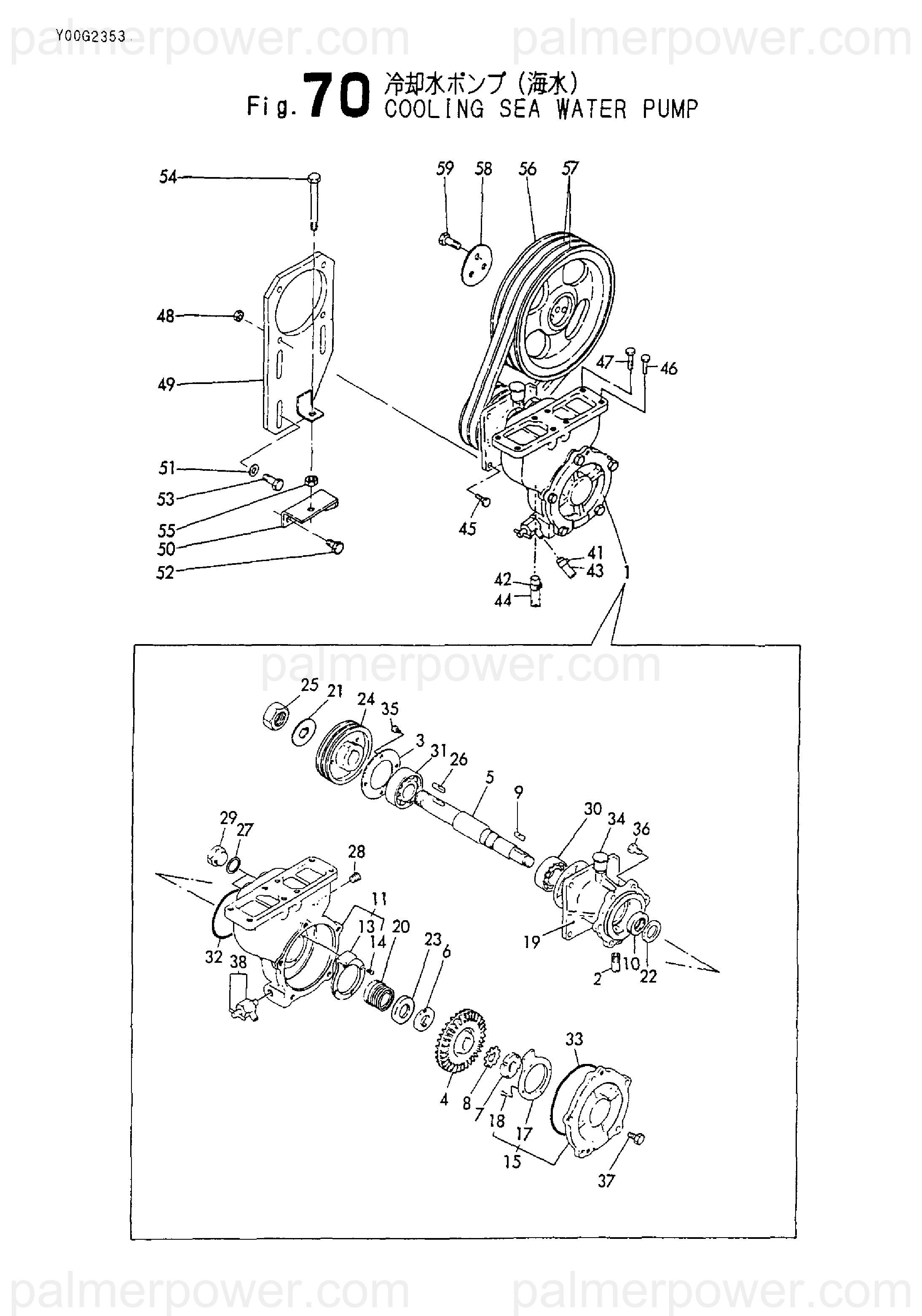

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

YANMAR 125613-42920 Plate

Schematic Object Key : 22

Product Description : PLATE

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Other Components:

Ref Description Part No.
1 PUMP ASSY, WATER 148609-42750
2 JOINT, PIPE 123472-42130
3 RETAINER, BEARING 144626-42390
4 IMPELLER 144626-42400
5 SHAFT, IMPELLER 144626-42412
6 SPACER 144626-42420
7 NUT 144626-42440
8 WASHER 144626-42450
9 KEY, 7X25 144626-42460
10 OIL SEAL TC304508 136600-42480
11 BODY, PUMP 144626-42502
13 PLATE 144626-42340
14 SCREW, M4X 8 26553-040082
15 COVER ASSY 144626-42511
17 PLATE 144626-42350
18 SCREW, M4X 8 26553-040082
19 CASE, BEARING 148616-42510
20 SEAL, MECHANICAL 145647-42580
21 WASHER 144626-42610
22 PLATE 125613-42920
23 RETAINER, SPRING 148609-42960
24 V-PULLEY 148616-43070
25 NUT, CAP 148616-43080
26 KEY, 7X 26 22512-070262
27 GASKET, 25X1.0 23414-250031
28 PLUG, R01 23873-010000
29 PLUG 25, HEX. 23884-250002
30 BEARING, BALL 6206U 24102-062064
31 BEARING, BALL 6306U 24102-063064
32 O-RING, 1AG95.0 24321-000950
33 O-RING, 1AG130.0 24321-001300
34 CUP, GREASE 25X1/8 24751-250010
35 BOLT, M6X 10 PLATED 26106-060102
36 BOLT, M8X 18 PLATED 26106-080182
37 BOLT, M10X 22 PLATED 26106-100222
38 COCK ASSY, 3/8 43600-500311
41 CLAMP, 16 23000-016000
42 CLAMP, 19 23000-019000
43 PIPE, 12X 500 23061-120500
44 PIPE, 14X 500 23061-140500
45 BOLT, M10X 35 PLATED 26106-100352
46 BOLT, M10X 40 PLATED 26106-100402
47 BOLT, M10X 55 PLATED 26106-100552
48 NUT, M10 26706-100002
49 SUPPORT 148616-42520
50 ADJUSTER 148616-42540
51 WASHER, 12 22137-120000
52 BOLT, M12X 22 PLATED 26116-120222
53 BOLT, M12X 30 PLATED 26116-120302
54 BOLT, M12X105 PLATED 26116-121054
55 NUT, M12 26716-120002
56 V-PULLEY 148616-42600
57 V-BELT, B42 148616-42610
57-1 V-BELT, B42 25133-004200
58 WASHER 148616-42620
59 BOLT, M12X 30 PLATED 26116-120302
