YANMAR 126443-18050-A Turbine Assy

Write a Review
$6,612.39
SKU:
126443-18050-A
Schematic Object Key:
1A-1

YANMAR 126443-18050-A Turbine Assy

$6,612.39

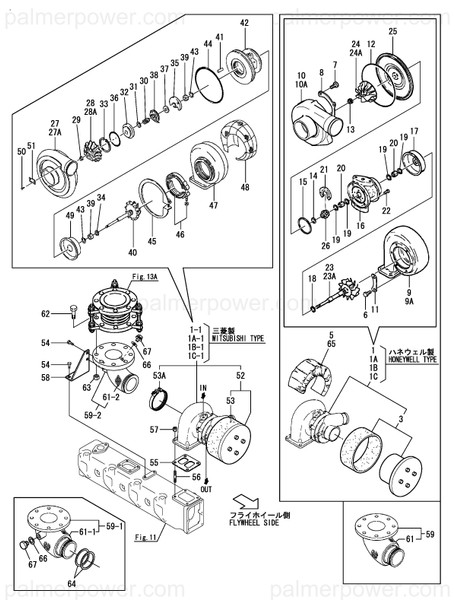

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

YANMAR 126443-18050-A Turbine Assy

Schematic Object Key : 1A-1

Product Description : TURBINE ASSY

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Other Components:

Ref Description Part No.
1 TURBOCHARGER, T04E 126443-18010
1-1 TURBOCHARGER, TD07S 126443-18050
1-2 TURBINE, TD07S 126443-18051
1A TURBOCHARGER, T04E 126443-18210
1A-1 TURBINE ASSY 126443-18050-A
1A-2 TURBINE, TD07S 126443-18051-A
1B TURBOCHARGER, T04E 126443-18030
1B-1 TURBOCHARGER ASSY 126443-18060
1B-2 TURBINE ASSY 126443-18061
1C TURBOCHARGER, T04E 126443-18230
1C-1 TURBOCHARGER ASSY 126443-18060-A
1C-2 TURBINE ASSY 126443-18061-A
3 SILENCER, TURBINE 127487-18850
5 INSULATOR 127656-18860
6 BOLT 940045-00001
7 BOLT 940097-50303
8 CLAMP 944313-60001
9 HOUSING, TURBO. 941040-10023
9A HOUSING, TURBO. 941040-10034
10 HOUSING 944321-90103
10A HOUSING, COMPRESSOR 944321-90104
11 PLATE, CLAMP 940884-80002
12 RING, SEAL 940306-90077
13 NUT,LOCK 940076-80011
14 RING, PISTON 940381-80009
15 RING, SEAL 940042-40000
16 HOUSING ASSY, CENTER 943002-70058
17 WHEEL, SHROUD 940929-90000
18 RING, PISTON 940804-90009
19 RING, RETAINING 940056-80000
20 BEARING 940805-60000
21 BEARING, THRUST 940690-70000
22 BOLT 944410-10202
23 WHEEL, TURBINE 941018-80005
23A WHEEL, TURBINE 941018-80019
24 WHEEL 944229-30006
24A WHEEL, COMPRESSOR 944229-30015
25 BACK PLATE 940804-50030
26 COLLAR 948028-80004
27 HOUSING,TURBO X4918756020
27A HOUSING, TURBINE X4918756040
28 WHEEL, TURBINE X4918743820
28A WHEEL, TURBINE X4918743840
29 NUT, LOCK X4918642220
30 SLEEVE X4918742110
31 RING,COMPRESSOR SIDE 126443-18830
32 INSERT X4918722520
33 RING, SNAP X4916823201
34 RING, TURBINE SIDE 126443-18820
35 BEARING, THRUST 126443-18810
36 O-RING X4916822100
37 RING, THRUST X4918742300
38 PLATE, OIL X4918722200
39 BEARING, TURBINE 126443-18800
40 WHEEL X4918730130
41 PIN, SPRING X4918322800
42 HOUSING X4918720200
43 RING X4918722310
44 O-RING XF315613000
45 RING,SNAP X4918723300
46 COUPLING X4918714000
46-1 COUPLING X4918714001
47 HOUSING X4918710300
47-1 HOUSING X4918710310
48 LAGGING, TURBINE 126443-18470
49 PLATE X4918719100
50 RIVET X0066502048
51 LABEL X4616855200
52 SILENCER, TURBINE 126443-18870
53 PRE CLEANER 126443-18880
53A CLAMP, V 126644-18490
54 BOLT, M10X 20 PLATED 26106-100202
54-1 BOLT, M10X 16 PLATED 26106-100162
55 GASKET 123678-18050
56 STUD, M10X 25 26213-100252
57 NUT, M10 26713-100002
57-1 U-NUT 128633-18700
58 SUPPORT, BEND 126443-13100
59 BEND, TURBINE OUTLET 127653-18300
59-1 BEND, TURBINE OUTLET 126443-18500
59-2 BEND ASSY 126443-18550
59-3 BEND, EXHAUST 4B 126443-18551
61 INSULATOR 127653-18390
61-1 INSULATOR 126443-18520
61-2 COVER 126443-18570
62 BOLT, M16X 50 26113-160502
62-1 BOLT, M16X 60 26113-160602
62-2 BOLT, M16X 60 PLATED 26116-160602
63 NUT, M16 26713-160002
63-1 NUT, M16 26716-160002
64 RING, SEAL 113200-22120
64-1 RING, SEAL 113200-22120
65 INSULATOR 127656-18860
65-1 INSULATOR, TURBINE 126443-18860
66 GASKET, 21X1.0 23414-210000
67 PLUG G1/2,HEX. 23894-040002
