YANMAR 126443-65100 Joint, Switch

Write a Review
$939.18
SKU:
126443-65100
Schematic Object Key:
31

YANMAR 126443-65100 Joint, Switch

$939.18

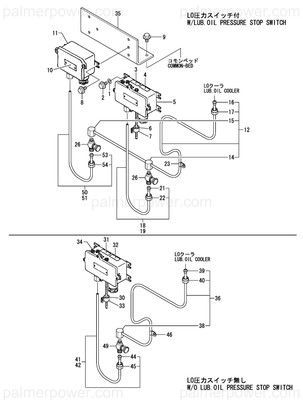

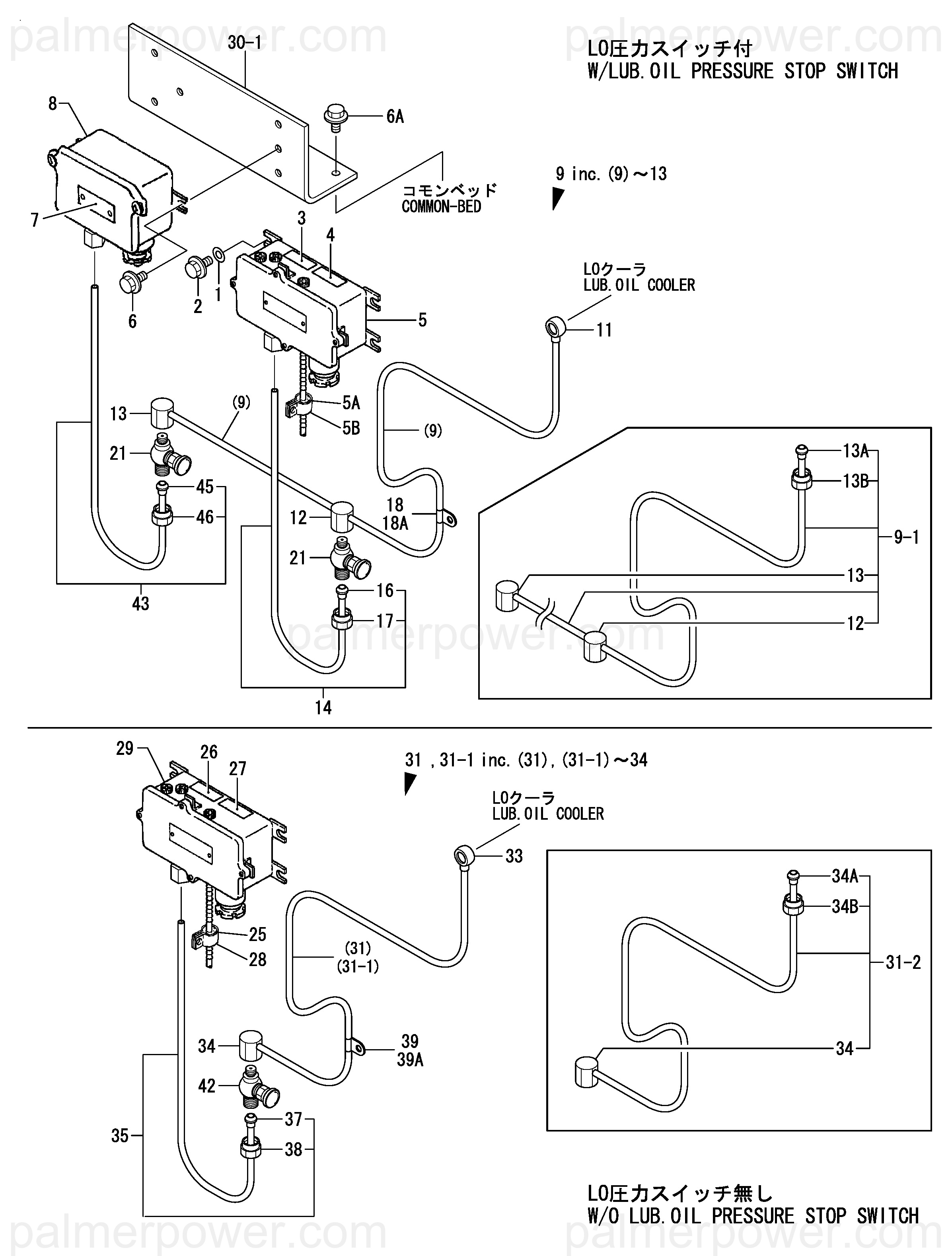

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

YANMAR 126443-65100 Joint, Switch

Schematic Object Key : 31

Product Description : JOINT, SWITCH

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Other Components:

Ref Description Part No.
1 WASHER, 8 22137-080000
2 BOLT, M8X 16 PLATED 26106-080162
3 LABEL, OIL ALARM 42221-551260
4 LABEL, WATER ALARM 42221-551280
5 SWITCH, COMBINATION 46111-550420
5-1 SWITCH, TEMPERATURE 46111-563570
5A RUBBER, CUSHION 41411-000321
5B FITTING, CLAMP 43739-000170
6 BOLT, M8X 16 PLATED 26106-080162
6A BOLT, M8X 16 PLATED 26106-080162
7 LABEL, STOP OIL 42221-551270
8 SWITCH, PRESSURE 46111-563740
9 JOINT, SWITCH 126443-65111
9-1 JOINT, SWITCH 126443-65112
11 JOINT, PIPE 6-12 23341-060000
12 JOINT, 3-WAY 43580-000530
13 JOINT, 2-WAY 43580-550900
13A JOINT, 6 23311-060001
13B NUT, CAP 6 23821-060001
14 JOINT,SWITCH 126443-65121
14A JOINT,SWITCH 43711-573060
16 JOINT, 6 23311-060001
17 NUT, CAP 6 23821-060001
18 CLAMP, A6X 6 23297-060061
18A CLAMP, A6X 8 23297-060081
19 SHIM, T=0.25 43400-550320
20 SHIM, T=0.5 43400-550330
21 VALVE, NEEDLE 43600-006951
22 PIPE, 6X1.2 23041-060000
23 JOINT, 6 23311-060001
24 NUT, CAP 6 23824-060001
25 RUBBER, CUSHION 41411-000321
26 LABEL, STOP OIL 42221-551270
27 LABEL, SWITCH 42221-551290
28 FITTING, CLAMP 43739-000170
29 SWITCH, TEMPERATURE 46111-563610
30-1 BRACKET 46150-573710
31 JOINT, SWITCH 126443-65100
31-1 JOINT, SWITCH 126443-65101
31-2 JOINT, SWITCH 126443-65102
33 JOINT, PIPE 6-12 23341-060000
34 JOINT, 2-WAY 43580-550900
34A JOINT, 6 23311-060001
34B NUT, CAP 6 23821-060001
35 JOINT, SWITCH 126443-65120
35-1 JOINT,SWITCH 126443-65121
35A JOINT,SWITCH 43711-573060
37 JOINT, 6 23311-060000
37-1 JOINT, 6 23311-060001
38 NUT, CAP 6 23821-060000
38-1 NUT, CAP 6 23821-060001
39 CLAMP, A6X 6 23297-060061
39A CLAMP, A6X 8 23297-060081
40 SHIM, T=0.25 43400-550320
41 SHIM, T=0.5 43400-550330
42 VALVE, NEEDLE 43600-006951
43 JOINT, SWITCH 126443-65132
43A JOINT, SWITCH 43711-573070
45 JOINT, 6 23311-060001
46 NUT, CAP 6 23821-060001
47 RETAINER 135410-39520
48 RETAINER 135410-39520
