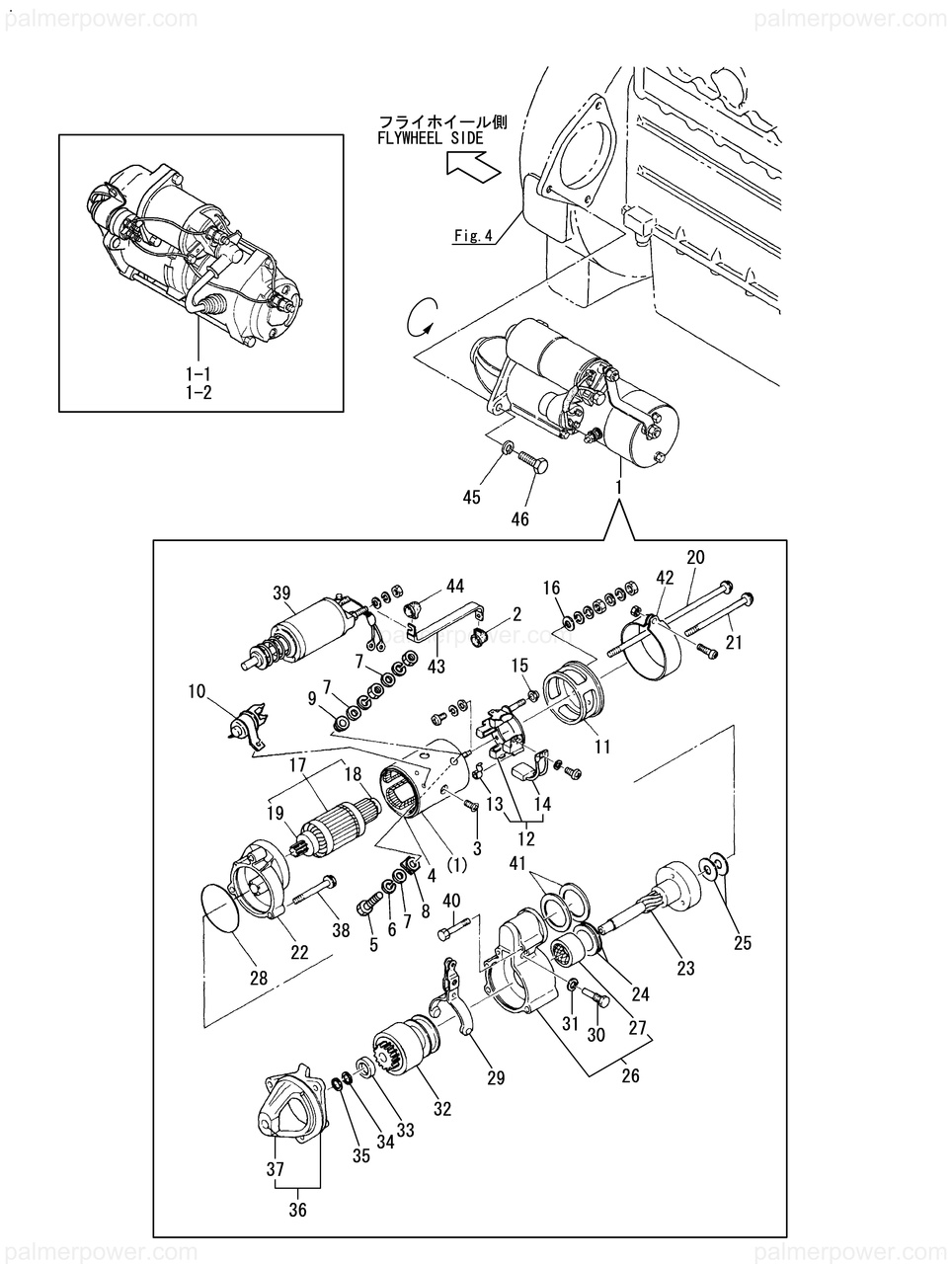

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.
Schematic Object Key : 1
Product Description : STARTER
Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.
Other Components:
| Ref | Description | Part No. |
|---|---|---|
| 1 | STARTER | 126450-77020 |
| 1-1 | STARTER | 126650-77040 |
| 1-2 | STARTER, 6KW | 126650-77041 |
| 2 | CAP | X410105900 |
| 3 | SCREW | X500008300 |
| 4 | FILD COIL | X131607700 |
| 5 | BOLT | X501018700 |
| 6 | NUT | X502200600 |
| 7 | WASHER | X503002110 |
| 8 | IF BUSING | X404104600 |
| 9 | IF BUSING | X404104700 |
| 10 | RELAY | X0590011085 |
| 11 | BRACKET | X224013910 |
| 12 | HOLDER W/BRUSH | X133103200 |
| 13 | SPRING, BRUSH | X525002200 |
| 14 | BRUSH | X266005700 |
| 15 | IF BUSING | X404106000 |
| 16 | WASHER | X403005700 |
| 17 | ARMATURE ASSY | X132006101 |
| 18 | BALL BEARING | X620600500 |
| 19 | BALL BEARING | X620600540 |
| 20 | BOLT | X501021380 |
| 21 | BOLT | X501021370 |
| 22 | HOUSING, GEARS | X224500201 |
| 23 | SHAFT | X244100100 |
| 24 | SHIM | X503105200 |
| 25 | SHIM | X503105100 |
| 26 | BRACKET | X224405000 |
| 27 | BEARING | X262009300 |
| 28 | O-RING | X641402800 |
| 29 | LEVER ASSY | X137203500 |
| 30 | BOLT | X501021400 |
| 31 | LOCK PLATE | X305102300 |
| 32 | PINION ASSY | X136102700 |
| 33 | STOPPER | X366101900 |
| 34 | RITEANER | X522101000 |
| 35 | RING | X505804100 |
| 36 | CASE | X224601601 |
| 37 | BEARING | X262009600 |
| 38 | BOLT | X501021310 |
| 39 | SWITCH ASSY. | X135008920 |
| 40 | BOLT | X501019020 |
| 41 | D-PLATE | X300111600 |
| 42 | BAND ASSY | X133801600 |
| 43 | BAR ASSY | X242514200 |
| 44 | CAP | X410103000 |
| 45 | WASHER, SPRING 14 | 22217-140000 |
| 46 | BOLT, M14X 35 PLATED | 26156-140352 |
