YANMAR 126613-02400 Metal, Camshaft A

Write a Review
$54.36
SKU:
126613-02400
Schematic Object Key:
30

YANMAR 126613-02400 Metal, Camshaft A

$54.36

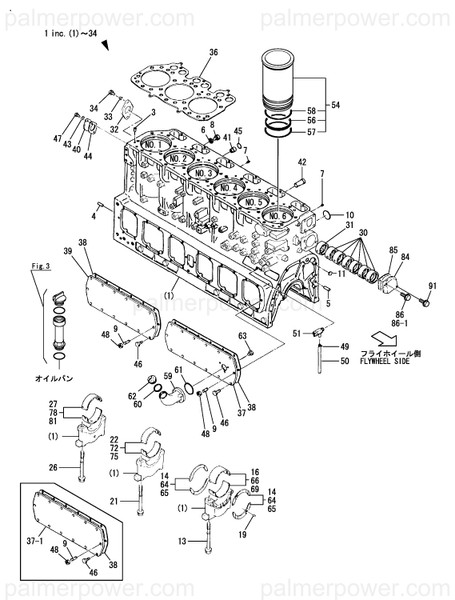

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

YANMAR 126613-02400 Metal, Camshaft A

Schematic Object Key : 30

Product Description : METAL, CAMSHAFT 126613-02400

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Other Components:

Ref Description Part No.
1 BLOCK ASSY, CYLINDER 726677-01561
3 PIN, PARALLEL M10X25 22312-100250
4 PIN, PARALLEL M10X32 22312-100320
5 PIN, PARALLEL M12X36 22312-120360
6 GASKET, 12X1.0 23414-120016
7 PLUG, R01 23876-010000
8 PLUG, 12 23887-120002
9 STUD, M8X 16 26216-080162
10 PLUG 50 27231-500000
11 PLUG, 22 27241-220000
13 BOLT 126650-02070
14 METAL,THRUST 126650-02190
16 METAL ASSY, MAIN 126625-02450
19 PIN, PARALLEL M6X 8 22312-060080
21 BOLT 126650-02070
22 METAL ASSY, MAIN 126625-02460
26 BOLT 126650-02070
27 METAL ASSY, MAIN 126625-02470
30 METAL, CAMSHAFT 126613-02400
31 METAL, CAMSHAFT 126613-02410
32 METAL, CAMSHAFT 126650-02420
32-1 BEARING,THRUST,CAM 126650-02421
33 WASHER, SPRING 10 22217-100000
34 BOLT, M10X 22 PLATED 26106-100222
34-1 BOLT, M10X 25 PLATED 26106-100252
35 O-RING, 1AP41.0 24311-000410
36 GASKET, HEAD 126613-01353
37 COVER, SIDE A 126630-01400
37-1 COVER, BLOCK 126650-01420
38 GASKET, COVER 126650-01411
39 COVER, BLOCK 126650-01420
40 COVER 126630-01580
41 CONNECTOR 123672-01850
42 PIPE 126650-01860
43 WASHER, SPRING 8 22217-080000
44 GASKET, 21X0.5 23424-210000
45 O-RING, 4DP29.0 24316-000290
46 BOLT, M8X 16 PLATED 26106-080162
47 BOLT, M8X 18 PLATED 26106-080182
47-1 BOLT, M8X 20 PLATED 26106-080202
47-2 BOLT, M8X 16 PLATED 26106-080162
48 NUT, M8 26366-080002
49 CLAMP, 17 23010-017000
50 PIPE, 12X 500 23061-120500
51 COCK ASSY, 3/8 43600-500311
54 LINER ASSY, CYLINDER 726677-01860
56 GASKET, LINER 144626-01310
57 GASKET, LINER 144626-01290
58 O-RING 144626-01322
59 FEEDER, OIL 128610-01660
60 GASKET 101704-01760
61 O-RING 2 G-70.0 24322-000700
62 CAP, OIL 39 24798-390000
63 BOLT, M8X 14 PLATED 26106-080142
64 METAL,THRUST 0.25 126650-02340
65 METAL,THRUST 0.5 126650-02350
66 METAL, MAIN 0.25 US 126625-02500
69 METAL, MAIN 0.50 US 126625-02550
72 MAIN METAL U.S 0.25 126625-02510
75 METAL, MAIN 0.50 US 126625-02560
78 MAIN METAL U.S 0.25 126625-02520
81 METAL, MAIN 0.50 US 126625-02570
84 COVER 126630-01791
85 GASKET 126650-09023
86 BOLT, M10X 25 PLATED 26106-100252
86-1 BOLT, M10X 30 PLATED 26106-100302
90 PLUG 45 27231-450000
91 BOLT, M10X 35 PLATED 26106-100352
