YANMAR 126616-01332 Gasket, Head

Write a Review
$227.57
SKU:
126616-01332
Schematic Object Key:
24-2

YANMAR 126616-01332 Gasket, Head

$227.57

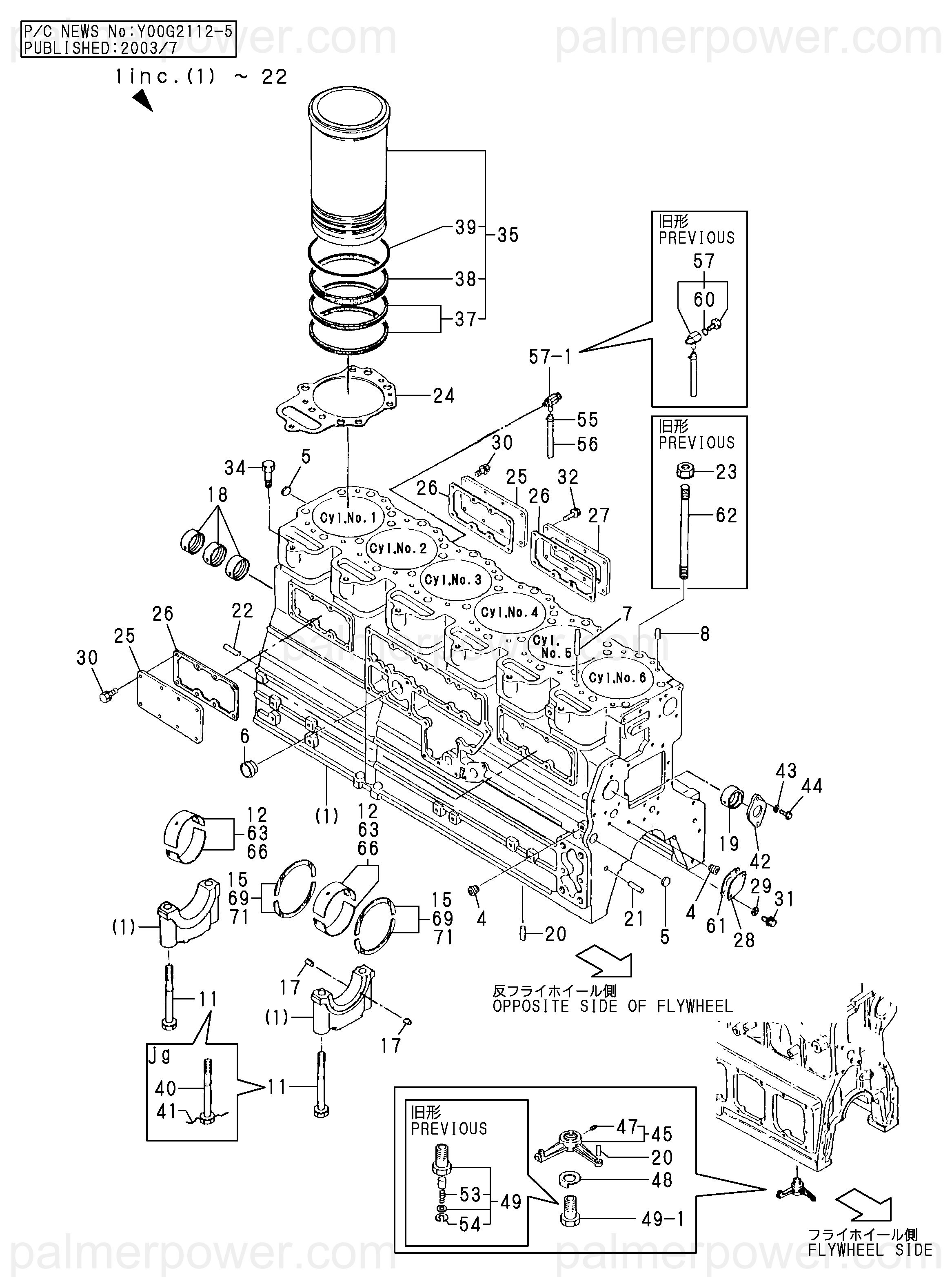

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

YANMAR 126616-01332 Gasket, Head

Schematic Object Key : 24-2

Product Description : GASKET, HEAD

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Other Components:

Ref Description Part No.
1 BLOCK ASSY, CYLINDER 726616-01560-C
1-1 BLOCK ASSY, CYLINDER 726616-01561-C
1-2 BLOCK ASSY, CYLINDER 726616-01562
4 PLUG, R01 23871-010000
5 PLUG 30 27241-300000
6 PIPE, CONNECTING 126616-01850
7 CONECTING PIN 138613-11740
8 PIN, PARALLEL M10X20 22312-100200
11 BOLT 126616-02070
11-1 BOLT 126616-02071
12 MAIN BEARING 126616-02180
12-1 METAL ASSY, MAIN 126616-02181
15 METAL, THRUST 126616-02190
17 PIN, PARALLEL M6X 8 22312-060080
18 BUSH, CAMSHAFT 126650-02400
19 BUSH, CAMSHAFT 126650-02410
20 PIN, PARALLEL M6X12 22312-060120
21 PIN, PARALLEL M10X28 22312-100280
22 PIN, PARALLEL M12X36 22312-120360
23 NUT, CYLINDER HEAD 144626-01220
24 GASKET, HEAD 126616-01330
24-1 GASKET, HEAD 126616-01331
24-2 GASKET, HEAD 126616-01332
25 COVER 126616-01440
26 PACKING, COVER 126616-01450
26-1 PACKING, COVER 126616-01451
26-2 GASKET 126616-01452
27 COVER 126616-01461
28 COVER 126630-01580
29 WASHER, SPRING 8 22217-080000
30 BOLT, M8X 16 PLATED 26106-080162
31 BOLT, M8X 18 PLATED 26106-080182
32 BOLT, M8X 20 PLATED 26106-080202
33 BOLT, M8X 16 PLATED 26116-080162
34 BOLT, M12X 70 PLATED 26116-120702
35 LINER ASSY, CYLINDER 726674-01850-A
35-1 LINER ASSY, CYLINDER 726674-01851-A
37 GASKET, LINER 144626-01290
38 GASKET, LINER 144626-01310
39 O-RING 144626-01321
39-1 O-RING 144626-01322
40 BOLT 126616-02081
41 WIRE, 2.0 22451-200000
42 METAL, CAMSHAFT 126650-02420
43 WASHER, SPRING 10 22217-100000
44 BOLT, M10X 22 PLATED 26106-100222
45 NOZZLE ASSY, COOLING 126616-39350
47 SCREW, M5X 5 26911-050052
48 WASHER 144626-39370
49 VALVE, CHECK 148616-39901
49-1 BOLT, JOINT 125310-73161
53 SPRING, DELIVERY 124550-51320
54 RING, 15 22252-000150
55 CLAMP, 17 23010-017000
56 PIPE, 12X 500 23061-120500
57 COCK 43600-500310
57-1 COCK ASSY, 3/8 43600-500311
60 O-RING, 1AP7.0 24311-000070
61 PACKING, OVAL 23427-210000
62 BOLT, HEAD M18 126616-01200
63 MAIN METAL 0.25US 126616-02300
63-1 MAIN BEARING 0.25US 126616-02301
66 METAL ASSY, MAIN .50 126616-02310
66-1 MAIN METAL 0.5US 126616-02311
69 THRUST BEARING 126616-02340
71 METAL, THRUST .50 OS 126616-02350
