YANMAR 126616-44120 Core Assy

Write a Review
$4,250.34
SKU:
126616-44120
Schematic Object Key:
9

YANMAR 126616-44120 Core Assy

$4,250.34

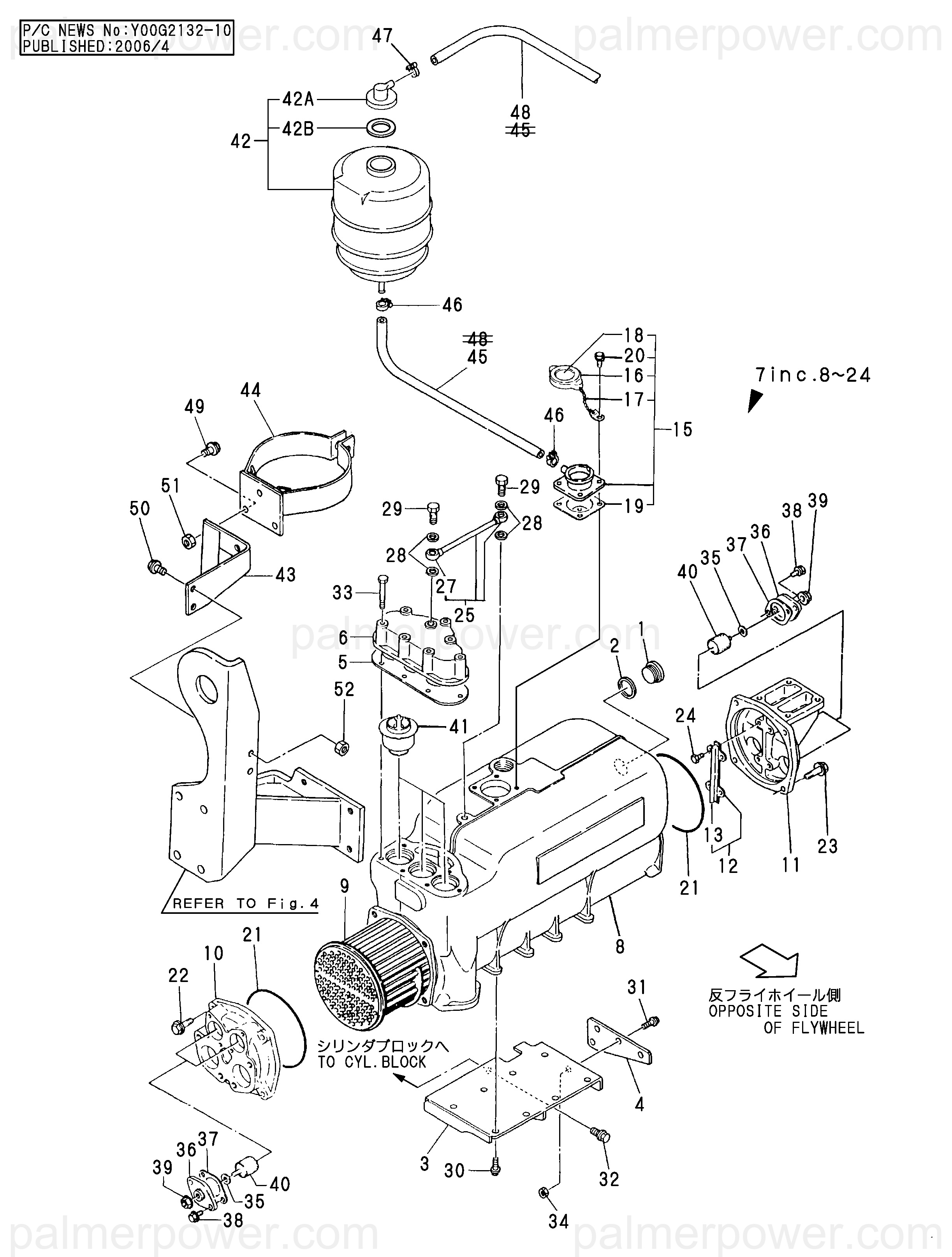

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

YANMAR 126616-44120 Core Assy

Schematic Object Key : 9

Product Description : CORE ASSY

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Other Components:

Ref Description Part No.
1 PLUG, M33X1.5 127610-11750
2 GASKET 127610-11760
3 BRACKET 126616-44300
4 BOARD 126616-44320
5-1 GASKET 126616-44361
6 COVER, THERMOSTAT 126616-44370
7 COOLER ASSY, WATER 126616-44500
8 BODY, COOLER 126616-44020
9 CORE ASSY 126616-44120
10 COVER 126635-44420
11 COVER 126635-44431
12 PLATE ASSY 126635-44531
13 SEAL 126635-44540
15 FILLER ASSY 120445-44600
16 CAP, RADIATOR 123682-44210
17 CHAIN 123682-44220
18 LABEL, CAUTION 120445-44620
19 GASKET 120445-44640
20 BOLT, M8X 14 PLATED 26106-080142
21 O-RING, 1AP150.0 24311-001500
22 BOLT, M10X 35 PLATED 26106-100352
23 BOLT, M10X 35 PLATED 26106-100352
24 BOLT, M8X 12 PLATED 26203-080122
25 PIPE ASSY, AIR VENT 126616-44660
27 JOINT, PIPE 6-12 23344-060000
28 GASKET, 12X1.0 23414-120000
29 BOLT, JOINT 6 23854-060000
30 BOLT, M8X 18 PLATED 26106-080182
31 BOLT, M8X 20 PLATED 26106-080202
32 BOLT, M10X 18 PLATED 26106-100182
33 BOLT, M8X 55 PLATED 26106-080552
34 NUT, M8 26366-080002
35 GASKET 123210-09310
36 FLANGE 125110-09320
37 GASKET 125110-09330
38 BOLT, M8X 20 PLATED 26106-080202
39 NUT, M8 26366-080002
40 ZINC, NUT30X40 27200-300400
41 THERMOSTAT, 76.5-90 126634-48180
42 TANK, SUB 148616-44510
42A CAP 121850-44850
42B GASKET 121850-44860
43 PLATE 126616-44550
44 BRACKET 148616-44551
45 PIPE, OVERFLOW 148616-44560
46 BAND 124460-59050
47 CLAMP, 9 23010-009000
48 PIPE, 7X 700 23061-070700
49 BOLT, M8X 12 PLATED 26106-080122
50 BOLT, M8X 20 PLATED 26106-080202
51 NUT, M8 26366-080002
52 NUT, M8 26366-080002
