YANMAR 126616-61730 Spring, Idle

Write a Review
$16.20
SKU:
126616-61730
Schematic Object Key:
57

YANMAR 126616-61730 Spring, Idle

$16.20

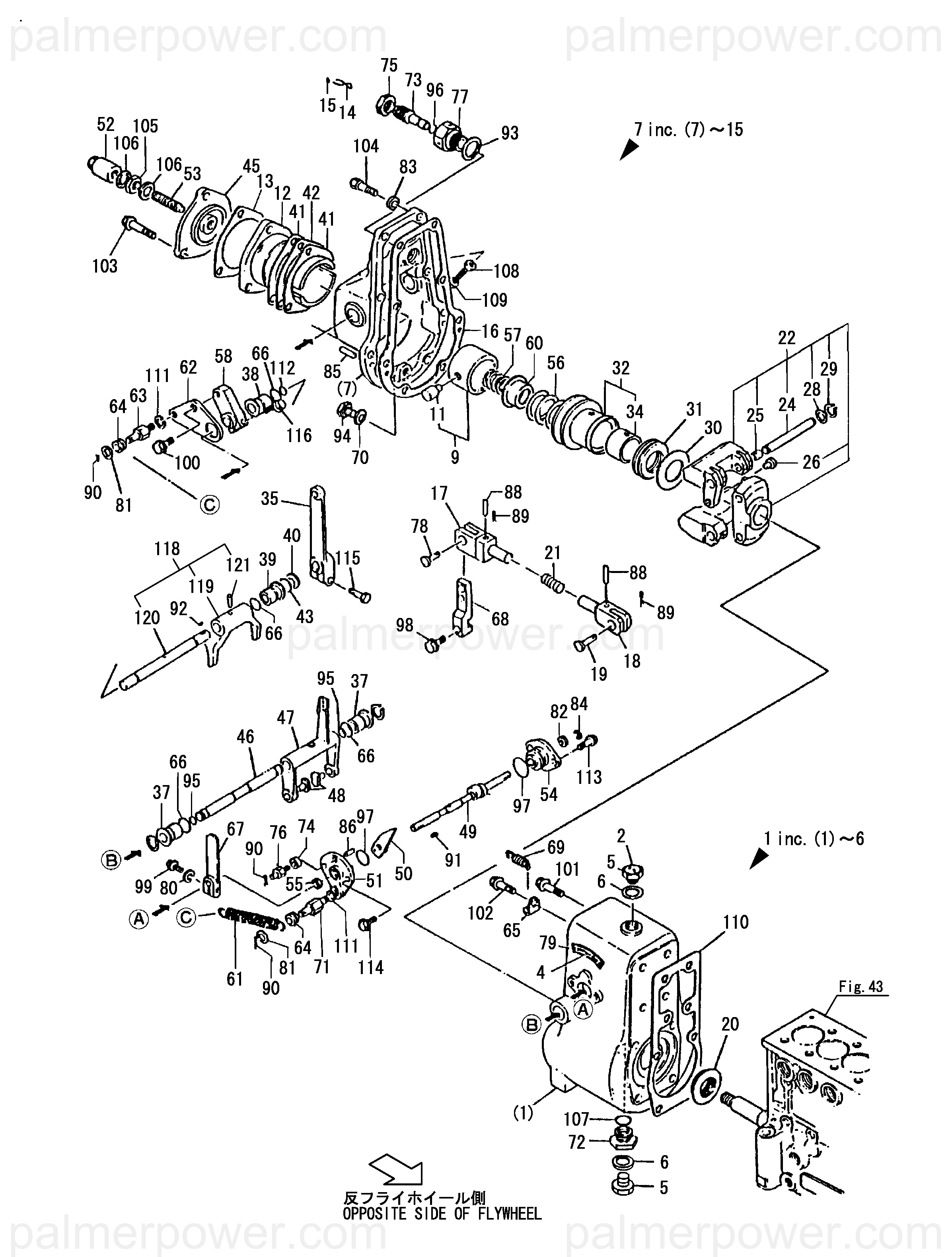

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

YANMAR 126616-61730 Spring, Idle

Schematic Object Key : 57

Product Description : SPRING 126616-61730

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Other Components:

Ref Description Part No.
1 CASE ASSY, GOVERNOR 726616-61491
2 LABEL 144626-51930
4 PLATE 144626-61840
5 PLUG, 16 23887-160002
6 SEAL WASHER 16 43400-500500
6-1 WASHER, SEAL 16 22190-160002
7 COVER ASSY 726616-61640
9 RETAINER ASSY,SPRING 125613-61350
11 STOPPER 135210-61380
12 GUIDE 144626-61450
13 GASKET, GUIDE 144626-61461
14 WIRE, 1.0 22451-100000
15 LEAD 135210-61090
16 GASKET, CASE COVER 144626-61071
17 LINK, A 126616-61140
18 LINK, B 126616-61160
19 PIN, LINK B 126616-61180
20 SEAL, OIL 144626-61180
21 SPRING, LINK 126616-61190
22 WEIGHT ASSY,GOVERNOR 144626-61200
24 PIN, GOVERNOR WEIGHT 135210-61221
25 BUSH, WEIGHT PIN 135210-61230
26 RETAINER, WEIGHT 135210-61240
28 WASHER, 10 22117-100000
29 RING, 10 22242-000100
30 WASHER 140623-61310
31 THRUST BEARING 135210-61320
32 SHIFTER ASSY 148609-61330
34 BUSH, RETAINER 140673-61350
35 LEVER, CONTROL 148816-61420
37 BUSH, 1ST LEVER 144626-61431
38 BUSH, SHAFT 152623-61430
39 BUSH, LEVER SHAFT 144626-61441
40 RETAINER, O-RING 152623-61440
41 PACKING 135600-61460
42 SPACER, GUIDE 148606-61460
43 O-RING 152623-61460
45 COVER, SPRING GUIDE 135210-61480
46 SHAFT,GOVERNOR LEVER 144626-61510
47 LEVER, GOVERNOR 126616-61530
48 RETAINER, 1ST LEVER 135210-61540
49 SHAFT ASSY, LEVER 126616-61560
50 LEVER, STOP 126616-61570
51 BEARING, 2ND LEVER A 148616-61570
52 NUT, CAP 144626-61580
53 SCREW, IDLE SET 148816-61590
54 BEARING, 2ND LEVER B 148616-61640
55 SEAL, VC081404 148616-61650
56 SPRING, GOVERNOR 148616-61720
57 SPRING 126616-61730
58 BRACKET, LEVER 126616-61740
59 BRACKET, LEVER 144626-61740
60 RETAINER, SPRING 148616-61740
61 SPRING 144626-61751
62 LEVER, SPRING 144626-61761
63 BOLT, SPRING A 144626-61771
64 PIECE 144626-61781
65 PLATE, RETURN SPRING 144626-61790
66 O-RING, 1015 144626-61800
67 HANDLE,FUEL SHUT-OFF 135210-61830
68 LINK, RACK CONECTING 126616-61850
69 SPRING, STOP LEVER 126616-61860
70 WASHER, SEAL 144606-61900
70-1 WASHER, SEAL 6 22190-080002
71 BOLT, SPRING B 144626-61900
72 BUSH 126674-61910
73 BOLT, CONTROL 140673-61940
74 RETAINER, STOPPER 126616-61950
75 NUT 140673-61950
76 BOLT 126616-61960
77 GUIDE 140673-61960
78 PIN, GOVERNOR LINK 180110-66410
79 RIVET 137900-91451
80 WASHER 6 22111-060000
81 WASHER, 8 22117-080000
82 WASHER 8 22131-080000
83 WASHER, SPRING 8 22217-080000
84 RING, E- 7 22272-000070
85 PIN, PARALLEL M3X14 22312-030140
86 PIN, PARALLEL M6X12 22312-060120
88 PIN, SPRING 3.0X16 22351-030016
89 COTTER PIN 1.6X15 22411-160150
90 COTTER PIN 2.0X12 22411-200120
91 KEY, WOODRUFF 3X10 22522-030100
92 KEY, WOODRUFF 4X13 22522-040130
93 GASKET, 20X1.0 23414-200000
94 PLUG 8 23887-080002
95 O-RING, 1AP8.0 24311-000080
96 O-RING, 2P7.0 24312-000070
97 O-RING 2 P-20.0 24312-000200
98 BOLT, M6X 14 PLATED 26106-060142
99 BOLT, M6X 16 PLATED 26106-060162
100 BOLT, M8X 16 PLATED 26106-080162
101 BOLT, M8X 18 PLATED 26106-080182
102 BOLT, M8X 22 PLATED 26106-080222
103 BOLT, M8X 30 PLATED 26106-080302
104 BOLT, M8X 20 PLATED 26116-080206
105 NUT, LOCK M12 26757-120002
106 SEAL WASHER 12S 43400-500450
106-1 WASHER, SEAL 12 22190-120002
107 O-RING 122710-51360
108 LOCK NUT 135210-51610
109 SCREW, SPEED ADJUST 135210-61080
110 GASKET 144626-61050
111 WASHER 8 22212-080000
112 O-RING, 1AP8.0 24311-000080
113 BOLT, M6X 16 PLATED 26106-060162
114 BOLT, M6X 16 PLATED 26106-060162
115 BOLT, M6X 22 PLATED 26106-060222
116 BOLT, M6X 25 PLATED 26106-060252
117 LEVER 144626-61470
118 LEVER ASSY, CONTROL 148016-61400
119 LEVER 144626-61470
120 SHAFT, CONTROL LEVER 152623-61420
121 PIN, TAPER 148016-61550
