YANMAR 126617-51880 Pointer

Write a Review
$5.40
SKU:
126617-51880
Schematic Object Key:
2

YANMAR 126617-51880 Pointer

$5.40

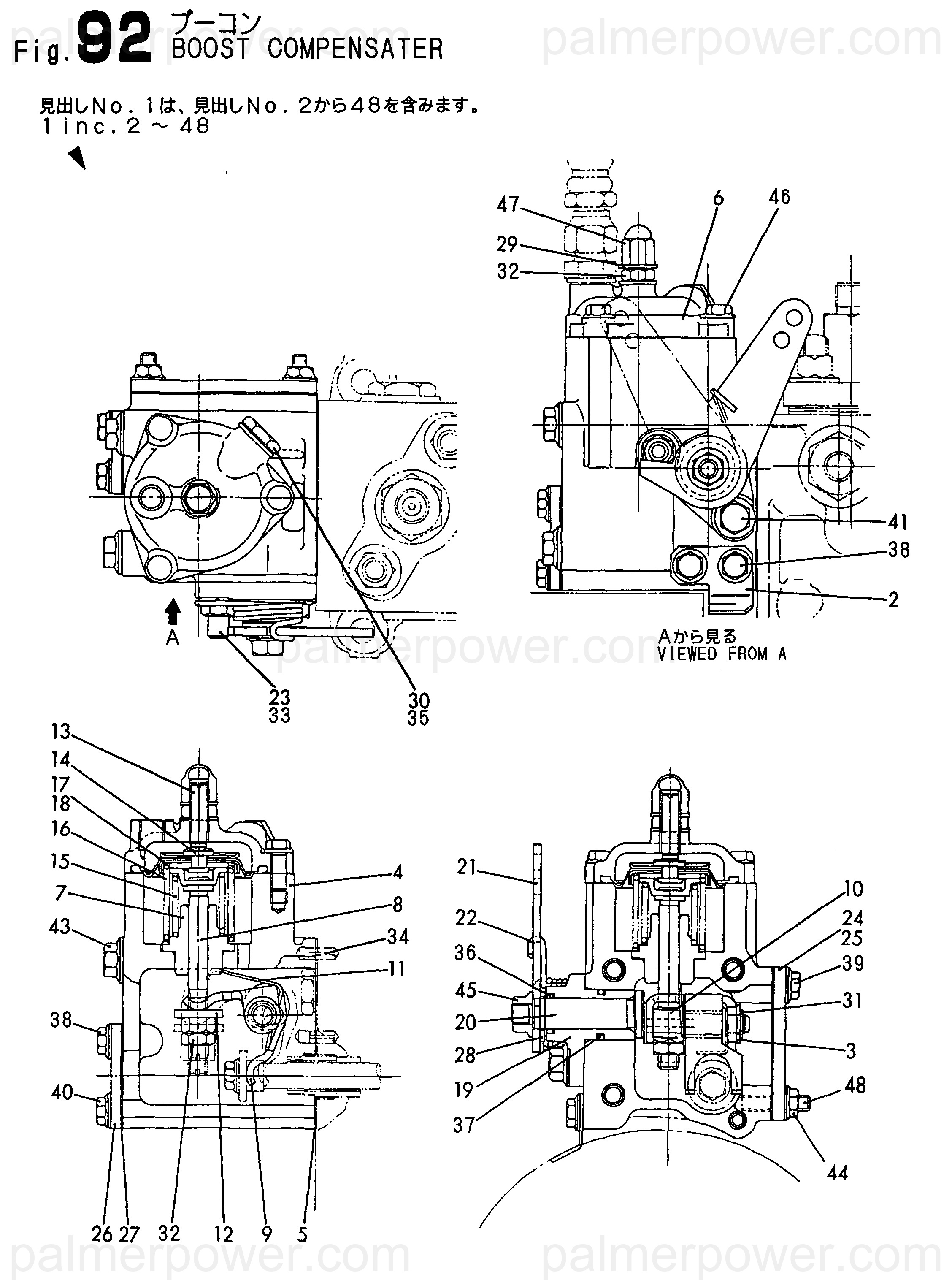

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

YANMAR 126617-51880 Pointer

Schematic Object Key : 2

Product Description : POINTER

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Other Components:

Ref Description Part No.
1 BOOST COMPENSATOR 726617-61390
1-1 COMPENSATOR ASSY 126617-61490
2 POINTER 126617-51880
3 SPACER ASSY 129155-61480
4 CASE, ACTUATOR 126617-61500
5 GASKET 126617-61510
6 CASE 129595-61600
7 BUSH 148688-61610
8 ROD, SLIDER 148688-61620
9 LEVER, SETTING 126617-61630
10 COLLAR 148688-61640
11 SPRING 148688-61650
12 NUT 148688-61660
13 BOLT, ADJUSTER 129595-61670
14 DIAPHRAGM 129595-61680
15 SPRING, DIAPHRAGM 148688-61690
16 SPRING, DIAPHRAGM 148688-61790
17 SHIM, T=0.5 148688-61810
18 SHIM, T=1.0 148688-61820
19 BUSH 148688-61890
20 SHAFT 148688-61900
21 LEVER 126617-61910
22 SPRING, SET 148688-61920
23 PIN 148688-61940
24 COVER 148688-61950
25 GASKET 148688-61960
26 COVER 126617-61970
27 GASKET 126617-61980
28 WASHER, 12 22117-120000
28-1 WASHER 158835-85990
29 WASHER, SEAL 8 22190-080000
30 SEAL WASHER 10S 43400-500430
30-1 WASHER, SEAL 10 22190-100002
31 RING, E- 6 22272-000060
32 NUT, LOCK M8 26757-080002
33 WASHER, 8 22287-080000
34 PIN, SPRING 5.0X10 22351-050010
35 PLUG, 10 23887-100002
36 O-RING, 1AP12.0 24311-000120
37 O-RING, 1AP16.0 24311-000160
38 BOLT, M6X 10 PLATED 26106-060102
39 BOLT, M6X 14 PLATED 26106-060142
40 BOLT, M6X 95 PLATED 26106-060952
41 BOLT, M8X 16 PLATED 26106-080162
42 BOLT, M8X 22 PLATED 26106-080222
43 BOLT, M8X 90 PLATED 26106-080902
44 NUT, M6 26366-060002
45 NUT, M8 26366-080002
45-1 NUT, M8 26306-080002
46 BOLT, M6X 18 PLATED 26106-060182
47 NUT, CAP M8 26667-080002
48 STUD 129155-51020
