YANMAR 126630-51810 Support

Write a Review
$13.28
SKU:
126630-51810
Schematic Object Key:
71

YANMAR 126630-51810 Support

$13.28

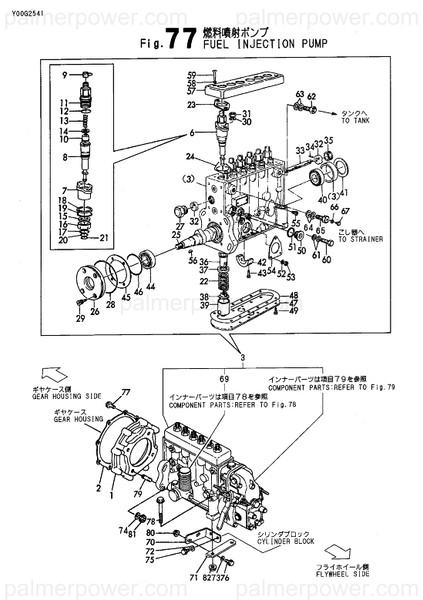

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

YANMAR 126630-51810 Support

Schematic Object Key : 71

Product Description : SUPPORT

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Other Components:

Ref Description Part No.
1 BRACKET 126634-01800
2 GASKET, MOUNT 126630-01810
2-1 GASKET, MOUNT 126630-01811
2-2 GASKET, MOUNT 126630-01812
3 PUMP ASSY, INJECTION 126634-51010
6 PLUNGER W/BARREL 726634-51600
6-1 PLUNGER W/BARREL 726634-51601
7 FLANGE X1341311020
8 PLANGER ASSY. 126634-51100
9 CAP X0299214020
10 VALVE ASSY. 126634-51390
11 HOLDER, D. V. X1341162400
12 O-RING X0296322070
13 SPRING 126634-51330
14 GASKET X1341150100
15 WASHER X0293020140
16 DEFLECTOR X1341350000
16-1 DEFLECTOR X1341350200
17 SNAP RING X0296020010
18 RING X1341370000
18-1 RING X1341370100
19 O-RING X0296329030
20 O-RING X0296315020
21 O-RING X0296315020
22 SPRING, PLUNGER 126630-51160
23 WASHER X1341320300
24 SHIM X0299984040
25 CAMSHAFT X1343711700
26 COVER X1343160200
27 CAP X1343280500
28 O-RING X0296390020
29 SCREW X0290506360
30 WASHER, SPRING X0141110440
31 NUT X0130210040
32 BUSH X1340010000
33 RACK, CONTROL X1342560000
34 PIN X0240302030
35 BUSH X1342220000
36 SLEEVE, CONTROL X1342410020
37 SPRING SEAT X1342160000
38 SPRING SEAT X1342170000
39 TAPPET X1342000020
40 BEARING X0166502230
41 SHIM X0299983100
42 BEARING, CENTER X1343060000
43 BOLT X0201062040
44 BEARING X0166502230
45 SHIM X0299984030
46 O-RING X0296355010
47 COVER X1340430800
48 GASKET X1340420100
49 SCREW X0122061640
50 PLUG X1340450100
51 GASKET X0265242940
52 WASHER, SPRING X0141106440
53 NUT X0130206040
54 GASKET X1310410500
55 PLUG X1340470000
56 WOODRUFF KEY X0258051910
57 COVER X1344160100
58 LOCK WASHER X0145306540
59 SCREW X0213063010
60 EYE BOLT X0297310120
61 GASKET X0265101340
62 BOLT, PIPE JOINT 123672-59490
63 GASKET 124450-01980
64 GASKET, 14X1.0 23414-140018
65 BOLT 123672-59170
66 SEAL WASHER 26190-060002
67 PLUG 111154-51900
69 PUMP ASSY, FUEL FEED 126652-52010
70 SUPPORT 126634-51800
70-1 SUPPORT 126630-51800
71 SUPPORT 126630-51810
72 WASHER, SPRING 8 22217-080000
73 WASHER, SPRING 8 22217-080000
74 WASHER, SPRING 10 22217-100000
75 BOLT, M8X 16 PLATED 26106-080162
76 BOLT, M8X 18 PLATED 26106-080182
77 BOLT, M8X 20 PLATED 26106-080202
77A BOLT, M8X 18 PLATED 26106-080182
78 BOLT, M10X 90 PLATED 26106-100902
79 STUD, M10X 35 26216-100352
80 NUT, M8 26366-080002
81 NUT, M10 26706-100002
82 NUT, M10 26706-100002
