YANMAR 126630-61550 Governor Assy

Write a Review
$914.30
SKU:
126630-61550
Schematic Object Key:
69

YANMAR 126630-61550 Governor Assy

$914.30

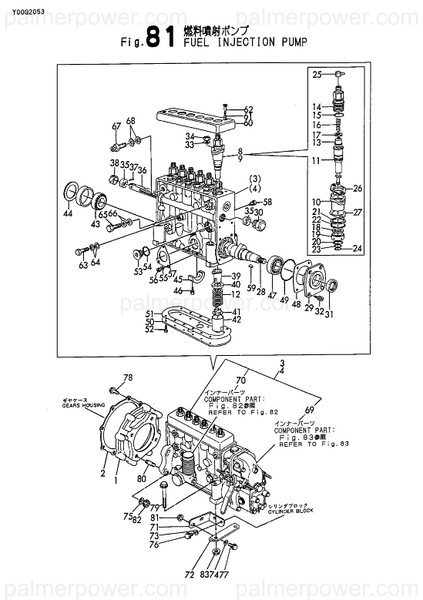

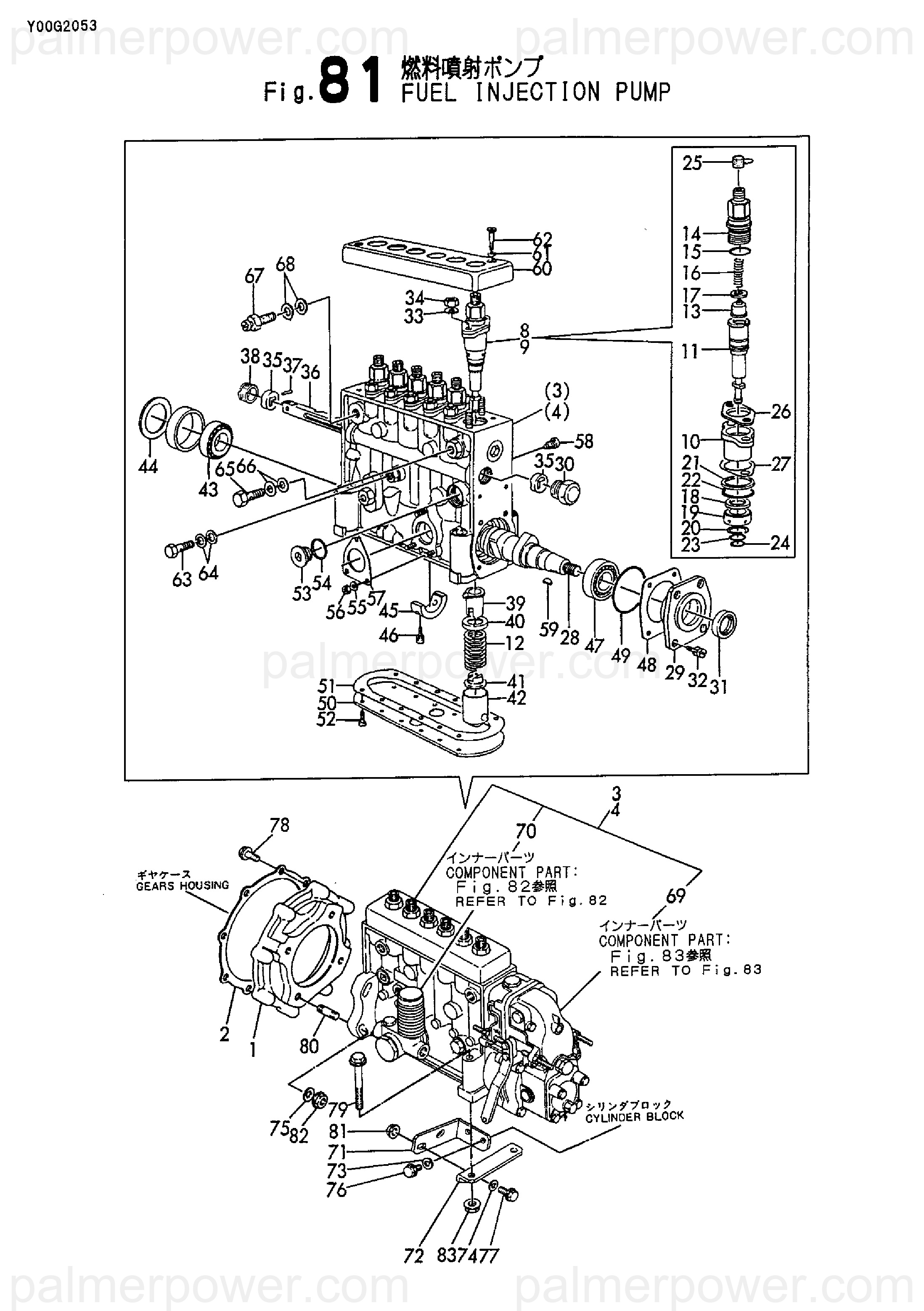

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

YANMAR 126630-61550 Governor Assy

Schematic Object Key : 69

Product Description : GOVERNOR ASSY

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Other Components:

Ref Description Part No.
1 BRACKET 126630-01800
1A BRACKET 126630-01850
2 GASKET, MOUNT 126630-01810
2-1 GASKET, MOUNT 126630-01811
4 PUMP ASSY, INJECTION 126635-51010
4-1 PUMP ASSY, INJECTION 126634-51010
9 PLUNGER W/BARREL 726635-51600
9-1 BLOCK ASSY, PLUNGER 726635-51601
9-2 PLUNGER W/BARREL 726634-51601
10 FLANGE X1341311020
11 PLUNGER ASSY. 126630-51100
11-1 PLANGER ASSY. 126634-51100
12 SPRING, PLUNGER 126630-51160
13 VALVE ASSY. 126630-51390
13-1 VALVE ASSY. 126634-51390
14 HOLDER X1341160820
14-1 HOLDER, D. V. X1341162400
15 O-RING X0296322070
16 SPRING 126630-51330
16-1 SPRING 126634-51330
17 GASKET X1341150100
18 WASHER X0293020140
19 DEFLECTOR X1341350000
19-1 DEFLECTOR X1341350200
20 SNAP RING X0296020010
21 RING X1341370000
21-1 RING X1341370100
22 O-RING X0296329030
23 O-RING X0296315020
24 O-RING X0296315020
25 CAP X0299214020
26 WASHER X1341320300
27 SHIM ASSY(60 SHEETS) X0299984170
27-1 SHIM X0299984040
28 CAMSHAFT X1343711700
29 COVER X1343163000
29-1 COVER X1343160200
30 CAP X1343280500
31 SEAL, OIL X0267125010
31-1 O-RING X0296390020
32 SCREW X0290506360
33 WASHER, SPRING X0141110440
34 NUT X0130210040
35 BUSH X1340010000
36 RACK, CONTROL X1342560000
37 PIN X0240302030
38 BUSH X1342220000
39 SLEEVE, CONTROL X1342410021
39-1 SLEEVE, CONTROL X1342410020
40 SPRING SEAT X1342160000
41 SPRING SEAT X1342170000
42 TAPPET X1342000020
43 BEARING X0166502230
44 SHIM X0299983100
45 BEARING, CENTER X1343060100
45-1 BEARING, CENTER X1343060000
46 BOLT X0201062040
47 BEARING X0166502230
48 SHIM X0299984030
49 O-RING X0296355010
50 COVER X1340430800
51 GASKET X1340420100
52 SCREW X0122061640
53 PLUG X1340450100
54 GASKET X0265242940
55 WASHER, SPRING X0141106440
56 NUT X0130206040
57 GASKET X1310410500
58 PLUG X1340470000
59 WOODRUFF KEY X0258051910
60 COVER X1344160100
61 LOCK WASHER X0145306540
62 SCREW X0213063010
63 EYE BOLT X0297310120
64 GASKET X0265101340
65 EYE BOLT X0297314680
66 GASKET X0293314230
66-1 GASKET X0299114230
67 VALVE, OVERFLOW X1314241520
68 GASKET X0293314230
69 GOVERNOR ASSY 126630-61550
70 PUMP ASSY, FUEL FEED 126652-52010
71 SUPPORT 126630-51800
72 SUPPORT 126630-51810
73 WASHER, SPRING 8 22217-080000
74 WASHER, SPRING 8 22217-080000
75 WASHER, SPRING 10 22217-100000
76 BOLT, M8X 16 PLATED 26106-080162
77 BOLT, M8X 18 PLATED 26106-080182
78 BOLT, M8X 20 PLATED 26106-080202
79 BOLT, M10X 90 PLATED 26106-100902
80 STUD, M10X 35 26216-100352
81 NUT, M8 26366-080002
82 NUT, M10 26706-100002
83 NUT, M10 26706-100002
