YANMAR 126650-49550 Bend

Write a Review
$360.36
SKU:
126650-49550
Schematic Object Key:
15

YANMAR 126650-49550 Bend

$360.36

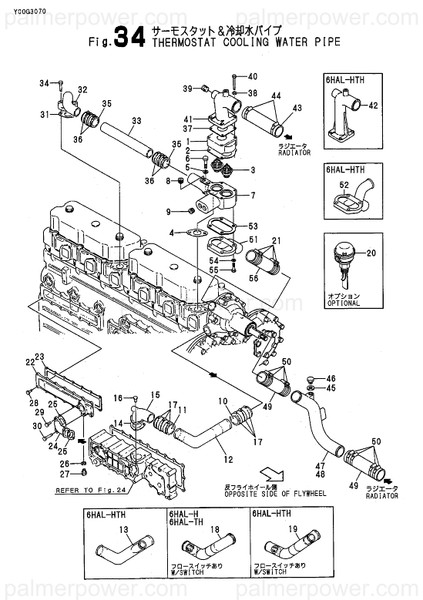

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

YANMAR 126650-49550 Bend

Schematic Object Key : 15

Product Description : BEND

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Other Components:

Ref Description Part No.
1 COVER, THERMOSTAT 126650-48110
2 GASKET 126650-48161
3 THERMOSTAT, 71-85 126630-48170
4 GASKET, HEAD 126650-48171
5 WASHER, 12 22137-120000
6 BOLT, M12X 50 PLATED 26116-120502
7 BODY, THERMOSTAT 41641-550760
8 PLUG, R03 23876-030000
9 PLUG, R04 23876-040000
10 HOSE, RUBBER 126630-49430
11 HOSE, RUBBER 126630-49430
12 PIPE, WATER 126650-49500
14 GASKET, COOLER 126650-49541
15 BEND 126650-49550
16 BOLT, M8X 18 PLATED 26106-080182
17 CLIP, HOSE 71 43730-552171
18 PIPE, WATER 41649-551570
20 SWITCH, FLOW 46111-554480
21 CLIP, HOSE 61 43730-552161
22 COVER 126650-49700
23 GASKET 126650-49711
24 BEND 126650-49720
25 GASKET, BEND 126650-49731
26 GASKET, 17X1.0 23414-170022
27 PLUG G3/8,HEX. 23897-030002
28 BOLT, M8X 18 PLATED 26106-080182
29 BOLT, M8X 22 PLATED 26106-080222
30 BOLT, M8X 50 PLATED 26106-080502
31 GASKET, HEAD 126650-48171
32 BEND 126650-49400
33 PIPE, WATER 126650-49410
34 BOLT, M12X 50 PLATED 26116-120502
35 PIPE 43720-551630
36 CLIP, HOSE 61 43730-552161
37 GASKET 126650-48141
38 WASHER, 8 22137-080000
39 PLUG, R04 23876-040000
40 BOLT, M8X 65 PLATED 26106-080652
41 BEND 41649-551180
43 RUBBER HOSE 43720-551540
44 CLIP, HOSE 71 43730-552171
45 GASKET, 17X1.0 23414-170000
46 PLUG, G3/8 23894-030002
47 PIPE, WATER 41649-553890
49 PIPE 43720-553260
50 CLIP 81,HOSE 43730-552181
51 BEND 126650-48130
53 GASKET 126650-48161
54 WASHER, 8 22137-080000
55 BOLT, M8X 32 PLATED 26106-080322
56 PIPE 43720-551630
