YANMAR 126662-18031 Turbocharger,Td08H

Write a Review
$4,933.20
SKU:
126662-18031
Schematic Object Key:
1B-2

YANMAR 126662-18031 Turbocharger,Td08H

$4,933.20

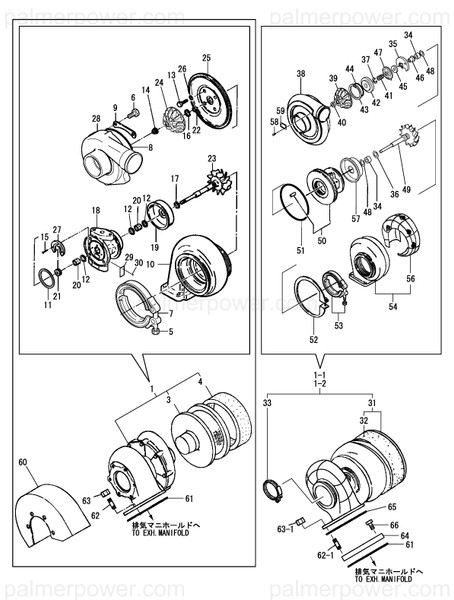

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

YANMAR 126662-18031 Turbocharger,Td08H

Schematic Object Key : 1B-2

Product Description : TURBINE ASSY 126662-18031

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Other Components:

Ref Description Part No.
1 TURBINE ASSY 126665-18040
1-1 TURBINE ASSY 126662-18030
1-2 TURBINE ASSY 126662-18080
1A TURBINE ASSY 126665-18080
1A-1 TURBINE ASSY 126662-18030
1A-2 TURBINE ASSY 126662-18080
1B TURBINE ASSY 126665-18120
1B-1 TURBINE ASSY 126662-18030-B
1B-2 TURBINE ASSY 126662-18031
1C TURBINE ASSY 126665-18160
1C-1 TURBINE ASSY 126662-18030-J
1C-2 TURBINE ASSY 126662-18031
1D TURBINE ASSY 126665-18200
1D-1 TURBINE ASSY 126662-18030-F
1D-2 TURBINE ASSY 126662-18031
3 SILENCER 127695-18520
3-1 SILENCER 126625-18550
4 FILTER, PRE 127695-18530
5 LOCK NUT 940058-00000
6 BOLT 940062-70810
7 BAND 940073-80460
8 O-RING 940306-90069
9 CLAMP 941098-70000
10 TURBINE HOUSING 944106-50104
11 RING,SEAL 940042-40009
12 RING RETAINING 940044-60081
13 BOLT 940062-70620
14 LOCK NUT 940076-80012
15 BOLT 940096-40410
16 PISTON PING 940381-80000
17 PISTON RING 940381-80030
18 HOUSING, SENTER 941031-00001
19 SHROUD 941036-60004
20 BEARING 941039-40001
21 THRUST COLLAR 941080-00001
22 THRUST SPACER 941080-10001
23 WHEEL 944119-40001
24 WHEEL 944179-20015
25 BACKPLATE ASSY 944275-20002
26 WASHER 944320-80001
27 BEARING 944368-60001
28 HOUSING 944321-10040
29 PLATE 940923-60005
30 SCRW 940081-40202
31 SILENCER ASSY 126672-18450
32 CLEANER, PRE 125X910 148616-18360
33 V-CLAMP 126674-18490
34 BEARING 126662-18800
35 BEARING, THRUST 126662-18810
36 RING 126662-18820
37 LINK 126662-18830
38 COVER, COMPRESSOR X4918856330
38-1 COVER, COMPRESSOR X4918851100
39 WHEEL, COMPRESSOR X4918845230
40 LOCK NUT X4913442210
41 SLEEVE X4918842100
42 INSERT X4918822500
43 RING, SNAP X4917423200
44 O-RING X4917422600
45 RING, THRUST X4918842300
46 RING, THRUST X4918842400
47 DEFLECTOR, OIL X4918822210
48 RING, SNAP X4917422300
49 SHAFT &TURBINE WHEEL X4918830130
50 BEARING HOUSING ASSY X4918825100
50-1 HOUSING ASSY X4918825110
51 O-RING X4917422700
52 RING, SNAP X4917423340
53 V-CLAMP X4917414000
54 HOUSING ASSY X4918812400
56 LAGGING,T.C. 126662-18840
57 PLATE, TURBINE BACK X4918819100
58 RIVET X0066502048
59 PLATE, NAME X4916954200
60 INSULATOR 127695-18080
61 GASKET 148816-18401
61-1 GASKET 148816-18404
62 STUD, M10X 30 26213-100302
62-1 STUD, M10X 28 26213-100282
63 NUT, M10 26713-100002
63-1 U-NUT 128633-18700
64 SPACER 126674-18200
65 GASKET 126674-18210
65-1 GASKET 126674-18211
66 BOLT, M10X 30 26453-100302
