YANMAR 126665-18060 Turbocharger, T45

Write a Review
$22,718.25
SKU:
126665-18060
Schematic Object Key:
1C

YANMAR 126665-18060 Turbocharger, T45

$22,718.25

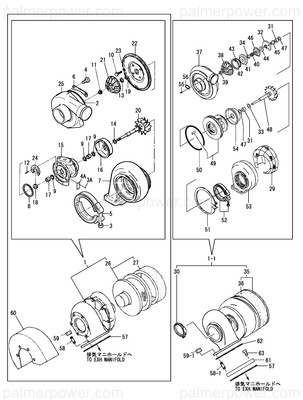

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

YANMAR 126665-18060 Turbocharger, T45

Schematic Object Key : 1C

Product Description : TURBOCHARGER, T45

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Other Components:

Ref Description Part No.
1A TURBOCHARGER ASSY 126665-18020
1A-1 TURBOCHARGER, TFO8L 126662-18010
1C TURBOCHARGER, T45 126665-18060
1C-1 TURBOCHARGER, TFO8L 126662-18010
1E TURBOCHARGER, T45 126665-18100
1E-1 TURBOCHARGER, TF08L 126662-18010-B
1G TURBOCHARGER, T45 X6 126665-18140
1G-1 TURBOCHARGER, TF08L 126662-18010-J
1I TURBOCHARGER, T45 X6 126665-18180
1I-1 TURBOCHARGER, TF08L 126662-18010-F
2 O-RING 940306-90069
3 LOCK NUT 940058-00000
3A SCRW 940081-40202
4 BOLT 940062-70810
4A PLATE 940923-60005
5 BAND 940073-80460
6 CLAMP 941098-70000
7 TURBINE HOUSING 944128-40127
8 RING,SEAL 940042-40009
9 RING RETAINING 940044-60081
10 BOLT 940062-70620
11 LOCK NUT 940076-80012
12 BOLT 940096-40410
13 PISTON PING 940381-80000
14 PISTON RING 940381-80030
15 HOUSING, SENTER 941031-00001
16 SHROUD WHEEL 941036-60003
17 BEARING 941039-40001
18 THRUST COLLAR 941080-00001
19 THRUST SPACER 941080-10001
20 WHEEL 944106-40001
21 IMPELLER, 944179-30010
22 BACK PLATE 944275-20001
23 WASHER 944320-80001
24 BEARING 944368-60001
25 HOUSING, COMPRESSOR 944321-10014
26 SILENCER 127695-18520
26-1 SILENCER 126665-18520
26-2 SILENCER 126665-18521
27 FILTER, PRE 127695-18530
29 LAGGING 126672-18470
30 CLAMP, V 126644-18490
31 BEARING 126662-18800
32 BEARING, THRUST 126662-18810
33 RING 126662-18820
34 LINK 126662-18830
35 SILENCER 126662-18850
36 CLEANER, PRE 125X910 148616-18360
37 COVER, COMPRESSOR X4913453210
38 WHEEL, COMPRESSOR X4913440510
39 LOCK NUT X4913442210
40 SLEEVE FLINGER X4913442100
41 INSERT X4913422500
42 RING, SNAP X4917423200
43 O-RING X4917422600
44 RING, THRUST X4918842300
45 RING, THRUST X4918842400
46 DEFLECTOR, OIL X4918822210
47 RING, SNAP X4917422300
48 SHAFT & T/W ASSY X4913430100
49 BEARING HOUSING X4913425190
50 O-RING X4917422700
51 RING, SNAP X4917423340
52 V-CLAMP X4917414000
53 TURBINE HOUSING X4913410060
54 PLATE TURBINE BACK X4913419100
55 RIVET X0066502048
56 PLATE, NAME X4916954200
57 GASKET 148816-18401
57-1 GASKET 148816-18404
58 STUD, M10X 30 26213-100302
58-1 STUD, M10X 28 26213-100282
59 NUT, M10 26713-100002
59-1 U-NUT 128633-18700
60 INSULATOR 127695-18080
61 SPACER 126674-18200
62 GASKET 126674-18210
62-1 GASKET 126674-18211
63 BOLT, M10X 30 26453-100302
