YANMAR 127410-01411 Gasket, Side Cover

Write a Review
$35.55
SKU:
127410-01411
Schematic Object Key:
2-1

YANMAR 127410-01411 Gasket, Side Cover

$35.55

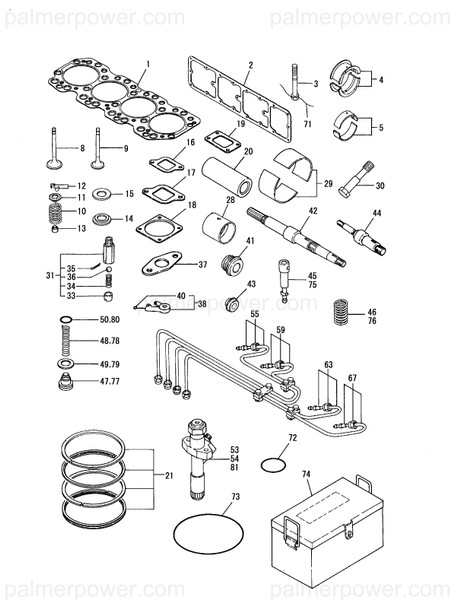

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

YANMAR 127410-01411 Gasket, Side Cover

Schematic Object Key : 2-1

Product Description : GASKET, SIDE COVER

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Other Components:

Ref Description Part No.
1 GASKET, HEAD 127410-01351
1-1 GASKET, HEAD T=1.5 127410-01352
2 GASKET 127410-01410
2-1 GASKET, SIDE COVER 127410-01411
3 BOLT, METAL CAP 127610-02070
4 METAL ASSY, MAIN 727687-02931
5 BEARING, MAIN 127610-02120
5-1 METAL, MAIN 127687-02111
8 VALVE, INTAKE 127610-11100
9 VALVE, EXHAUST 127610-11110
10 SPRING, VALVE 127410-11120
11 RETAINER, SPRING 127410-11180
12 COTTER, VALVE 144626-11190
12-1 COTTER, 10 27310-100001
13 SEAL, VALVE STEM 127610-11280
14 INSULATOR, NOZZLE 127610-11851
15 GASKET, NOZZLE 127610-11860
16 GASKET 127420-12160
16-1 GASKET, AIR INTAKE 127420-12161
17 GASKET 127610-13200
17-1 GASKET, HEAD OUTLET 127610-13201
19 GASKET 121252-18090
19-1 GASKET, TURBINE 121252-18091
20 PIN, PISTON 127610-22300
20-1 PIN, PISTON 127610-22301
21 RING SET, PISTON 127610-22501
28 METAL, PISTON PIN 127610-23910
29 BEARING, CRANK PIN 127610-23350
29-1 METAL ASSY,CRANK PIN 727687-23601
30 BOLT, CONNECTING ROD 127620-23700
30-1 BOLT, ROD 123325-23200
31 VALVE ASSY, SAFETY 127610-32300
33 RETAINER, SPRING 123325-32320
34 SPRING, SAFETY VALVE 127610-32330
35 COTTER PIN 2.0X35 22411-200350
36 BALL, STEEL 1/2 24190-160001
37 GASKET, 46X26X1 127412-39270
37-1 GASKET 127412-39271
38 BODY ASSY, NOZZLE 127610-39421
40 SCREW, M4X 4 26911-040042
41 SEAL, MECHANICAL 123472-42060
42 SHAFT, WATER PUMP 127610-42080
43 SEAL, MECHANICAL 127610-43210
43-1 SEAL, MECHANICAL 124250-42350
44 SHAFT, WATER PUMP 127610-43300
55 PIPE ASSY, 1.8X565 127450-59810
55-1 PIPE, INJECTION NO.1 43711-502680
59 PIPE ASSY, INJECTION 127450-59820
59-1 PIPE, INJECTION NO.2 43711-502690
63 PIPE ASSY, 1.8X565 127450-59830
63-1 PIPE, INJECTION NO.3 43711-502700
67 PIPE ASSY, INJECTION 127450-59840
67-1 PIPE, INJECTION NO.4 43711-502710
71 WIRE, 1.0X1000 22451-101000
72 O-RING, 1AG35.0 24321-000350
73 O-RING, 1AG105.0 24321-001050
74 BOX, SPARE PARTS 42112-002300
75 PLUNGER ASSY 127620-51100
76 SPRING, PLUNGER 127620-51110
77 VALVE ASSY, DELIVERY 127653-51300
78 SPRING, DELIVERY 127653-51310
79 GASKET, 16X8X0.5 127620-51380
80 O-RING, 21X17X2 127620-51390
81 VALVE ASSY,INJECTION 727657-53100
