YANMAR 127416-01332 Gasket Head

Write a Review
$197.15
SKU:
127416-01332
Schematic Object Key:
28

YANMAR 127416-01332 Gasket Head

$197.15

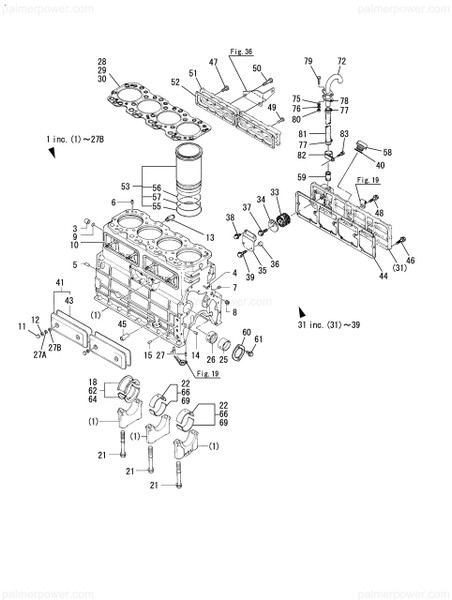

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

YANMAR 127416-01332 Gasket Head

Schematic Object Key : 28

Product Description : GASKET, HEAD T=1.5 127416-01332

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Other Components:

Ref Description Part No.
1 BLOCK ASSY, CYLINDER 727425-01560
3 PIPE 127610-01691
4 PIN, PARALLEL M6X16 22312-060160
5 PIN, PARALLEL M10X20 22312-100200
6 PIN, SPRING 8.0X16 22351-080016
7 PLUG, R01 23871-010000
7-1 PLUG, R01 23876-010000
8 PLUG, R03 23871-030000
8-1 PLUG, R03 23876-030000
9 O-RING, 1AP24.0 24311-000240
10 STUD M 8X60 26212-080602
10-1 STUD, M8X 55 26216-080552
11 NUT, CAP M8 26657-080002
12 WASHER, SEAL 8 22190-080003
13 COCK ASSY, 1/4 119620-49290
14 PIN, PARALLEL M10X16 22312-100160
15 PIN, PARALLEL M10X16 22312-100160
18 METAL ASSY, MAIN 727687-02931
21 BOLT, METAL CAP 127610-02070
22 METAL, MAIN 127687-02111
25 BUSH, CAMSHAFT A 127610-02400
26 BUSH, CAMSHAFT B 127610-02420
27 SPRING PIN 4X10 22353-040010
27A WASHER, 8 22137-080000
27B WASHER, SEAL 10 22190-100003
28 GASKET, HEAD T=1.5 127416-01332
28-1 GASKET, HEAD T=1.5 127416-01333
29 GASKET, HEAD T=1.6 127416-01342
29-1 GASKET, HEAD T=1.6 127416-01343
30 GASKET, HEAD T=1.4 127416-01352
30-1 GASKET, HEAD T=1.4 127416-01353
31 COVER ASSY, CYLINDER 727410-01500
33 WOOL, STEEL 127610-03050
34 OIL THROWER 127610-03060
35 PLATE, BREATHER 127610-03090
36 SPACER 127610-03150
37 BOLT, M8X 14 PLATED 26106-080142
38 BOLT, M8X 16 PLATED 26106-080162
39 BOLT, M8X 22 PLATED 26106-080222
40 O-RING, 1AP32.0 24311-000320
41 COVER ASSY 727610-01800
43 O-RING, A 127610-01841
44 GASKET 127410-01410
45 PIPE, CONNECTING 127610-01890
46 BOLT, M8X 22 PLATED 26106-080222
47 BOLT, M8X 22 PLATED 26106-080222
48 BOLT, M8X 28 PLATED 26106-080282
49 BOLT, M8X 28 PLATED 26106-080282
50 BOLT, M8X 45 PLATED 26106-080452
51 COVER, WATER A 127610-01751
52 GASKET, COVER A 127675-01790
53 LINER ASSY, CYLINDER 727419-01900
53-1 LINER ASSY, CYLINDER 727419-01901
55 GASKET, LINER 127418-01310
55-1 O-RING, CYL. LINER 127418-01311
56 GASKET, LINER 127616-01320
57 O-RING, 1AG105.0 24321-001050
57A O-RING, CYL. LINER 127418-01311
58 COVER, FILLER 124160-01751
59 JOINT, PIPE 127610-03220
60 PLATE, THRUST 127610-02160
61 BOLT, M8X 16 26013-080162
62 METAL ASSY, MAIN .25 727687-02840
64 METAL ASSY, MAIN .50 727687-02870
66 METAL ASSY, MAIN .25 727687-02860
69 METAL ASSY, MAIN .50 727687-02890
72 PIPE ASSY, BREATHER 126415-03100
75 WASHER 10 22121-100000
76 WASHER, SPRING 10 22217-100000
77 CLAMP, 35 23000-035000
78 GASKET, 26X1.5 23421-260000
79 BOLT, M10X 40 PLATED 26203-100402
80 NUT, M10 26706-100002
81 PIPE 43720-801160
82 RETAINER 127610-03270
83 BOLT, M8X 14 26013-080142
