YANMAR 127418-01310 Gasket, Liner

Write a Review
$18.52
SKU:
127418-01310

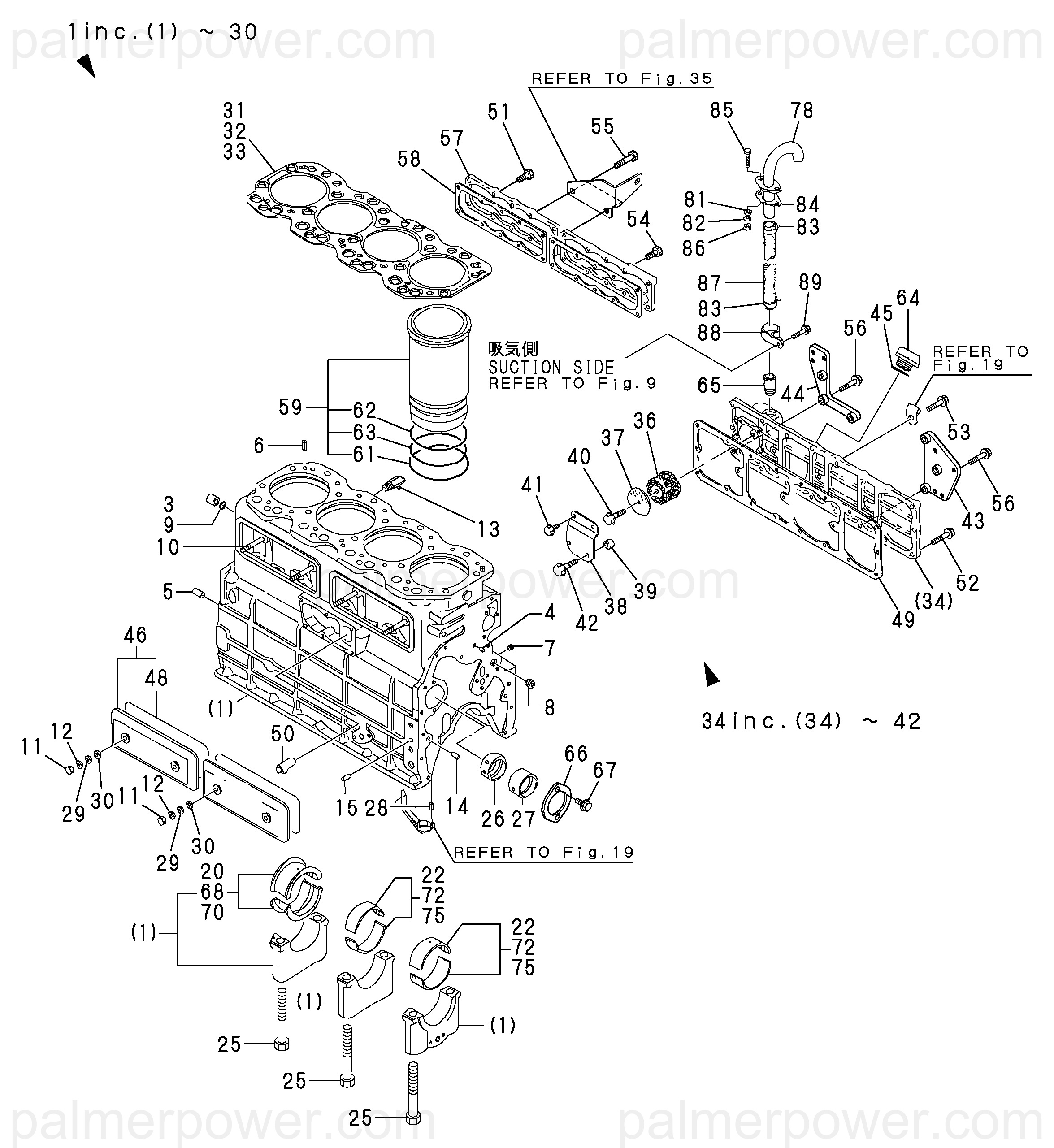

Schematic Object Key:
61

YANMAR 127418-01310 Gasket, Liner

$18.52

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

YANMAR 127418-01310 Gasket, Liner

Schematic Object Key : 61

Product Description : GASKET, LINER

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Other Components:

Ref Description Part No.
1 BLOCK ASSY, CYLINDER 727425-01560
3 PIPE 127610-01691
4 PIN, PARALLEL M6X16 22312-060160
5 PIN, PARALLEL M10X20 22312-100200
6 PIN, SPRING 8.0X16 22351-080016
7 PLUG, R01 23876-010000
8 PLUG, R03 23876-030000
9 O-RING, 1AP24.0 24311-000240
10 STUD, M8X 55 26216-080552
11 NUT, CAP M8 26657-080002
12 WASHER, SEAL 8 22190-080003
13 COCK ASSY, 1/4 119620-49290
14 PIN, PARALLEL M10X16 22312-100160
15 PIN, PARALLEL M10X16 22312-100160
20 METAL ASSY, MAIN 727687-02931
22 METAL, MAIN 127687-02111
25 BOLT, METAL CAP 127610-02070
26 BUSH, CAMSHAFT A 127610-02400
27 BUSH, CAMSHAFT B 127610-02420
28 SPRING PIN 4X10 22353-040010
29 WASHER, 8 22137-080000
30 WASHER, SEAL 10 22190-100003
31 GASKET, HEAD T=1.5 127416-01333
32 GASKET, HEAD T=1.6 127416-01343
33 GASKET, HEAD T=1.4 127416-01353
34 COVER ASSY, CYLINDER 727410-01500
36 WOOL, STEEL 127610-03050
37 OIL THROWER 127610-03060
38 PLATE, BREATHER 127610-03090
39 SPACER 127610-03150
40 BOLT, M8X 14 PLATED 26106-080142
41 BOLT, M8X 16 PLATED 26106-080162
42 BOLT, M8X 22 PLATED 26106-080222
43 SUPPORT 127425-01550
44 SUPPORT 127425-01560
45 O-RING, 1AP32.0 24311-000320
46 COVER ASSY 727610-01800
48 O-RING, A 127610-01841
49 GASKET 127410-01410
49-1 GASKET, SIDE COVER 127410-01411
50 PIPE, CONNECTING 127610-01890
51 BOLT, M8X 22 PLATED 26106-080222
52 BOLT, M8X 22 PLATED 26106-080222
53 BOLT, M8X 28 PLATED 26106-080282
54 BOLT, M8X 28 PLATED 26106-080282
55 BOLT, M8X 45 PLATED 26106-080452
56 BOLT, M8X 40 PLATED 26106-080402
57 COVER, WATER A 127610-01751
58 GASKET, COVER A 127675-01790
59 LINER ASSY, CYLINDER 727419-01901
61 GASKET, LINER 127418-01310
61-1 O-RING, CYL. LINER 127418-01311
62 GASKET, LINER 127425-01320
63 O-RING, 1AG105.0 24321-001050
63A O-RING, CYL. LINER 127418-01311
64 COVER, FILLER 124160-01751
65 JOINT, PIPE 127610-03220
66 PLATE, THRUST 127610-02160
67 BOLT, M8X 16 26013-080162
68 METAL ASSY, MAIN .25 727687-02840
70 METAL ASSY, MAIN .50 727687-02870
72 METAL ASSY, MAIN .25 727687-02860
75 METAL ASSY, MAIN .50 727687-02890
78 PIPE ASSY, BREATHER 126415-03100
81 WASHER 10 22121-100000
82 WASHER, SPRING 10 22217-100000
83 CLAMP, 35 23000-035000
84 GASKET, 26X1.5 23421-260000
85 BOLT, M10X 40 PLATED 26203-100402
86 NUT, M10 26706-100002
87 PIPE 43720-801160
88 RETAINER 127610-03270
89 BOLT, M8X 14 26013-080142
