YANMAR 127422-11920 Seal, Fuel Injection

Write a Review
$16.18
SKU:
127422-11920
Schematic Object Key:
36

YANMAR 127422-11920 Seal, Fuel Injection

$16.18

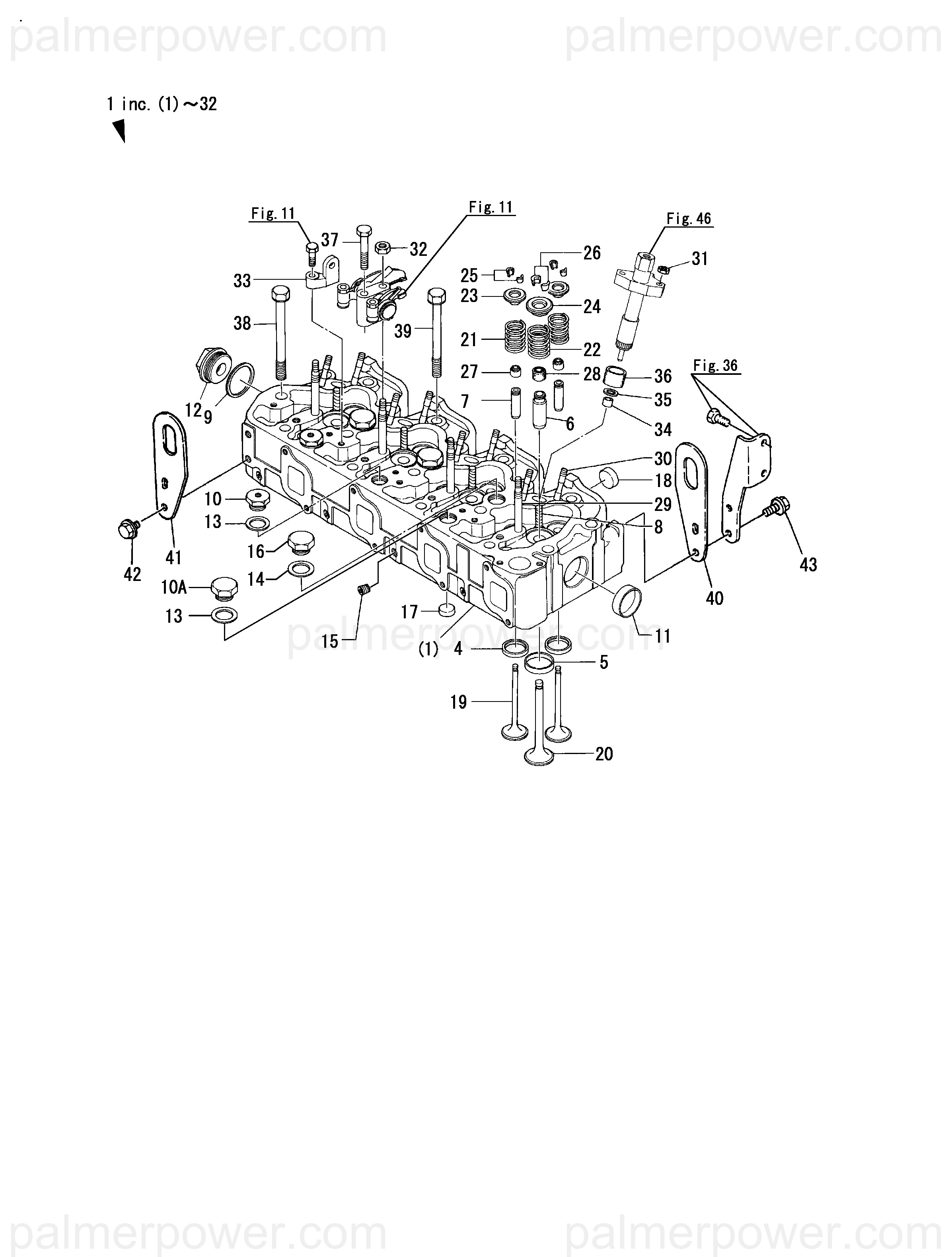

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

YANMAR 127422-11920 Seal, Fuel Injection

Schematic Object Key : 36

Product Description : SEAL 127422-11920

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Other Components:

Ref Description Part No.
1 HEAD ASSY, CYLINDER 727422-11700
4 SEAT, INTAKE VALVE 127422-11080
5 SEAT, EXHAUST VALVE 127422-11090
6 GUIDE, VALVE 127610-11150
6-1 GUIDE, VALVE 127422-11150
7 GUIDE, VALVE 120320-11160
8 GUIDE, BRIDGE 120320-11530
9 GASKET, 45 126650-11760
10 PLUG, M22 127422-11830
10A PLUG 22 23881-220002
11 PLUG, 45 128610-11950
12 PLUG 127420-49970
13 GASKET, 22X1.0 23414-220000
14 GASKET, 25X1.0 23414-250000
15 PLUG, R02 23876-020000
16 PLUG 25 23881-250002
17 PLUG, 22 27241-220000
18 PLUG, 28 27241-280000
19 VALVE, INTAKE 127422-11100
20 VALVE, EXHAUST 127422-11110
21 SPRING, VALVE 127422-11120
22 SPRING, VALVE 127422-11130
23 RETAINER, SPRING 127422-11170
24 RETAINER, SPRING 127422-11180
25 COTTER, 7 27310-070001
26 COTTER, 10 27310-100001
27 SEAL, VALVE STEM 124160-11340
28 SEAL, VALVE STEM 127610-11280
29 STUD 127422-11350
30 STUD 126650-11770
30-1 STUD 120323-11770
31 NUT, M8 26366-080002
31-1 NUT, M8 26306-080002
32 NUT, M10 26706-100002
33 SUPPORT 127422-11450
34 INSULATOR 128610-11900
34-1 INSULATOR 121850-11900
35 GASKET, NOZZLE 128610-11910
35-1 RETAINER 121850-11910
36 SEAL 127422-11920
37 BOLT, M10X 60 PLATED 26106-100602
38 BOLT, HEAD A 127610-01200
39 BOLT, HEAD B 127610-01210
40 LIFTER 127410-07920
40-1 LIFTER, A 127410-07921
41 LIFTER 127410-07920
41-1 LIFTER, A 127410-07921
42 BOLT M10X 18 PLATED 26116-100182
42-1 BOLT, M10X 22 PLATED 26106-100222
43 BOLT, M10X 25 PLATED 26116-100252
43-1 BOLT, M10X 28 PLATED 26106-100282
