YANMAR 127450-49020 Bend, Pump Inlet

Write a Review
$303.48
SKU:
127450-49020
Schematic Object Key:
1

YANMAR 127450-49020 Bend, Pump Inlet

$303.48

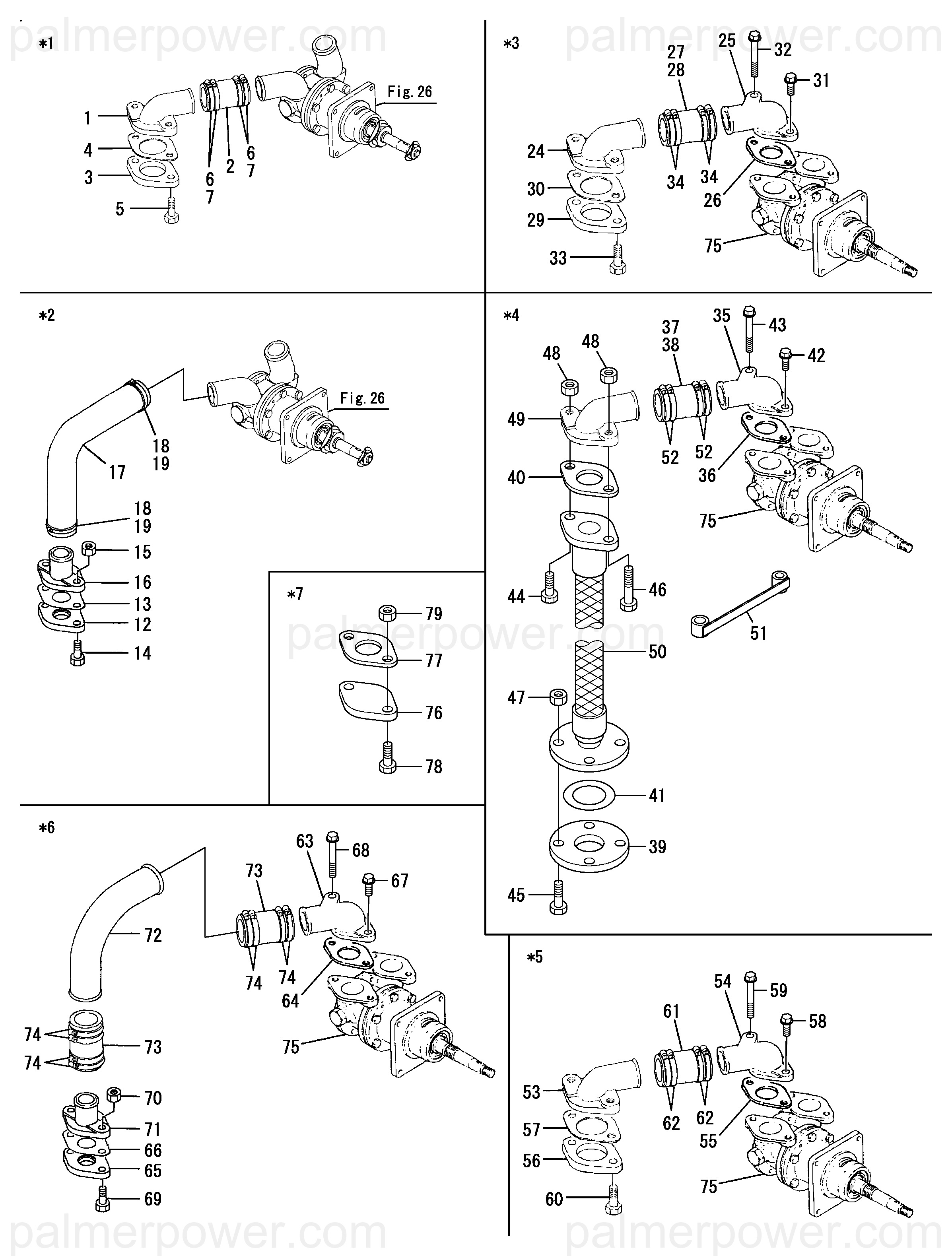

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

YANMAR 127450-49020 Bend, Pump Inlet

Schematic Object Key : 1

Product Description : BEND, PUMP INLET

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Other Components:

Ref Description Part No.
1 BEND, PUMP INLET 127450-49020
2 JOINT, RUBBER A 127620-49650
3 FLANGE, 43 23221-430000
4 GASKET, 44X1.5 23421-440000
5 BOLT, M12X 30 PLATED 26116-120302
6 CLIP, HOSE 61 43730-552161
7 CLIP ASSY, HOSE 61 43730-555390
12 FLANGE, 43 23221-430000
13 GASKET, 44X1.5 23421-440000
14 BOLT, M12X 40 PLATED 26116-120402
15 NUT, M12 26716-120002
16 JOINT 43560-551110
17 JOINT, RUBBER 43720-554910
18 CLIP, HOSE 61 43730-552161
19 CLIP ASSY, HOSE 61 43730-555390
24 BEND, PUMP INLET 127450-49020
25 BEND, PUMP INLET 127610-49030
26 GASKET 127610-49170
27 JOINT, RUBBER 127650-49650
28 COVER, SEA WATER 127650-49700
29 FLANGE, 43 23221-430000
30 GASKET, 44X1.5 23421-440000
31 BOLT, M10X 25 PLATED 26106-100252
32 BOLT, M10X 55 PLATED 26106-100552
33 BOLT, M12X 30 PLATED 26116-120302
34 CLIP, HOSE 61 43730-552161
35 BEND, PUMP INLET 127610-49030
36 GASKET 127610-49170
37 JOINT, RUBBER 127650-49650
38 COVER, SEA WATER 127650-49700
39 FLANGE, 5K 32 23211-032043
40 GASKET, 44X1.5 23421-440000
41 GASKET 32 23431-032000
42 BOLT, M10X 25 PLATED 26106-100252
43 BOLT, M10X 45 PLATED 26106-100452
44 BOLT, M12X 30 PLATED 26116-120302
45 BOLT, M12X 40 PLATED 26116-120402
46 BOLT, M12X 60 PLATED 26116-120602
47 NUT, M12 26716-120002
48 NUT, M12 26716-120002
49 BEND, PUMP 41649-503720
50 PIPE, FLEXIBLE 43720-556000
51 SUPPORT, BEND 43730-500640
52 CLIP, HOSE 61 43730-552161
53 BEND, PUMP INLET 127450-49020
54 BEND, PUMP INLET 127610-49030
55 GASKET 127610-49170
56 FLANGE, 43 23221-430000
57 GASKET, 44X1.5 23421-440000
58 BOLT, M10X 25 PLATED 26106-100252
59 BOLT, M10X 55 PLATED 26106-100552
60 BOLT, M12X 30 PLATED 26116-120302
61 JOINT, RUBBER 43720-557040
62 CLIP, HOSE 61 43730-552161
63 BEND, PUMP INLET 127610-49030
64 GASKET 127610-49170
65 FLANGE, 43 23221-430000
66 GASKET, 44X1.5 23421-440000
67 BOLT, M10X 25 PLATED 26106-100252
68 BOLT, M10X 55 PLATED 26106-100552
69 BOLT, M12X 40 PLATED 26116-120402
70 NUT, M12 26716-120002
71 JOINT 43560-551110
72 BEND, INPUT/OUTPUT 43560-551550
73 JOINT, RUBBER 43720-557040
74 CLIP, HOSE 61 43730-552161
75 BODY, PUMP 127410-43050
76 FLANGE, 43 23221-430001
77 GASKET, 44X1.5 23421-440000
78 BOLT, M12X 40 PLATED 26116-120402
79 NUT, M12 26716-120002
