YANMAR 127452-61550 Governor

Write a Review
$2,211.71
SKU:
127452-61550
Schematic Object Key:
2

YANMAR 127452-61550 Governor

$2,211.71

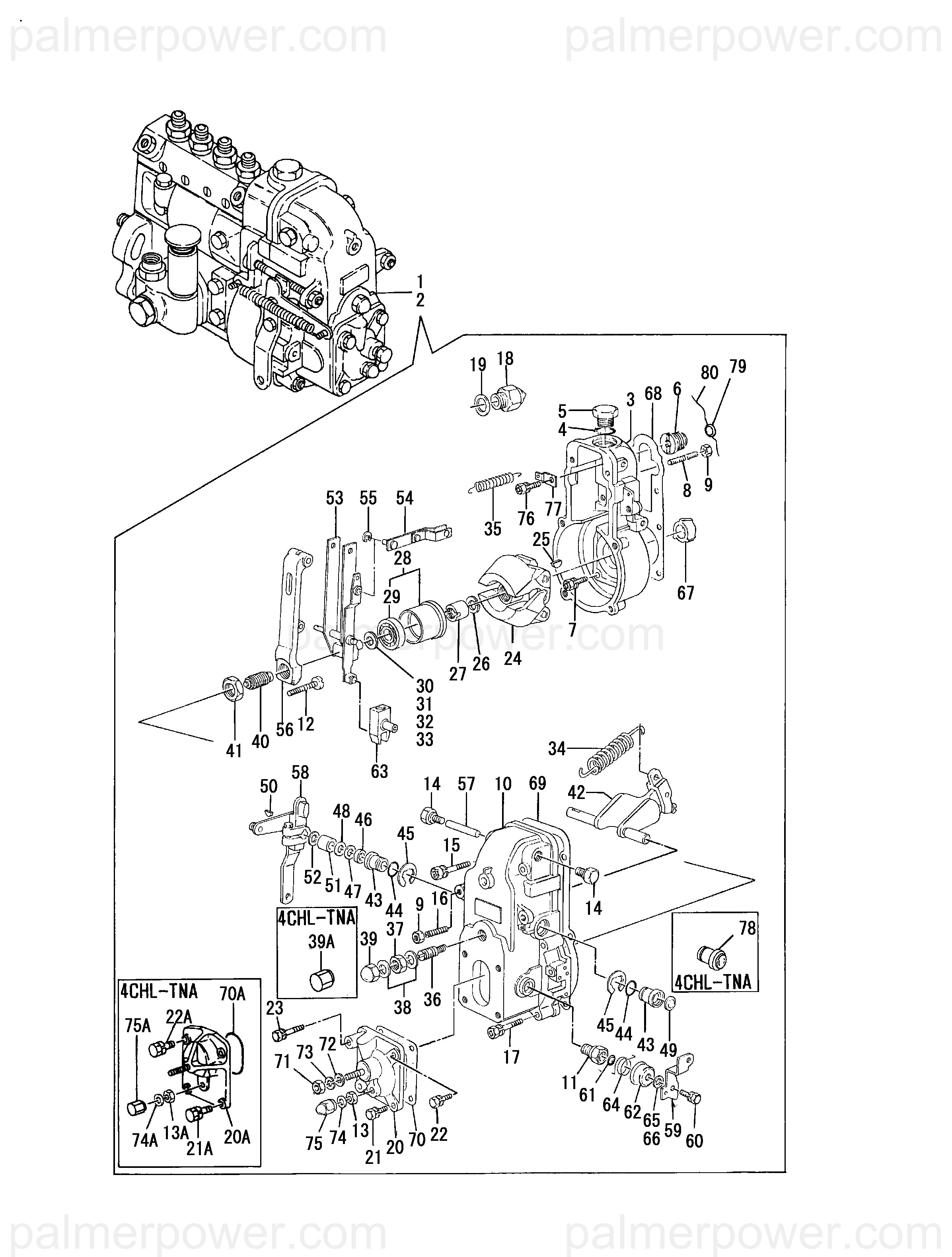

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

YANMAR 127452-61550 Governor

Schematic Object Key : 2

Product Description : GOVERNOR

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Other Components:

Ref Description Part No.
2 GOVERNOR 127452-61550
3 HOUSING, GOVERNOR X1540006300
4 O-RING X0296325070
5 PLUG X1540072900
6 ADAPTOR X1540070200
7A BOLT X0290106810
8 SCREW X1540101100
9 NUT X1540110100
10A COVER X1545003020
12 SCREW X1540312400
13A NUT X1392060600
14 PLUG X1540360300
15 BOLT X0201065040
16 SCREW X1540100100
17 BOLT X0201063840
18A LIMITER X1530204420
19 GASKET X0265182240
20A COVER X1540634520
21A BOLT X0290206210
22A BOLT X0200061640
24A WEIGHT SET, FLY X1541010120
25 WOODRUFF KEY X0258031610
26 SPRING WASHER X0293212020
27 NUT X0292312030
28 SLEEVE X1541230120
30A SHIM X0299981000
34A SPRING X1541500200
35 SPRING, GOVERNOR X1541540800
36A CAPSULE, SPRING X1541580920
37A NUT X1540111700
38 GASKET X0265121540
39A NUT, CAP X1541591200
40A CAPSULE, SPRING X1541770520
41 NUT X0292016010
42A LEVER, SWIVEL X1542007020
43A BUSH X1542043000
44 O-RING X0296318020
45 RING, SNAP X0160101640
46A SEAL, OIL X1396110000
47A SHIM X1394110000
48 SHIM X0293111090
50 WOODRUFF KEY X0258031310
51A COLLAR X1542062800
52 WASHER X1542060200
53 LEVER ASSY, GUIDE X1542113920
54 LINK X1542303920
55 RING, SNAP X0160100540
56 LEVER, TENSION X1542364100
57 PIN X1542370100
58 LEVER X1543455320
59 LEVER X1543042800
60 BOLT X0200061640
61 O-RING X0296310030
62 CAP X1543220100
63 LEVER ASSY X1543265120
64A SPRING X1543277300
65A SHIM X0299981040
67 IMPELLER X1554125200
68 GASKET X1543507700
69 GASKET X1543507800
70A O-RING X0296352020
71 NUT X0130208040
72 WASHER X0140108140
73 WASHER, SPRING X0141108440
74A GASKET X0265061040
75A CAP NUT X1540351600
76 BOLT X0200181840
77 PLATE X1543501900
78 BUSH X1542043100
79 SEAL, READ X0291580010
80 WIRE X0291610050
