YANMAR 127610-01361 Gasket Cyl Head

Write a Review
$206.48
SKU:
127610-01361
Schematic Object Key:
47

YANMAR 127610-01361 Gasket Cyl Head

$206.48

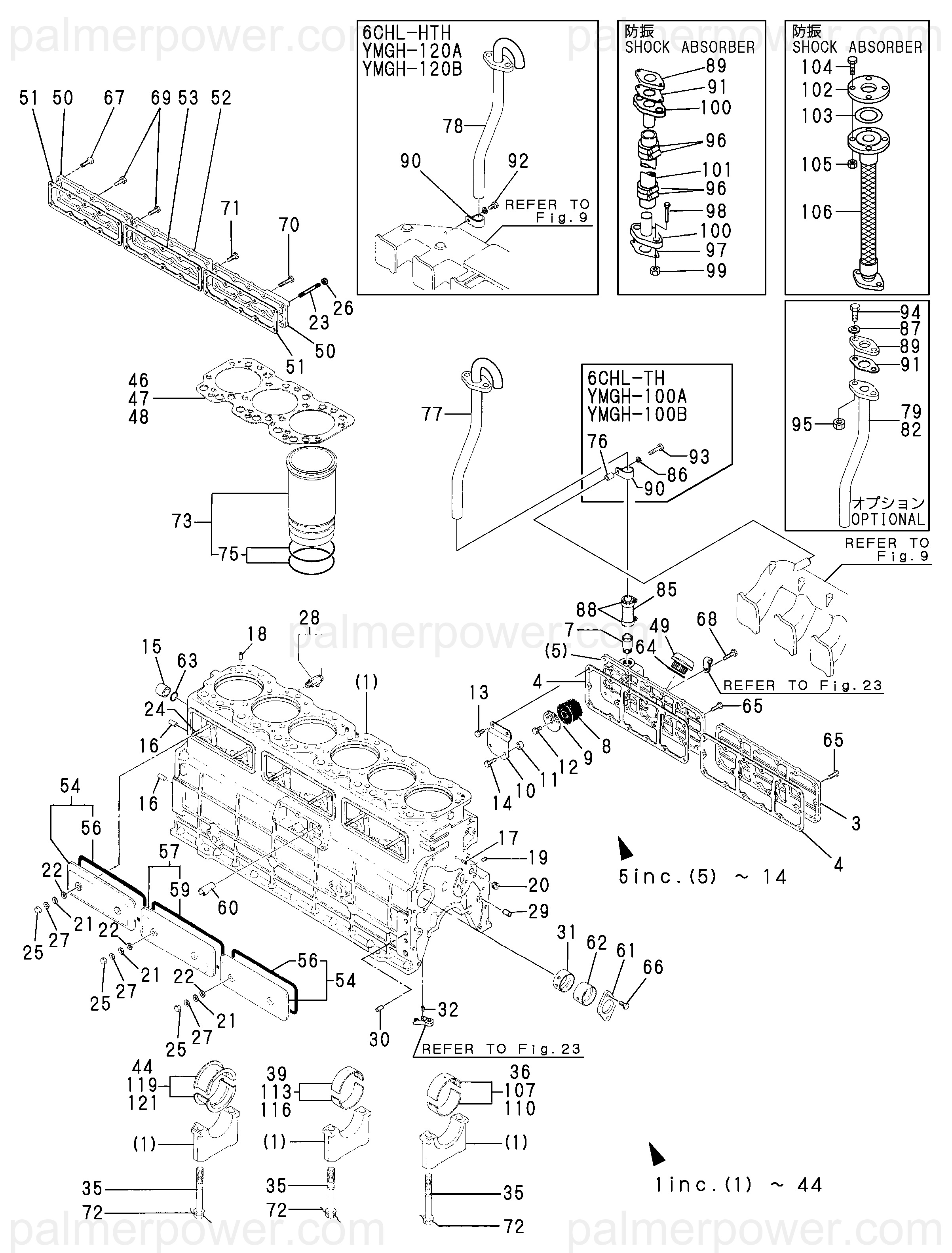

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

YANMAR 127610-01361 Gasket Cyl Head

Schematic Object Key : 47

Product Description : GASKET, HEAD T=1.4 127610-01361

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Other Components:

Ref Description Part No.
1 BLOCK ASSY, CYLINDER 727610-01563
3 COVER, BLOCK SIDE A 127610-01402
4 GASKET, SIDE COVER 127675-01410
5 COVER ASSY, CYLINDER 727610-01502
7 JOINT, PIPE 127610-03220
8 WOOL, STEEL 127610-03050
9 OIL THROWER 127610-03060
10 PLATE, BREATHER 127610-03090
11 SPACER 127610-03150
12 BOLT, M8X 14 PLATED 26106-080142
13 BOLT, M8X 16 PLATED 26106-080162
14 BOLT, M8X 22 PLATED 26106-080222
15 PIPE 127610-01691
16 PIN, PARALLEL M10X20 22312-100200
17 PIN, SPRING 6.0X16 22351-060016
18 PIN, SPRING 8.0X16 22351-080016
19 PLUG, R01 23876-010000
20 PLUG, R03 23876-030000
21 WASHER, 8 22137-080000
22 WASHER, SEAL 10 22190-100003
23 STUD, M8X 40 26216-080402
24 STUD, M8X 55 26216-080552
25 NUT, CAP M8 26657-080002
26 NUT, M8 26306-080002
27 WASHER, SEAL 8 22190-080003
28 COCK ASSY, 1/4 119620-49290
29 PIN, PARALLEL M10X16 22312-100160
30 PIN, PARALLEL M10X16 22312-100160
31 BUSH, CAMSHAFT B 127610-02420
32 SPRING PIN 4X10 22353-040010
35 BOLT, METAL CAP 127450-02070
36 METAL, MAIN 127687-02091
39 METAL, MAIN 127687-02111
44 METAL ASSY, MAIN 727687-02931
46 GASKET, HEAD T=1.5 127610-01352
47 GASKET, HEAD T=1.4 127610-01361
48 GASKET, HEAD T=1.6 127610-01372
49 COVER, FILLER 124160-01751
50 COVER, WATER A 127610-01751
51 GASKET, COVER A 127675-01790
52 COVER, WATER B 127610-01770
53 GASKET, COVER B 127675-01800
54 COVER ASSY 727610-01800
56 O-RING, A 127610-01841
57 COVER ASSY 727610-01810
59 O-RING, B 127610-01851
60 PIPE, CONNECTING 127610-01890
61 PLATE, THRUST 127610-02160
62 BUSH, CAMSHAFT A 127610-02400
63 O-RING, 1AP24.0 24311-000240
64 O-RING, 1AP32.0 24311-000320
65 BOLT, M8X 22 PLATED 26106-080222
66 BOLT, M8X 18 26013-080182
67 BOLT, M8X 22 PLATED 26106-080222
68 BOLT, M8X 25 PLATED 26106-080252
69 BOLT, M8X 28 PLATED 26106-080282
70 BOLT, M8X 30 PLATED 26106-080302
71 BOLT, M8X 25 PLATED 26106-080252
72 WIRE, 1.6 22451-160000
73 LINER ASSY, CYLINDER 727610-01900
75 O-RING, 1AG105.0 24321-001050
78 PIPE, BREATHER 127657-03240
82 PIPE, BREATHER 127653-03240
85 PIPE, BREATHER 122780-03260
87 WASHER, SPRING 12 22217-120000
88 CLAMP, 35 23000-035000
89 FLANGE, 28 23221-280000
90 CLAMP, A27X12 23297-250081
91 PACKING 31 23422-310000
92 BOLT, M8X 14 26013-080142
94 BOLT, M12X 35 PLATED 26116-120352
95 NUT, M12 26716-120002
96 CLAMP, 48 23000-048000
97 PACKING 31 23422-310000
98 BOLT, M12X 35 PLATED 26116-120352
99 NUT, M12 26716-120002
100 JOINT 43560-551270
101 JOINT, RUBBER 43720-555020
102 FLANGE, 5K 20 23211-020027
103 PACKING 20 23433-020000
104 BOLT, M10X 30 PLATED 26106-100302
105 NUT, M10 26706-100002
106 TUBE, FLEXIBLE 43720-555980
107 METAL ASSY, MAIN .25 727687-02850
110 METAL ASSY, 0.50 US 727687-02880
113 METAL ASSY, MAIN .25 727687-02860
116 METAL ASSY, MAIN .50 727687-02890
119 METAL ASSY, MAIN .25 727687-02840
121 METAL ASSY, MAIN .50 727687-02870
