YANMAR 127610-01770 Cover, Water B

Write a Review
$226.78
SKU:
127610-01770
Schematic Object Key:
19

YANMAR 127610-01770 Cover, Water B

$226.78

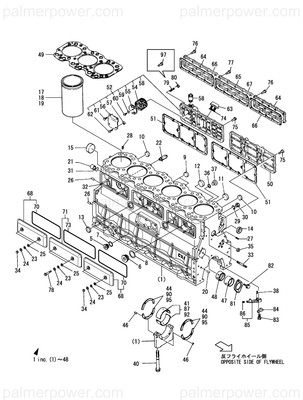

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

YANMAR 127610-01770 Cover, Water B

Schematic Object Key : 19

Product Description : COVER, WATER B 127610-01770

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Other Components:

Ref Description Part No.
1-1 COVER ASSY 727610-01800
3-1 O-RING, A 127610-01841
4-1 COVER ASSY 727610-01810
6-1 O-RING, B 127610-01851
7-2 COVER ASSY, CYLINDER 727610-01502
9-1 JOINT, PIPE 127610-03220
10 WOOL, STEEL 127610-03050
11 OIL THROWER 127610-03060
12 PLATE, BREATHER 127610-03090
13-1 SPACER 127610-03150
14 BOLT, M8X 14 PLATED 26106-080142
15 BOLT, M8X 16 PLATED 26106-080162
16 BOLT, M8X 22 PLATED 26106-080222
17-2 COVER, FILLER 124160-01751
18 COVER, WATER A 127610-01751
19 COVER, WATER B 127610-01770
20-1 GASKET, COVER A 127675-01790
21-1 GASKET, COVER B 127675-01800
22 PIPE, CONNECTING 127610-01890
23-2 COVER, BLOCK SIDE A 127610-01402
24-2 GASKET, SIDE COVER 127675-01410
25-3 BLOCK ASSY, CYLINDER 727610-01563
25-4 BLOCK ASSY, CYLINDER 727689-01560
31-1 PIPE 127610-01691
32 BOLT, METAL CAP 127610-02070
33 BEARING, MAIN 727610-02800
33-1 METAL ASSY, MAIN 727687-02931
33-2 MAIN BEARING ASSY 127687-02080
35 BEARING, MAIN 127610-02090
35-1 METAL, MAIN 127687-02091
38 BEARING, MAIN 127610-02120
38-1 METAL, MAIN 127687-02111
41 BUSH, CAMSHAFT A 127610-02400
42 BUSH, CAMSHAFT B 127610-02420
43 PIN, PARALLEL M10X16 22312-100160
44 PIN, PARALLEL M10X16 22312-100160
45 PIN, PARALLEL M10X20 22312-100200
46 PIN, SPRING 6.0X16 22351-060016
47 PIN, SPRING 8.0X16 22351-080016
48 SPRING PIN 4X10 22353-040010
49 PLUG, R01 23876-010000
50 PLUG, R03 23876-030000
52-1 O-RING, 1AP24.0 24311-000240
53 STUD M 8X60 26212-080602
53-1 STUD, M8X 55 26216-080552
54 NUT, CAP M8 26657-080002
55-1 GASKET, HEAD T=1.5 127610-01351
55-2 GASKET, HEAD T=1.5 127610-01352
55-3 GASKET, HEAD T=1.5 127616-01333
56 GASKET, HEAD T=1.3 127610-01340
57 GASKET, HEAD T=1.4 127610-01360
57-1 GASKET, HEAD T=1.4 127610-01361
57-2 GASKET, HEAD T=1.4 127616-01353
58-1 GASKET, HEAD T=1.6 127610-01371
58-2 GASKET, HEAD T=1.6 127610-01372
58-3 GASKET, HEAD T=1.6 127616-01343
59-1 COCK ASSY, 1/4 119620-49290
63 O-RING, 1AP32.0 24311-000320
64 BOLT, M8X 22 PLATED 26106-080222
65 BOLT, M8X 22 PLATED 26106-080222
66 LINER ASSY, CYLINDER 727610-01900
68 O-RING, 1AG105.0 24321-001050
69-1 WASHER, SEAL 8 22190-080003
70 BOLT, M8X 25 PLATED 26106-080252
71 BOLT, M8X 30 PLATED 26106-080302
72 NUT, M8 26366-080002
72-1 NUT, M8 26306-080002
73 STUD, M8X 40 26212-080402
74 GASKET 123688-39830
75 FLANGE, 20 23221-200001
76 BOLT, M8X 25 26014-080252
77 WASHER, 8 22137-080000
78 WASHER, SEAL 10 22190-100003
79-1 PIPE ASSY, OIL 127610-39831
84-2 GASKET, CYLINDER 127675-39040
85 BOLT, M8X 45 PLATED 26106-080452
86 BOLT, M8X 35 PLATED 26106-080352
87 BEARING, 0.25 US 127610-02840
87-1 METAL ASSY, MAIN .25 727687-02840
89 BEARING, 0.50 US 127610-02870
89-1 METAL ASSY, MAIN .50 727687-02870
91 BEARING, 0.25 US 127610-02850
91-1 METAL ASSY, MAIN .25 727687-02850
94 METAL, MAIN 0.50 US 127610-02880
94-1 METAL ASSY, 0.50 US 727687-02880
97 BEARING, 0.25 US 127610-02860
97-1 METAL ASSY, MAIN .25 727687-02860
100 METAL, MAIN 0.50 US 127610-02890
100-1 METAL ASSY, MAIN .50 727687-02890
