YANMAR 127610-42160 Cam, Impeller T=4

Write a Review
$116.55
SKU:
127610-42160
Schematic Object Key:
5

YANMAR 127610-42160 Cam, Impeller T=4

$116.55

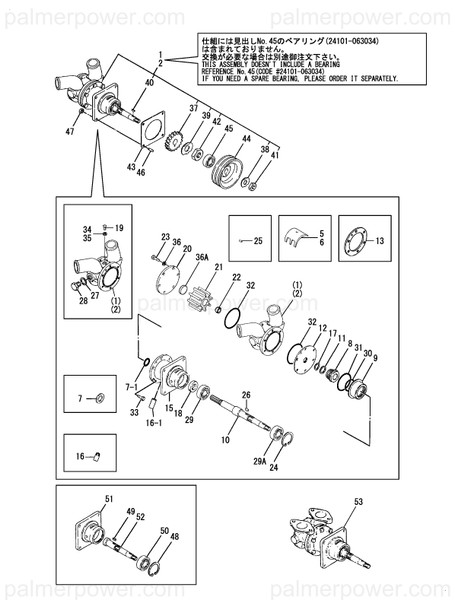

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

YANMAR 127610-42160 Cam, Impeller T=4

Schematic Object Key : 5

Product Description : CAM, IMPELLER T=4

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Other Components:

Ref Description Part No.
1 PUMP ASSY, WATER 727650-42100
5 CAM, IMPELLER T=4 127610-42160
7-1 O-RING, 1AP20.0 24311-000200
8 SEAL, MECHANICAL 123472-42060
9 CASE, MECANICAL SEAL 127610-42070
10 SHAFT, WATER PUMP 127610-42080
11 COLLAR 123472-42090
12 PLATE, WEAR 127610-42100
15 CASE, BEARING 127610-42121
15-1 CASE, BEARING 127610-42421
16-1 JOINT, DRAIN 120130-42130
17 CIRCLIP, 18 123472-42140
18 SEAL, TC203508 123472-42150
19 SCREW, CAM 127610-42150
20 COVER, PUMP SIDE 123325-42170
21 IMPELLER 127610-42200
21-1 IMPELLER, PUMP 127610-42270
22 SEAL, IMPELLER BOSS 127610-42230
23-1 BOLT, M6X 12 26113-060122
24 RING, 47 22252-000470
25 PARALLEL PIN 4X10 22312-040100
26 KEY, 5X 16 22512-050160
29 BEARING, BALL 6204 24101-062044
29A BEARING, BALL 6204U 24102-062044
30 O-RING, 1AG40.0 24321-000400
31 O-RING, 1AG60.0 24321-000600
32 O-RING, 1AG70.0 24321-000700
33 BOLT, M6X 20 26113-060202
34 GASKET, 6X1.0 23414-060000
36 WASHER, 6 126630-42710
36A COVER, IMPELLER 127610-42220
37 GEAR, PUMP DRIVE 127610-42320
38 WASHER, PULLEY 127610-42350
39 WASHER, SHAFT 127610-42440
40 KEY, WOODRUFF 4X13 22522-040130
41 NUT, M14 26606-140002
42 NUT, M20 26736-200002
43 GASKET, WATER PUMP 127610-42190
44 V-PULLEY, PUMP 127610-42450
45 BEARING, BALL 6303 24101-063034
46 STUD, M8X 20 26216-080202
47 NUT, M8 26366-080002
47-1 NUT, M8 26306-080002
48 RING, 47 22252-000470
49 KEY, 5X 16 22512-050160
50 BEARING, BALL 6204 24101-062044
51 CASE, BEARING 41641-550500
52 SHAFT, GEAR 41641-550510
53 PUMP ASSY, WATER 43600-500590
