YANMAR 127616-11100 Valve, Intake

Write a Review
$83.73
SKU:
127616-11100
Schematic Object Key:
18

YANMAR 127616-11100 Valve, Intake

$83.73

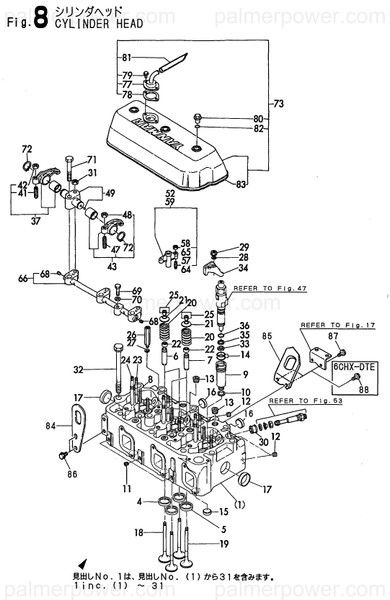

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

YANMAR 127616-11100 Valve, Intake

Schematic Object Key : 18

Product Description : VALVE, INTAKE 127616-11100

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Other Components:

Ref Description Part No.
1 HEAD ASSY, CYLINDER 727616-11700
4 SEAT, INTAKE VALVE 127616-11080
5 SEAT, EXHAUST VALVE 127616-11090
6 GUIDE, VALVE 127616-11160
7 GUIDE, VALVE 127616-11170
8 GUIDE, BRIDGE 127616-11530
9 SLEEVE 127616-11850
10 GASKET 127616-11860
11 PLUG, R01 23876-010000
12 PLUG, R02 23876-020000
13 PLUG, R04 23876-040000
14 O-RING, 1AG25.0 24321-000250
15 PLUG, 25 27241-250000
16 PLUG, 28 27241-280000
17 PLUG, 40 27241-400000
18 VALVE, INTAKE 127616-11100
19 VALVE, EXHAUST 127616-11110
20 SPRING, VALVE 127616-11120
21 RETAINER, SPRING 127616-11180
22 SEAL, VALVE STEM 127616-11280
23 STUD 127616-11770
24 STUD 127616-11780
25 COTTER, 8 27310-080001
26 JOINT, PIPE 127616-11790
27 WASHER, SEAL 6 22190-080002
28 WASHER 127616-11920
29 NUT, M8 26366-080002
30 GASKET 127616-11910
31 NUT 122710-11240
32 BOLT, HEAD 127616-01200
33 INSULATOR, NOZZLE 127610-11851
34 RETAINER, NOZZLE 127616-11900
35 GASKET, NOZZLE 127610-11860
36 O-RING, 1AP18.0 24311-000180
37 ARM ASSY, ROCKER 727616-11650
41 SCREW, VALVE ADJUST 127616-11230
42 NUT 122710-11240
43 ARM ASSY, ROCKER 727616-11660
47 SCREW, VALVE ADJUST 127616-11230
48 NUT 122710-11240
49 BRACKET, ROCKER ARM 127616-11250
52 BRIDGE ASSY, VALVE 727616-11900
57 SCREW, VALVE 120320-11520
58 NUT, LOCK M8 26756-080002
59 BRIDGE ASSY, VALVE 727616-11910
64 SCREW, VALVE 120320-11520
65 NUT, LOCK M8 26756-080002
66 BRACKET 127616-11940
68 PLUG, R005 23876-005000
69 BOLT 127616-11960
70 GASKET, 8X1.0 23414-080000
71 BOLT, M12X 75 PLATED 26116-120752
72 RING, 22 22242-000220
73 BONNET ASSY, HEAD 727616-11520
77 BODY, BREATHER 127610-11320
78 GASKET, BONNET 127610-11331
79 BOLT, M6X 14 PLATED 26106-060142
80 KNOB 124160-11360
81 PIPE, 10X 750 23064-100750
82 O-RING, 1AP12.0 24311-000120
83 GASKET, BONNET 127616-11340
84 LIFTER, A 127410-07921
85 LIFTER 127695-07930
86 BOLT, M10X 18 PLATED 26106-100182
87 BOLT, M10X 28 PLATED 26106-100282
