YANMAR 127672-03111 Pipe, Breather

Write a Review
$282.36
SKU:
127672-03111
Schematic Object Key:
90-1

YANMAR 127672-03111 Pipe, Breather

$282.36

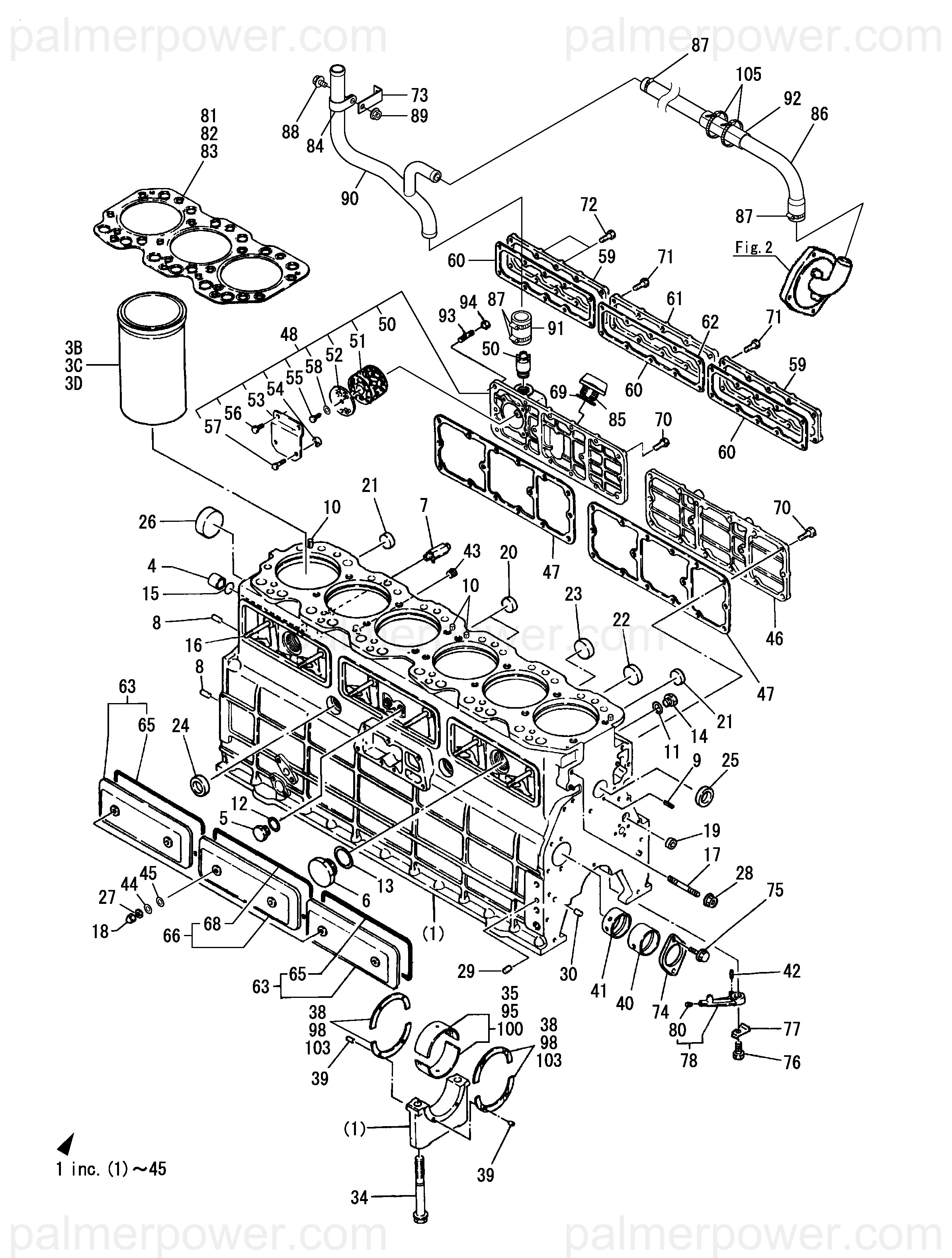

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

YANMAR 127672-03111 Pipe, Breather

Schematic Object Key : 90-1

Product Description : PIPE, BREATHER 127672-03111

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Other Components:

Ref Description Part No.
1 BLOCK ASSY, CYLINDER 727695-01560
3B SLEEVE, CYLINDER A 127692-01210
3C SLEEVE, CYLINDER B 127692-01220
3D SLEEVE, CYLINDER C 127692-01230
4 PIPE 127610-01691
5 PLUG, M25X2 144626-11970
6 PLUG, M36X1.5 127610-44900
7 COCK ASSY, 1/4 119620-49290
8 PIN, PARALLEL M10X20 22312-100200
9 PIN, SPRING 6.0X16 22351-060016
10 PIN, SPRING 8.0X16 22351-080016
11 GASKET, 12X1.0 23414-120016
12 GASKET, 25X1.0 23414-250031
13 GASKET, 36X1.0 23414-360000
14 PLUG, 12 23887-120002
15 O-RING, 1AP24.0 24311-000240
16 STUD, M8X 45 26216-080452
17 STUD M 8X 50 26212-080502
17-1 STUD,BOLT 8 X 50 26218-080502
18 NUT, CAP M8 26657-080002
19 PLUG, 18 27241-180000
20 PLUG 30 27241-300000
21 PLUG 30 27241-300000
22 PLUG, 35 27241-350000
23 PLUG, 35 27241-350000
24 PLUG, 35 27241-350000
25 PLUG, 35 27241-350000
26 PLUG, 50 27241-500000
27 WASHER, SEAL 8 22190-080003
28 NUT, M8 26366-080002
28-1 NUT, M8 26306-080002
29 PIN, PARALLEL M10X16 22312-100160
30 PIN, PARALLEL M10X16 22312-100160
34 BOLT, METAL CAP 127695-02070
35 BEARING, MAIN 127695-02090
38 BEARING, THRUST 127695-02190
39 PIN, PARALLEL M4X 8 22312-040080
40 BUSH, CAMSHAFT 127695-02400
41 BUSH, CAMSHAFT 127695-02420
42 SPRING PIN 4X10 22353-040010
43 PLUG, R01 23876-010000
44 WASHER, 8 22137-080000
45 WASHER, SEAL 10 22190-100003
46 COVER, BLOCK SIDE A 127610-01402
47 GASKET, SIDE COVER 127675-01410
48 COVER, CRANK CASE 127692-01450
50 JOINT, PIPE 127610-03220
51 WOOL, STEEL 127610-03050
52 OIL THROWER 127610-03060
53 PLATE, BAFFLE 127695-03090
54 SPACER 127610-03150
55 BOLT, M8X 14 PLATED 26106-080142
56 BOLT, M8X 16 PLATED 26106-080162
57 BOLT, M8X 22 PLATED 26106-080222
58 WASHER 8 22131-080000
59 COVER, WATER A 127610-01751
60 GASKET, COVER A 127675-01790
61 COVER, WATER B 127610-01770
62 GASKET, COVER B 127675-01800
63 COVER ASSY 727610-01800
65 O-RING, A 127610-01841
66 COVER ASSY 727610-01810
68 O-RING, B 127610-01851
69 O-RING, 1AP32.0 24311-000320
70 BOLT, M8X 22 PLATED 26106-080222
71 BOLT, M8X 22 PLATED 26106-080222
72 BOLT, M8X 25 PLATED 26106-080252
73 JOINT 42215-559130
74 PLATE, THRUST 127610-02160
75 BOLT, M8X 18 26013-080182
76 BOLT, PIPE JOINT M10 124160-39140
77 WASHER, NOZZLE 127610-39370
78 NOZZLE, COOLING 127692-39420
80 SCREW, M5X 5 26911-050052
81 GASKET, HEAD T=1.4 127695-01340
81-1 GASKET, HEAD T=1.4 127695-01341
82 GASKET, HEAD T=1.5 127695-01350
82-1 GASKET, HEAD T=1.5 127695-01351
83 GASKET, HEAD T=1.6 127695-01360
83-1 GASKET, HEAD T=1.6 127695-01361
84 CLAMP, A27X12 23297-250081
85 COVER, FILLER 124160-01751
86 HOSE, BREATHER 127672-03090
87 CLAMP, 35 23000-035000
88 BOLT, M8X 14 PLATED 26106-080142
89 NUT, M8 26366-080002
89-1 NUT, M8 26306-080002
90 PIPE, BREATHER 127672-03110
90-1 PIPE, BREATHER 127672-03111
91 PIPE, BREATHER 122780-03260
92 PROTECTOR 119575-59300
93 STUD, M8X 18 26226-080182
94 NUT, M8 26366-080002
94-1 NUT, M8 26306-080002
95 BEARING, 0.25 US 127695-02250
98 BEARING, THRUST 0.25 127695-02270
100 BEARING, 0.50 US 127695-02260
103 BEARING, THRUST 0.50 127695-02280
105 BAND, 140 121750-59890
