YANMAR 127689-33500 Cooler Assy, Oil

Write a Review
$4,459.96
SKU:
127689-33500

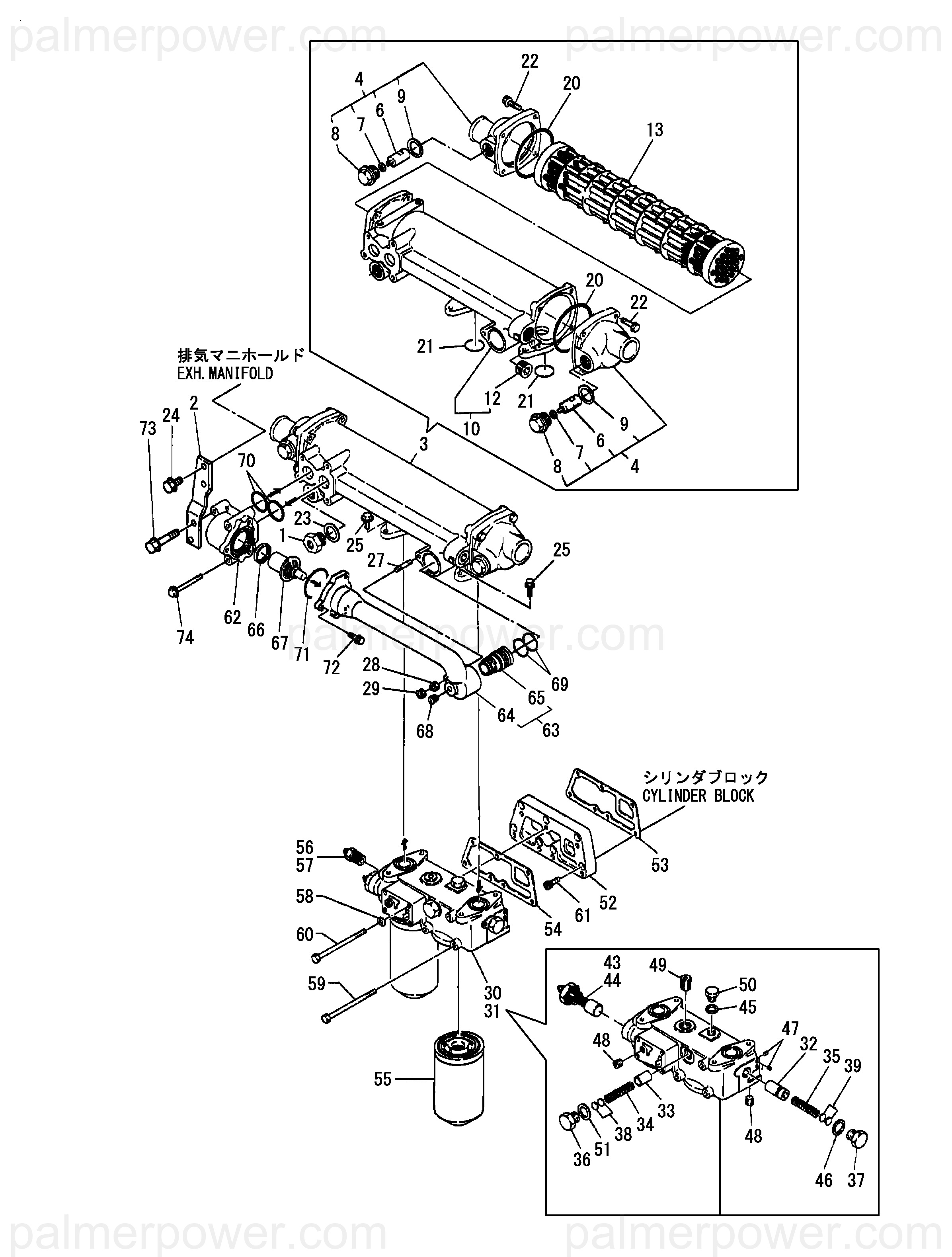

Schematic Object Key:
3

YANMAR 127689-33500 Cooler Assy, Oil

$4,459.96

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

YANMAR 127689-33500 Cooler Assy, Oil

Schematic Object Key : 3

Product Description : COOLER ASSY, OIL

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Other Components:

Ref Description Part No.
1 JOINT, SWITCH 128610-33380
2 SUPPORT 127689-33451
3 COOLER ASSY, OIL 127689-33500
4 COVER ASSY, COOLER 727610-33510
6 ZINC, SCREW20X37 27210-200370
7 GASKET 123210-09310
8 PLUG 122780-09320
9 GASKET, 25X1.0 23414-250000
10 BODY ASSY, COOLER 127688-33090
12 PLUG, R06 23876-060000
13 PIPE ASSY, COOLING 127688-33191
20 O-RING, 1AP90.0 24311-000900
21 O-RING, 1AG35.0 24321-000350
22 BOLT, M8X 30 PLATED 26106-080302
23 GASKET, 24X1.0 23414-240000
24 BOLT, M8X 18 PLATED 26106-080182
25 BOLT, M8X 22 PLATED 26106-080222
27 STUD, M8X 55 26216-080552
28 NUT, M8 26306-080002
29 NUT, LOCK M8 26756-080002
30 BRACKET.FILTER 127620-35100
31 BRACKET.FILTER 127695-35200
32 VALVE, CONTROL 123678-34030
33 VALVE, CONTROL 135310-34030
34 SPRING, VALVE 123672-34040
35 SPRING, VALVE 123678-34040
36 PLUG, VALVE 123672-34070
37 RETAINER, SPRING 127620-34070
38 SHIM, ADJUST 123672-34350
39 SHIM, ADJUST 123672-34350
43 VALVE ASSY, RELIEF 125613-35300
44 VALVE SET, RELIEF 126634-35300
45 GASKET, 16 124465-44950
46 GASKET, 22X1.0 23414-220000
47 PLUG, R005 23876-005000
48 PLUG, R02 23876-020000
49 PLUG, R04 23876-040000
50 PLUG 23881-160002
51 WASHER, SEAL 22 22190-220002
52 SPACER 127689-35110
53 GASKET, FILTER 127675-35120
53-1 GASKET 127689-35120
54 GASKET 127689-35120
55 FILTER, OIL 127695-35160
56 JOINT 127687-39820
57 JOINT 43550-501340
58 WASHER, 8 22137-080000
59 BOLT, M8X115 PLATED 26106-081152
60 BOLT, M8X130 PLATED 26116-081302
61 BOLT, M8X 25 26450-080252
62 CASE, THERMOSTAT 128610-38101
63 COVER 127688-38200
64 COVER 127688-38210
65 JOINT, PIPE 127688-38220
66 SEAL, OIL 120445-48570
67 THERMOSTAT, 71 120445-48610
68 PLUG, R01 23876-010000
69 O-RING, 1AG30.0 24321-000300
70 O-RING, 1AG35.0 24321-000350
71 O-RING, 1AG55.0 24321-000550
72 BOLT, M8X 18 PLATED 26106-080182
73 BOLT, M8X 45 PLATED 26106-080452
74 BOLT, M8X 75 PLATED 26106-080752
