YANMAR 127692-33190 Pipe Assy, Cooling

Write a Review
$1,600.31
SKU:
127692-33190
Schematic Object Key:
18

YANMAR 127692-33190 Pipe Assy, Cooling

$1,600.31

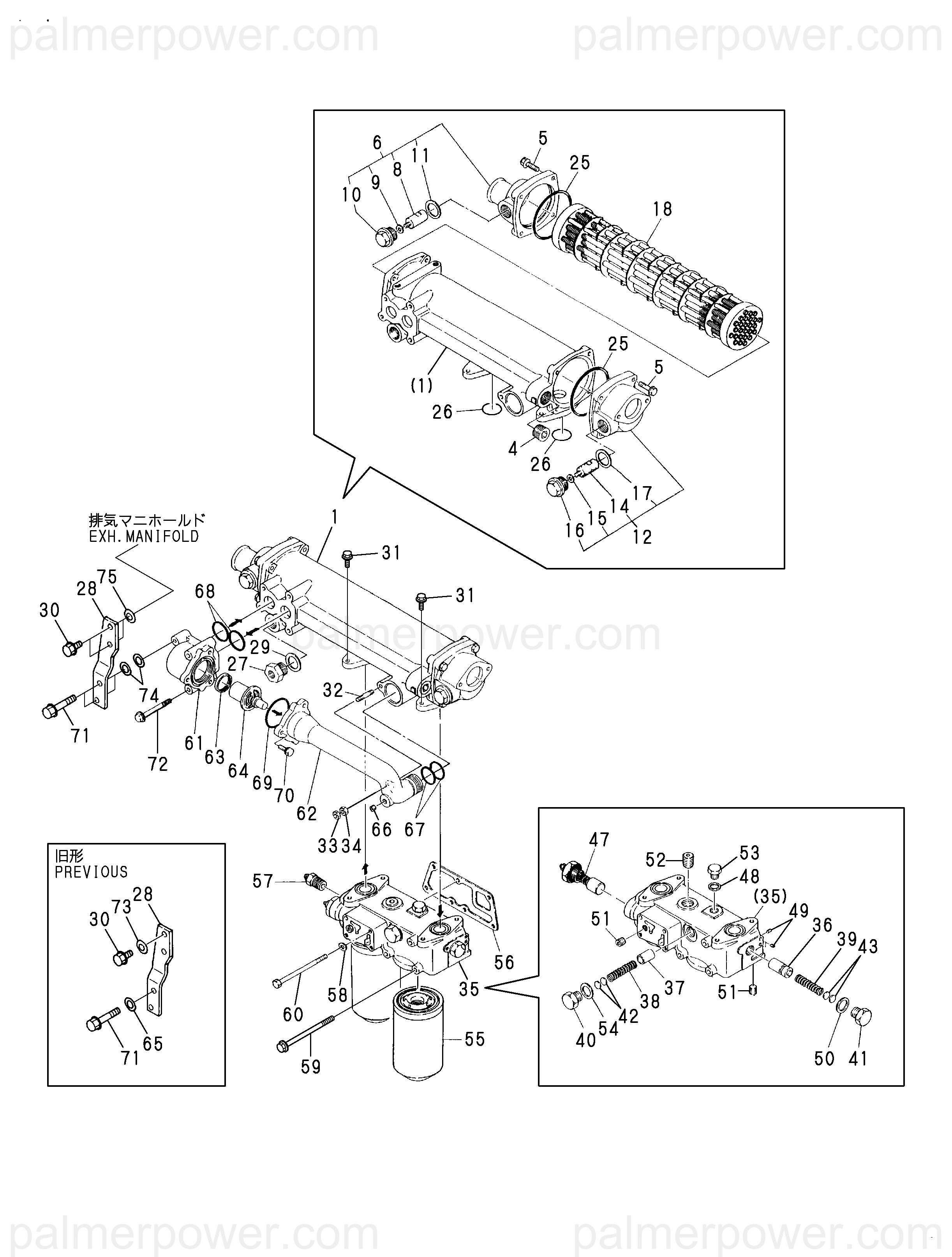

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

YANMAR 127692-33190 Pipe Assy, Cooling

Schematic Object Key : 18

Product Description : PIPE ASSY, COOLING 127692-33190

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Other Components:

Ref Description Part No.
1 COOLER ASSY, OIL 127692-33500
4 PLUG, R06 23876-060000
5 BOLT, M8X 30 PLATED 26106-080302
6 COVER ASSY 727695-33510
8 ZINC, SCREW20X37 27210-200370
9 GASKET 123210-09310
10 PLUG 122780-09320
11 GASKET, 25X1.0 23414-250000
12 COVER ASSY, COOLER 727695-33500
14 ZINC, SCREW20X37 27210-200370
15 GASKET 123210-09310
16 PLUG 122780-09320
17 GASKET, 25X1.0 23414-250000
18 PIPE ASSY, COOLING 127692-33190
25 O-RING, 1AP90.0 24311-000900
26 O-RING, 1AG35.0 24321-000350
27 JOINT, SWITCH 128610-33380
28 SUPPORT 127695-33751
29 GASKET, 24X1.0 23414-240000
30 BOLT, M8X 20 PLATED 26106-080202
31 BOLT, M8X 22 PLATED 26106-080222
32 STUD, M8X 55 26216-080552
33 NUT, LOCK M8 26756-080002
34 NUT, M8 26306-080002
35 BRACKET.FILTER 127620-35100
35A BRACKET.FILTER 127695-35200
36 VALVE, CONTROL 123678-34030
37 VALVE, CONTROL 135310-34030
38 SPRING, VALVE 123672-34040
39 SPRING, VALVE 123678-34040
40 PLUG, VALVE 123672-34070
41 RETAINER, SPRING 127620-34070
42 SHIM, ADJUST 123672-34350
43 SHIM, ADJUST 123672-34350
47 VALVE ASSY, RELIEF 125613-35300
47A VALVE SET, RELIEF 126634-35300
48 GASKET, 16 124465-44950
49 PLUG, R005 23876-005000
50 GASKET, 22X1.0 23414-220000
51 PLUG, R02 23876-020000
52 PLUG, R04 23876-040000
53 PLUG 23881-160002
54 WASHER, SEAL 22 22190-220002
55 FILTER, OIL 127695-35150
55-1 FILTER, OIL 127695-35160
56 GASKET, FILTER 127675-35120
57 JOINT 127687-39820
57A JOINT 43550-501340
58 WASHER, 8 22137-080000
59 BOLT, M8X115 PLATED 26106-081152
60 BOLT, M8X130 PLATED 26116-081302
61 CASE, THERMOSTAT 128610-38101
62 COVER 127688-38200
63 SEAL, OIL 120445-48570
64 THERMOSTAT, 71 120445-48610
65 WASHER, 8 22137-080000
66 PLUG, R01 23876-010000
67 O-RING, 1AG30.0 24321-000300
68 O-RING, 1AG35.0 24321-000350
69 O-RING, 1AG55.0 24321-000550
70 BOLT, M8X 18 PLATED 26106-080182
71 BOLT, M8X 55 PLATED 26106-080552
72 BOLT, M8X 75 PLATED 26106-080752
73 WASHER, 8 22137-080000
74 WASHER 106100-55800
75 WASHER, 8 22117-080000
