YANMAR 127692-61550 Idle Sub

Write a Review
$35.15
SKU:
127692-61550
Schematic Object Key:
83

YANMAR 127692-61550 Idle Sub

$35.15

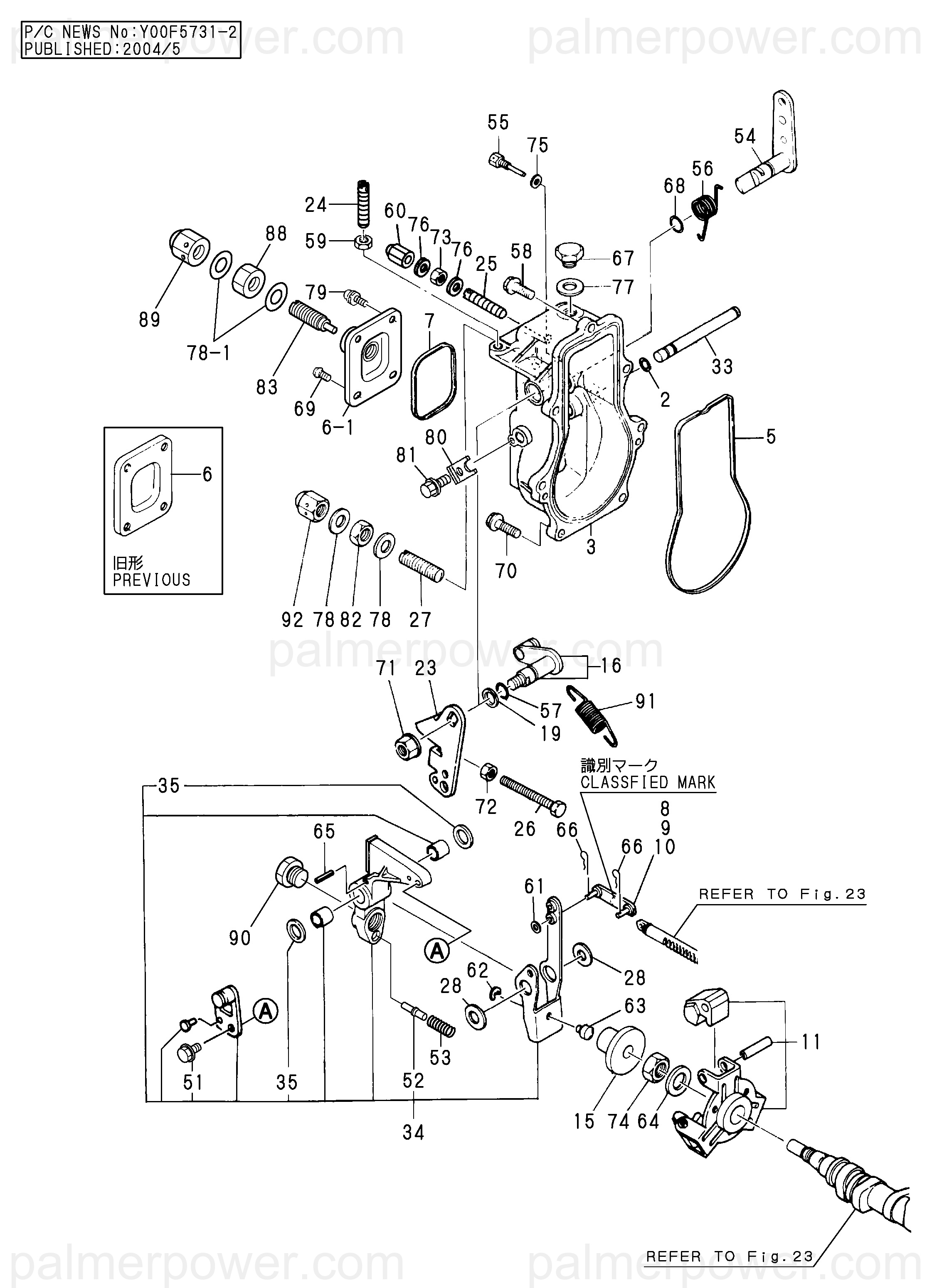

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

YANMAR 127692-61550 Idle Sub

Schematic Object Key : 83

Product Description : IDLE 127692-61550

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Other Components:

Ref Description Part No.
2 O-RING, S6 129155-51280
3 CASE, GOVERNOR 129155-61013
5 GASKET 129155-61050
5-1 GASKET 129155-61051
6 COVER, GOVERNOR CASE 129155-61060
6-1 COVER, GOVERNOR CASE 129690-61060
7 GASKET 129155-61070
7-1 GASKET 129155-61071
8 LINK, L=30 MARK 0 129155-61120
9 LINK, L=31 MARK 1 129155-61130
10 LINK, L=30.5 MARK 05 129155-61140
11 WEIGHT ASSY,GOVERNOR 129155-61201
11-1 WEIGHT ASSY,GOVERNOR 129155-61202
15 SLEEVE 129155-61341
16 SHAFT ASSY 129100-61400
19 SPACER 129155-61430
23 LEVER, CONTROL 129499-61440
24 BOLT, LIMITER 129155-61450
25 BOLT, LIMITER 129155-61450
26 BOLT, IDLE 129155-61460
27 LIMITER ASSY, FUEL 129460-61450
28 SPACER ASSY 129155-61480
33 SHAFT,GOVERNOR LEVER 119660-61491
33-1 SHAFT 119660-61590
34 LEVER ASSY, GOVERNOR 129570-61500
34-1 LEVER ASSY, GOVERNOR 129270-61500
35 SHIM SET 174307-51700
51 BOLT, M6X 10 PLATED 26106-060102
52 PIN, GUIDE 129190-61590
53 SPRING, FUEL CONTROL 129470-61650
54 LEVER, STOP 129473-61801
55 PIN 129155-61810
56 SPRING, RETURN 129100-61821
57 O-RING, S10 129155-61830
58 BOLT 129155-61950
59 NUT, M6 124550-66370
60 NUT, CAP 119600-66840
61 WASHER, 4 22117-040000
62 RING, E- 4 22272-000040
63 SHIFTER 129155-61540
64 WASHER, 12 22287-120000
65 PIN, SPRING 3.0X16 22351-030016
66 PIN, SNAP 4 22372-040000
67 PLUG, 10 23887-100002
68 O-RING, 1AP10A 24311-240100
69 SCREW, M5X10 26022-050102
70 BOLT, M6X 20 PLATED 26106-060202
71 NUT, M8 26366-080002
72 NUT, LOCK M6 26756-060002
73 NUT, LOCK M6 26756-060002
74 NUT, LOCK M12 26776-120002
75 SEAL WASER 6 22190-060003
76 SEAL WASER 6 22190-060003
77 WASHER, SEAL 10 22190-100002
78 WASHER, SEAL 12 22190-120002
78-1 WASHER, SEAL 12 22190-120002
79 SCREW, M5X10 26023-050102
80 RETAINER, SHAFT 119660-61901
81 BOLT, M6X 10 PLATED 26106-060102
82 NUT, LOCK M12 26776-120002
82-1 NUT, M12 26736-120002
83 IDLE 127692-61550
88 NUT, LOCK M12 26777-120002
89 NUT, CAP 129100-61930
90 PLUG 129470-61590
91 SPRING, GOVERNOR 129100-61730
92 NUT, CAP 129100-61930

YANMAR 127692-61550 Idle Sub
