YANMAR 127698-01200 Bolt, Cylinder Head

Write a Review
$32.83
SKU:
127698-01200
Schematic Object Key:
31

YANMAR 127698-01200 Bolt, Cylinder Head

$32.83

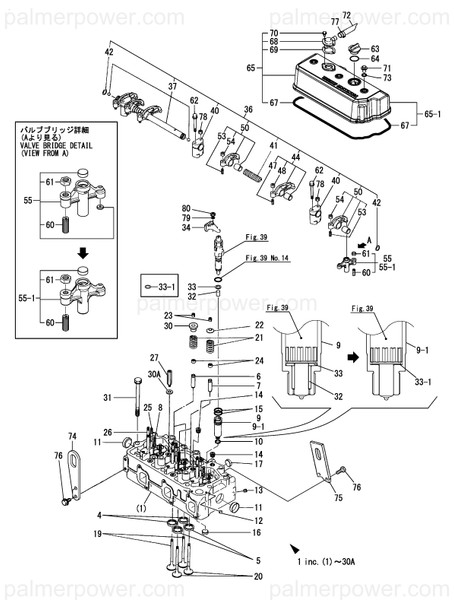

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

YANMAR 127698-01200 Bolt, Cylinder Head

Schematic Object Key : 31

Product Description : BOLT, HEAD 127698-01200

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Other Components:

Ref Description Part No.
1 HEAD ASSY, CYLINDER 127698-11500
1-1 HEAD ASSY, CYLINDER 127698-11501
4 SEAT, VALVE 127698-11080
5 SEAT, VALVE 127698-11090
6 GUIDE, VALVE 127616-11160
7 GUIDE, VALVE 127616-11170
8 GUIDE, BRIDGE 127616-11530
9 SLEEVE, NOZZLE 127698-11850
9-1 SLEEVE, NOZZLE 127698-11851
10 GASKET 127692-11861
11 PLUG, 40 27241-400000
12 PLUG, R005 23876-005000
13 PLUG, R02 23876-020000
14 PLUG, R04 23876-040000
15 O-RING, 1AG25.0 24321-000250
16 PLUG, 22 27241-220000
17 PLUG, 28 27241-280000
19 VALVE, SUCTION 127698-11100
20 VALVE, EXHAUST 127698-11110
21 SPRING, VALVE 127677-11120
22 RETAINER, SPRING 127616-11180
23 COTTER, 8 27310-080001
24 SEAL, VALVE STEM 127616-11280
25 STUD 127616-11770
26 STUD 127616-11780
27 JOINT, PIPE 127616-11790
30 ROTATOR, VALVE 127698-11560
30A WASHER, SEAL 6 22190-080002
31 BOLT, HEAD 127698-01200
32 INSULATOR 127698-11920
33 PACKING, VALVE 127698-11930
33-1 GASKET,F.I.NOZZLE 127698-11870
34 RETAINER, NOZZLE 127616-11900
36 SHAFT ASSY 727695-11501
37 SHAFT ASSY, ARM 127695-11650
37-1 SHAFT ASSY, ARM 127695-11651
40 BRACKET, ROCKER ARM 127695-11260
41 SPRING, ROCKER ARM 128610-11280
42 RING, 20 22242-000200
44 ARM ASSY, ROCKER 127695-11380
47 SCREW, VALVE ADJUST 127616-11230
48 NUT 122710-11240
50 ARM ASSY, ROCKER 127695-11390
53 SCREW, VALVE ADJUST 127616-11230
54 NUT 122710-11240
55 BRIDGE ASSY, VALVE 727692-11910
55-1 BRIDGE ASSY, VALVE 727698-11810
60 SCREW, VALVE 120320-11520
61 NUT, LOCK M8 26756-080002
62 BOLT, M8X 70 PLATED 26106-080702
63 COVER, FILLER 124160-01751
64 O-RING, 1AP32.0 24311-000320
65 BONNET ASSY, HEAD 127695-11350
65-1 BONNET ASSY, HEAD 127695-11351
67 GASKET 127695-11310
68 BREATHER 127695-11320
69 GASKET, BONNET 127610-11331
70 BOLT, M6X 14 PLATED 26106-060142
71 KNOB 124160-11360
72 PIPE, 10X 750 23064-100750
73 O-RING, 1AP12.0 24311-000120
74 LIFTER, A 127410-07921
75 LIFTER 127695-07930
76 BOLT, REAMER 144626-54572
77 CLIP, HOSE 12 124766-59050
78 NUT 122710-11240
79 WASHER 127616-11920
80 NUT, M8 26306-080002
