YANMAR 127881-51340 Holder Assy,Delivery

Write a Review
$162.98
SKU:
127881-51340

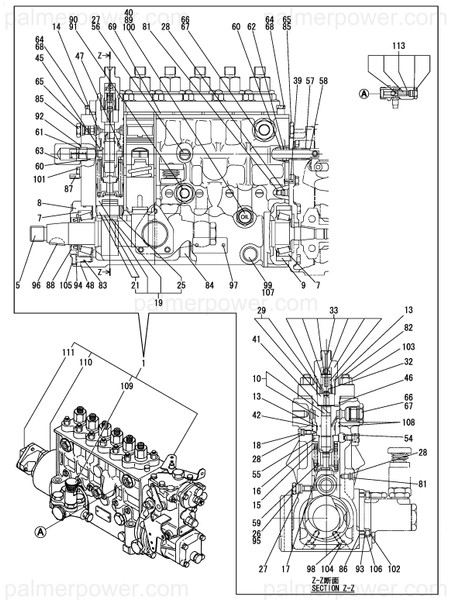

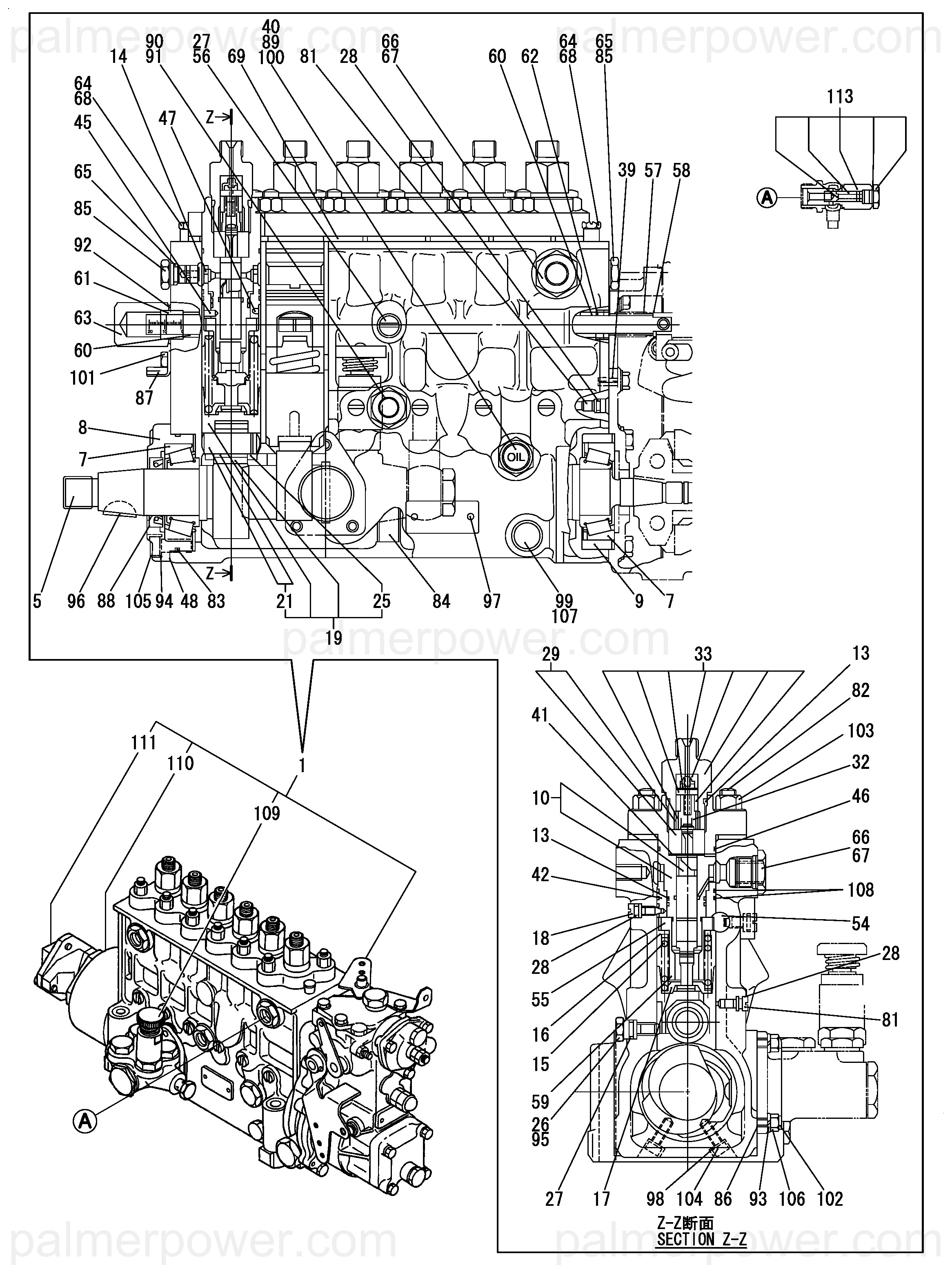

Schematic Object Key:
33

YANMAR 127881-51340 Holder Assy,Delivery

$162.98

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

YANMAR 127881-51340 Holder Assy,Delivery

Schematic Object Key : 33

Product Description : HOLDER ASSY,DELIVERY 127881-51340

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Other Components:

Ref Description Part No.
1 PUMP ASSY, INJECTION 727881-51320
1A PUMP ASSY, INJECTION 727881-51330
5 CAMSHAFT 127881-51030
7 BEARING 144626-51050
8 SUPPORT, CAMSHAFT 148016-51060
9 SUPPORT, CAMSHAFT B 144626-51070
10 PLUNGER ASSY 127881-51100
13 O-RING, P21 127692-51142
14 DEFLECTOR 127692-51151
15 SPRING, PLUNGER 127695-51160
16 RETAINER, SPRING A 127692-51170
17 RETAINER, SPRING 148688-51180
18 STOPPER 144626-51191
19 TAPPET ASSY 148218-51200
21 ROLLER ASSY, TAPPET 148218-51250
25 CIRCLIP 148688-51250
26 STOPPER 144626-51271
27 O-RING, P9 144626-51281
28 O-RING, P6 144626-51290
29 VALVE ASSY, DELIVERY 127881-51300
32 SPRING, DELIVERY 126618-51330
33 HOLDER ASSY,DELIVERY 127881-51340
39 PIN, SPRING 5.0X12 22351-050012
40 WASHER, SEAL 16 22190-160002
41 GASKET, DELIVERY 148218-51390
42 COLLAR ASSY 127697-51390
45 PIN 127692-51420
46 O-RING 127695-51420
47 PIN 144626-51430
48 SHIM SET, CAMSHAFT 144626-51451
54 RACK, CONTROL 127695-51500
55 PINION 127692-51510
56 SCREW 144626-51521
57 SPRING 135410-51530
58 WASHER 135410-51540
59 CIRCLIP 144626-51540
60 BUSH, RACK 144626-51580
61 SCREW 144626-51590
62 SCREW 144626-51600
63 NUT, CAP 144626-51641
64 BOLT, L=21 138613-51660
65 O-RING, 4DP10.0 24316-000100
66 PLUG 144626-51670
67 O-RING, 4D19018 24356-190180
68 WASHER, SEAL 6 22190-060002
69 SHIM SET, ADJUSTING 148688-51700
81 PLUG 144626-51730
82 BOLT 144626-51800
83 O-RING, S71 144626-51840
84 BEARING 148688-51850
85 PROTECTOR, SPILL 126618-51860
86 GASKET 124410-51861
87 POINTER 145647-51880
88 OIL SEAL TC304508 136600-42480
89 LABEL 124610-51970
90 PLUG 144626-51940
91 O-RING, 1016 144626-51950
92 WASHER, SEAL 18 22190-180002
93 WASHER, SPRING 6 22217-060000
94 WASHER, 8 22287-080000
95 WIRE, 1.0 120325-61100
96 KEY, WOODRUFF 6X22 22522-060220
97 RIVET, 2.3X 3 22621-230030
98 WASHER, SEAL 144626-51700
99 PLUG, 12 23887-120002
100 PLUG, 16 23887-160002
101 BOLT, M6X 12 PLATED 26106-060122
102 STUD, M6X 16 26226-060162
103 NUT, M10 26376-100002
104 BOLT 148688-51840
105 BOLT, M8X 20 26450-080202
106 NUT, M6 26716-060002
107 WASHER, SEAL 12 22190-120002
108 O-RING 152673-51360
109 PUMP, FUEL FEED 128625-52010
110 TIMER 127881-54810
111 JOINT ASSY 127881-54990
113 VALVE ASSY, OVERFLOW 127881-51950
113-1 VALVE ASSY,OVER FLOW 127881-51951

YANMAR 127881-51340 Holder Assy,Delivery
