YANMAR 128610-11130 Spring, Valve Inner

Write a Review
$22.78
SKU:
128610-11130
Schematic Object Key:
19

YANMAR 128610-11130 Spring, Valve Inner

$22.78

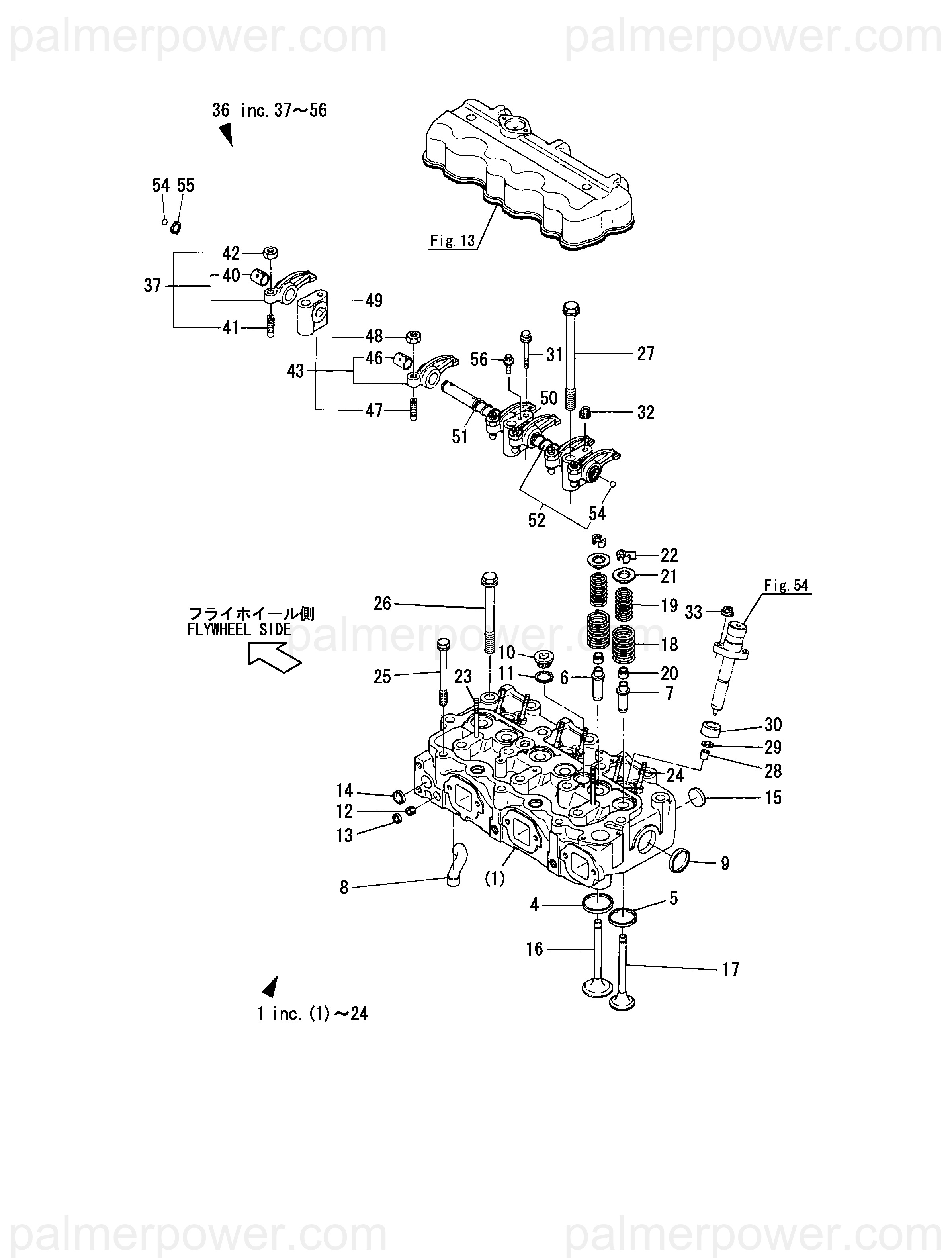

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

YANMAR 128610-11130 Spring, Valve Inner

Schematic Object Key : 19

Product Description : SPRING, VALVE INNER

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Other Components:

Ref Description Part No.
1 HEAD ASSY, CYLINDER 728610-11700
4 SEAT, INTAKE VALVE 128610-11080
5 SEAT, EXHAUST VALVE 128610-11090
6 GUIDE, VALVE 128610-11160
7 GUIDE, VALVE 128610-11170
8 PIPE 128610-11850
9 PLUG, 45 128610-11950
10 PLUG, M25X2 144626-11970
11 GASKET, 25X1.0 23414-250031
12 PLUG, R03 23871-030000
13 PLUG, 20 27241-200000
14 PLUG, 22 27241-220000
15 PLUG, 35 27241-350000
16 VALVE, INTAKE 128610-11100
17 VALVE, EXHAUST 128610-11110
17-1 VALVE, EXHAUST 128610-11111
18 SPRING, VALVE OUTER 128610-11120
19 SPRING, VALVE INNER 128610-11130
20 SEAL, VALVE STEM 126480-11150
21 RETAINER, SPRING 128610-11180
22 COTTER, VALVE 126650-11190
22-1 COTTER, VALVE 126650-11191
23 STUD 128610-11350
24 STUD 126650-11770
25 BOLT, HEAD 128610-01190
26 BOLT, HEAD 128610-01200
27 BOLT, HEAD 128610-01210
28 INSULATOR 128610-11900
29 GASKET, NOZZLE 128610-11910
30 SEAL, NOZZLE 126650-11960
31 BOLT, M8X 70 PLATED 26106-080702
32 NUT, M8 26366-080002
33 NUT, M8 26366-080002
34 INSULATOR 128617-11900
35 GASKET, NOZZLE 128617-11910
36 SUPPORT ASSY, ARM 728610-11500
37 ARM ASSY, ROCKER 728610-11650
40 BUSH, ROCKER ARM 128610-11220
41 SCREW, VALVE 144626-11240
42 NUT, LOCK M12 26776-120002
43 ARM ASSY, ROCKER 728610-11660
46 BUSH, ROCKER ARM 128610-11220
47 SCREW, VALVE 144626-11240
48 NUT, LOCK M12 26776-120002
49 BRACKET, ROCKER ARM 128610-11261
50 BRACKET, ROCKER ARM 128610-11271
51 SPRING, ROCKER ARM 128610-11280
52 SHAFT, ROCKER ARM 128610-11651
54 BALL, STEEL 7/16 24190-140001
55 RING, 20 22242-000200
56 BOLT, M6X 20 PLATED 26106-060202
