YANMAR 128612-11091 Seat, Valve

Write a Review
$143.30
SKU:
128612-11091
Schematic Object Key:
5A-1

YANMAR 128612-11091 Seat, Valve

$143.30

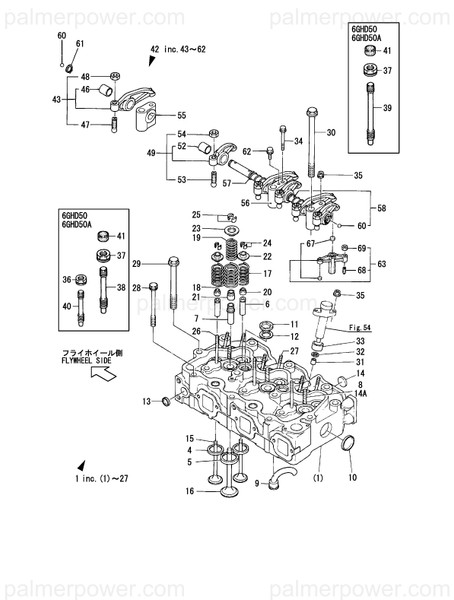

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

YANMAR 128612-11091 Seat, Valve

Schematic Object Key : 5A-1

Product Description : SEAT, VALVE

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Other Components:

Ref Description Part No.
1B HEAD ASSY, CYLINDER 728612-11700
4A SEAT, VALVE 126435-11080
4A-1 SEAT, VALVE 126435-11081
5A SEAT, VALVE 128612-11090
5A-1 SEAT, VALVE 128612-11091
6 GUIDE, VALVE 121850-11160
6-1 GUIDE, VALVE 123340-11160
7 GUIDE, VALVE 128610-11170
8 GUIDE, BRIDGE 128614-11530
9 PIPE 128614-11850
10 PLUG, 45 128610-11950
11 PLUG, M25X2 144626-11970
12 GASKET, 25X1.0 23414-250031
12-1 GASKET, 25X1.0 23414-250000
13 PLUG, 22 27241-220000
14 PLUG, 28 27241-280000
14A GUIDE, BRIDGE 128614-11530
15A VALVE, SUCTION 128612-11100
16A VALVE, EXHAUST 128612-11110
17 SPRING, VALVE 128614-11120
18 SPRING, VALVE OUTER 128610-11120
19 SPRING, VALVE INNER 128610-11130
20 SEAL, VALVE STEM 121850-11150
21 SEAL, VALVE STEM 126480-11150
21-1 SEAL,VALVE STEM 126628-11150
22 RETAINER, SPRING 128614-11190
23A ROTATOR ASSY, VALVE 175149-11700
23A-1 ROTATOR, VALVE 175149-11701
24-1 COTTER 9 27310-090000
24-2 COTTER ASSY 128634-11180
25A COTTER 11 27310-110001
25A-1 COTTER 148633-11990
26 STUD 128614-11350
27-2 STUD 126650-11770
31A INSULATOR 128612-11960
32A GASKET 128612-11810
33A COVER, L8.1 120323-11920
34 BOLT, M8X 70 PLATED 26106-080702
35 NUT, M8 26366-080002
36 NUT, CYLINDER HEAD 121450-01220
37 NUT, M16 126634-01220
38 BOLT, HEAD 128619-01250
39 BOLT, HEAD 128613-01260
40 BOLT, HEAD 128619-01270
41 CAP 123482-01950
42 SUPPORT ASSY, ARM 728614-11500
43 ARM ASSY, ROCKER 728614-11650
46 BUSH 128614-11700
46-1 BUSH 128619-11220
47 SCREW, VALVE 144626-11240
48 NUT, LOCK M12 26776-120002
49 ARM ASSY, ROCKER 728614-11660
52 BUSH, ROCKER ARM 128614-11170
52-1 BUSH 128619-11220
53 SCREW, VALVE 144626-11240
54 NUT, LOCK M12 26776-120002
55 BRACKET, ROCKER ARM 128610-11261
56 BRACKET, ROCKER ARM 128610-11271
57 SPRING, ROCKER ARM 128610-11280
58 SHAFT, ROCKER ARM 128610-11651
60 BALL, STEEL 7/16 24190-140001
61 RING, 20 22242-000200
62 BOLT, M6X 20 PLATED 26106-060202
62-1 BOLT, M6X 20 PLATED 26116-060202
63 BRIDGE ASSY, VALVE 728614-11910
67 SEAT, VALVE BRIDGE 144626-11550
68 SCREW, VALVE 120320-11520
69-1 NUT, M8 26366-080002
