YANMAR 128615-11910 Gasket, Inj. Nozzle

Write a Review
$2.64
SKU:
128615-11910
Schematic Object Key:
31

YANMAR 128615-11910 Gasket, Inj. Nozzle

$2.64

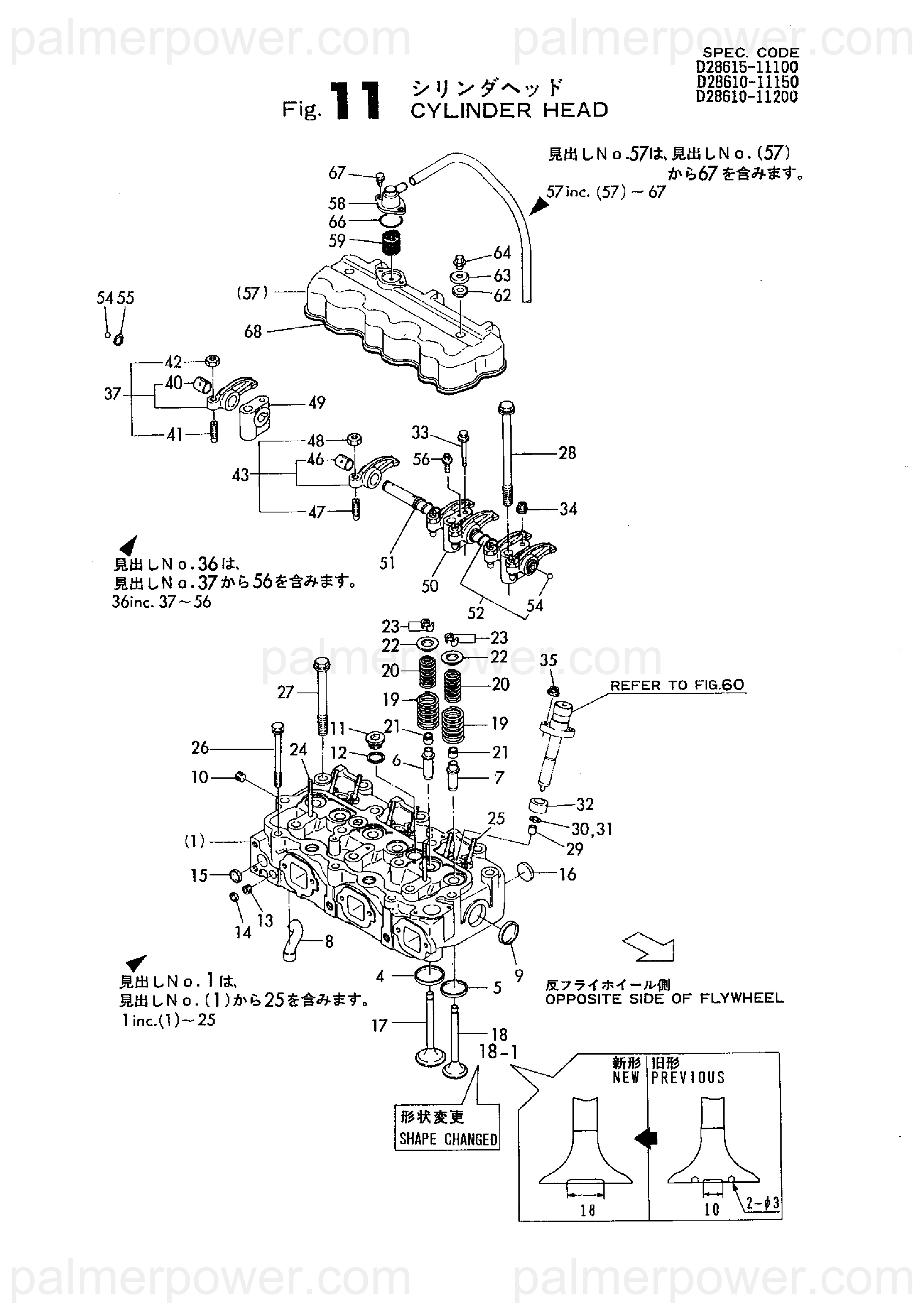

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

YANMAR 128615-11910 Gasket, Inj. Nozzle

Schematic Object Key : 31

Product Description : GASKET, INJ. NOZZLE

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Other Components:

Ref Description Part No.
1 HEAD ASSY, CYLINDER 728615-11700
4 SEAT, INTAKE VALVE 128610-11080
5 SEAT, EXHAUST VALVE 128610-11090
6 GUIDE, VALVE 128610-11160
7 GUIDE, VALVE 128610-11170
8 PIPE 128610-11850
9 PLUG, 45 128610-11950
10 PLUG, PT3/8 128610-11960
11 PLUG, M25X2 144626-11970
12 GASKET, 25X1.0 23414-250031
13 PLUG, R03 23871-030000
14 PLUG, 20 27241-200000
15 PLUG, 22 27241-220000
16 PLUG, 35 27241-350000
17 VALVE, INTAKE 128610-11100
18 VALVE, EXHAUST 128610-11110
18-1 VALVE, EXHAUST 128610-11111
19 SPRING, VALVE OUTER 128610-11120
20 SPRING, VALVE INNER 128610-11130
21 SEAL, VALVE STEM 126480-11150
22 RETAINER, SPRING 128610-11180
23 COTTER, VALVE 126650-11190
23-1 COTTER, VALVE 126650-11191
24 STUD 128610-11350
25 STUD 126650-11770
26 BOLT, HEAD 128610-01190
27 BOLT, HEAD 128610-01200
28 BOLT, HEAD 128610-01210
29 INSULATOR 128610-11900
30 GASKET, NOZZLE 128610-11910
31 GASKET, INJ. NOZZLE 128615-11910
32 SEAL, NOZZLE 126650-11960
33 BOLT, M8X 70 PLATED 26106-080702
34 NUT, M8 26366-080002
35 NUT, M8 26366-080002
36 SUPPORT ASSY, ARM 728610-11500
37 ARM ASSY, ROCKER 728610-11650
40 BUSH, ROCKER ARM 128610-11220
41 SCREW, VALVE 144626-11240
42 NUT, LOCK M12 26776-120002
43 ARM ASSY, ROCKER 728610-11660
46 BUSH, ROCKER ARM 128610-11220
47 SCREW, VALVE 144626-11240
48 NUT, LOCK M12 26776-120002
49 BRACKET, ROCKER ARM 128610-11261
50 BRACKET, ROCKER ARM 128610-11271
51 SPRING, ROCKER ARM 128610-11280
52 SHAFT, ROCKER ARM 128610-11651
54 BALL, STEEL 7/16 24190-140001
55 RING, 20 22242-000200
56 BOLT, M6X 20 PLATED 26106-060202
57 BONNET ASSY, HEAD 728610-11521
58 BODY, BREATHER 121450-03012
59 WOOL, STEEL 121450-03030
62 RUBBER 124411-11320
63 WASHER 124411-11330
64 KNOB 124160-11360
65 PIPE, 12X 750 23064-120750
66 O-RING, 1AS40.0 24341-000400
67 BOLT, M6X 16 PLATED 26106-060162
68 GASKET, BONNET 128610-11340
