YANMAR 128627-39601 Pipe Assy, Oil

Write a Review
$1,090.53
SKU:
128627-39601
Schematic Object Key:
18

YANMAR 128627-39601 Pipe Assy, Oil

$1,090.53

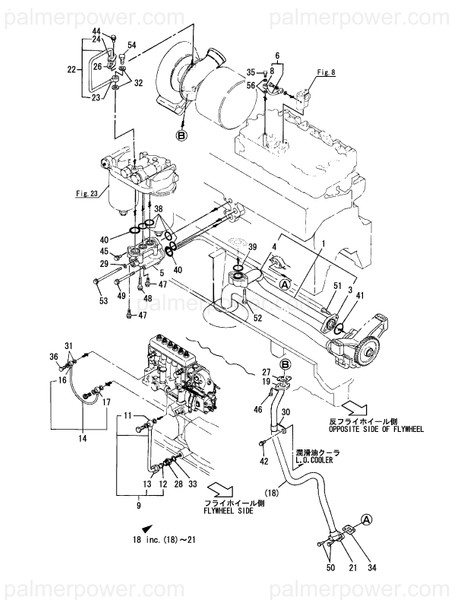

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

YANMAR 128627-39601 Pipe Assy, Oil

Schematic Object Key : 18

Product Description : PIPE ASSY, OIL

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Other Components:

Ref Description Part No.
1 PIPE, OIL 128610-39120
3 FLANGE 128610-39140
4 BEND 128610-39150
5 BEND 128619-39201
6 PIPE ASSY, OIL 128619-39331
8 JOINT, PIPE 43510-000220
9 PIPE, OIL 128627-39380
11 JOINT, PIPE, 12 128619-39450
12 JOINT, 12 128619-39460
13 NUT, CAP 12 23821-120000
14 PIPE ASSY, OIL 128619-39400
16 JOINT 120220-59150
17 JOINT, PIPE 6-12 23341-060000
18 PIPE ASSY, OIL 128627-39601
19 FLANGE 128627-39360
21 BEND, A20 23241-200005
22 PIPE, OIL 128627-39620
23 JOINT 110250-39030
24 FLANGE 123678-39320
26 GASKET 123688-39720
27 GASKET 123688-39790
28 UNION 135607-39810
29 WASHER, 8 22117-080000
30 CLAMP, A20X 6 23297-200081
31 GASKET, 12X1.0 23414-120016
32 GASKET, 14X1.0 23414-140018
33 GASKET, 16X1.0 23414-160000
34 GASKET, 21X0.5 23424-210000
35 JOINT BOLT 3 23851-030000
35-1 BOLT, JOINT 3 23857-030000
36 JOINT BOLT 6 23851-060000
36-1 BOLT, JOINT 6 23857-060000
37 PLUG, R01 23871-010000
38 O-RING, 1AG30.0 24321-000300
39 O-RING, 1AG35.0 24321-000350
40 O-RING, 1AG35.0 24321-000350
41 O-RING, 1AG45.0 24321-000450
42 BOLT, M8X 14 PLATED 26106-080142
43 BOLT, M8X 18 PLATED 26106-080182
44 BOLT, M8X 20 PLATED 26106-080202
45 BOLT, M8X 20 PLATED 26106-080202
46 BOLT, M8X 25 PLATED 26106-080252
47 BOLT, M8X 25 PLATED 26106-080252
48 BOLT, M8X 50 PLATED 26106-080502
49 BOLT, M8X100 PLATED 26106-081002
50 BOLT, M10X 25 PLATED 26106-100252
51 BOLT, M10X 30 PLATED 26106-100302
52 BOLT, M10X 55 PLATED 26106-100552
53 BOLT, M8X150 PLATED 26116-081502
54 BOLT, PIPE M14X1.5 43510-000210
55 RETAINER 43730-551950
56 GASKET, 8X1.0 23414-080000
