YANMAR 128695-42010 Pump Assy, Water

Write a Review
$465.72
SKU:
128695-42010
Schematic Object Key:
1

YANMAR 128695-42010 Pump Assy, Water

$465.72

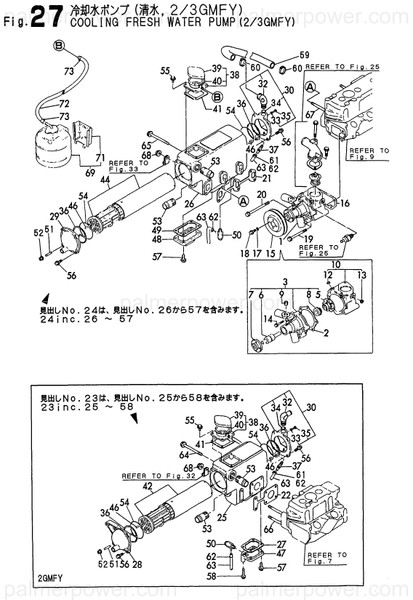

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

YANMAR 128695-42010 Pump Assy, Water

Schematic Object Key : 1

Product Description : PUMP ASSY, WATER 128695-42010

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Other Components:

Ref Description Part No.
1 PUMP ASSY, WATER 128695-42010
2 GASKET, WATER PUMP 121000-42051
3 PUMP ASSY, WATER 121000-42100
5 IMPELLER 129350-42200
6 BEARING, SHAFT 121450-42240
7 FLANGE, V-PULLEY 121450-42260
8 SEAL, MECHANICAL 121450-42310
9 PLUG, R03 23876-030000
10 BRACKET ASSY 728695-43500
12 PLUG, R02 23876-020000
13 PLUG, R03 23876-030000
14 BOLT, M6X 32 PLATED 26106-060322
15 V-PULLEY 128695-42350
16 GASKET 121450-44410
17 WASHER, SPRING 6 22217-060000
18 BOLT, M6X 10 PLATED 26106-060102
19 BOLT, M8X 90 PLATED 26106-080902
20 BOLT, M8X110 PLATED 26106-081102
21 GASKET 121450-13250
21-1 GASKET, MANIFOLD 121450-13251
24 COOLER ASSY, WATER 728390-44500
24-1 COOLER ASSY, WATER 128390-44900
26 BODY, TANK 128390-44010
29 COVER, COOLER 128695-44050
30 COVER ASSY 728690-44710
32 ELBOW 128690-49310
33 GASKET, 5X1.0 23414-050000
34 O-RING, 1AP16.0 24311-000160
35 SCREW, M5X10 26554-050102
36 GASKET 128695-44070
37 COCK 128695-44090
37-1 COCK ASSY, R1/8 129670-49290
38 FILLER ASSY 123682-44190
39 CAP, RADIATOR 123682-44210
40 CHAIN 123682-44220
41 GASKET 123682-44200
41-1 GASKET 123682-44201
44 PIPE ASSY, COOLING 128390-44401
46 PIN 124790-44470
48 COVER, TANK 128390-44480
49 GASKET 128390-44490
49-1 GASKET 128390-44491
50 COCK, 1/4 120130-49350
50-1 COCK ASSY, 1/4 119620-49290
51 STUD, M6X 18 26216-060182
52 NUT, M6 26366-060002
53 JOINT, PIPE 124160-49480
54 O-RING, 1AP70.0 24311-000700
55 BOLT, M6X 14 PLATED 26106-060142
56 BOLT, M6X 18 PLATED 26106-060182
57 BOLT, M8X 20 PLATED 26106-080202
59 PIPE, WATER 128396-49210
60 CLAMP, 25 23000-025000
61 CLAMP, HOSE 9 124722-59050
62 RETAINER 124460-77680
62-1 RETAINER 124460-77680
63 PIPE, 7X 300 23061-070300
65 BOLT, M8X 90 PLATED 26106-080902
67 STUD, M8X 90 26216-080902
68 NUT, M8 26366-080002
69 TANK ASSY, SUB 720445-44200
71 SUPPORT 120445-44540
72 PIPE, WATER L=1000 124790-44560
73 CLAMP 13 23010-013000

YANMAR 128695-42010 Pump Assy, Water

PRODUCT NOTES

The 128695-42010 fresh water pump can be used on the following Yanmar engine models:

  • 2GM
  • 2GM20F
  • 3GM
  • 3GM30F
  • 3GMF

This is a genuine Yanmar part shipped with a 6-month warranty.

Call us at (800) 364-4637 if you have any questions about this item.
As always, your satisfaction is guaranteed!
