YANMAR 129100-52101 Pump Assy, Fuel Feed

Write a Review
$155.65
SKU:
129100-52101
Schematic Object Key:
3

YANMAR 129100-52101 Pump Assy, Fuel Feed

$155.65

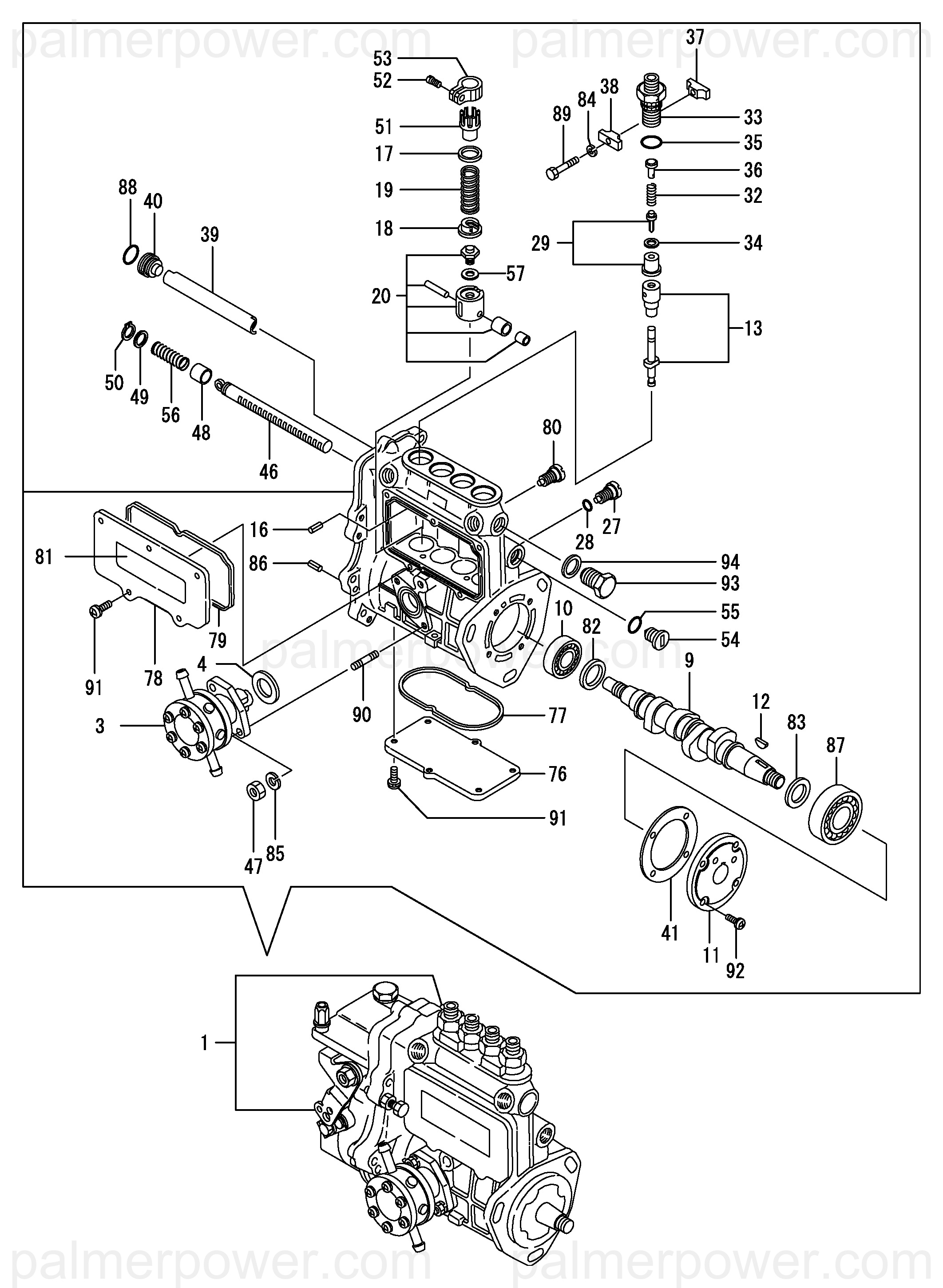

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

YANMAR 129100-52101 Pump Assy, Fuel Feed

Schematic Object Key : 3

Product Description : PUMP ASSY, FUEL FEED 129100-52101

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Other Components:

Ref Description Part No.
1 PUMP ASSY, INJECTION 729611-51340
3 PUMP ASSY, FUEL FEED 129100-52101
4 GASKET 129155-52051
9 CAMSHAFT 129470-51040
10 BEARING 129155-51051
11 SUPPORT, CAMSHAFT 129155-51060
12 KEY 122710-51090
13 PLUNGER ASSY 129470-51101
16 PIN 129155-51140
17 RETAINER, SPRING A 174307-51170
18 RETAINER, SPRING 129155-51180
19 SPRING, PLUNGER 124950-51190
20 TAPPET ASSY 129155-51200
27 STOPPER, TAPPET 129155-51270
28 O-RING, S6 129155-51280
29 VALVE ASSY, DELIVERY 129100-51300
32 SPRING, DELIVERY 129155-51320
33 RETAINER 129155-51340
34 GASKET, DELIVERY 124550-51350
35 O-RING 119717-51420
36 STOPPER, VALVE 129155-51370
37 STOPPER 129155-51380
38 STOPPER 129155-51390
39 DEFLECTOR 129555-51400
40 BOLT 129155-51410
41 SHIM SET, ADJUSTING 129155-51450
46 RACK, CONTROL 129555-51500
47 NUT, M6 26716-060002
48 BUSH, RACK 129155-51521
49 SPACER 129155-51530
50 CIRCLIP 129155-51540
51 PINION, CONTROL 129155-51550
52 SCREW 129100-51570
53 PINION 129100-51560
54 PLUG, M12 129155-51570
55 O-RING 129155-51580
56 SPRING, RACK 129155-51591
57 SHIM SET, ADJUSTING 129155-51600
76 COVER 129555-51701
77 GASKET 129555-51711
78 COVER 129555-51751
79 GASKET 129555-51761
80 STOOPER, RACK 129155-51790
81 LABEL, CAUTION 129156-51910
82 SPACER, T=3.25 129155-51930
83 SPACER, T=1.5 129155-51940
84 WASHER, SPRING 5 22217-050000
85 WASHER, SPRING 6 22217-060000
86 PIN, SPRING 5.0X10 22351-050010
87 BEARING, BALL 6303 24101-063034
88 O-RING, 4DP15.0 24316-000150
89 BOLT, M5X 30 PLATED 26116-050302
90 STUD 129155-51020
91 SCREW, M5X12 26022-050122
92 SCREW, M6X16 26022-060162
93 PLUG, M16 129155-51420
94 WASHER, SEAL 16 22190-160002

YANMAR 129100-52101 Pump Assy, Fuel Feed

PRODUCT NOTES

Replaces old part number YM-129100-52101-Z.

This is a genuine Yanmar Fuel Feed Pump Assembly for 3TNE84, 3TNE88, 4TNE84 and 4TNE88 engines. This is a genuine Yanmar part shipped with a 12-month warranty.

Call us at (800) 364-4637 with questions or buy online.
As always, your satisfaction is guaranteed!
