YANMAR 129150-11810 Guide, Valve

Write a Review
$10.19
SKU:
129150-11810
Schematic Object Key:
7

YANMAR 129150-11810 Guide, Valve

$10.19

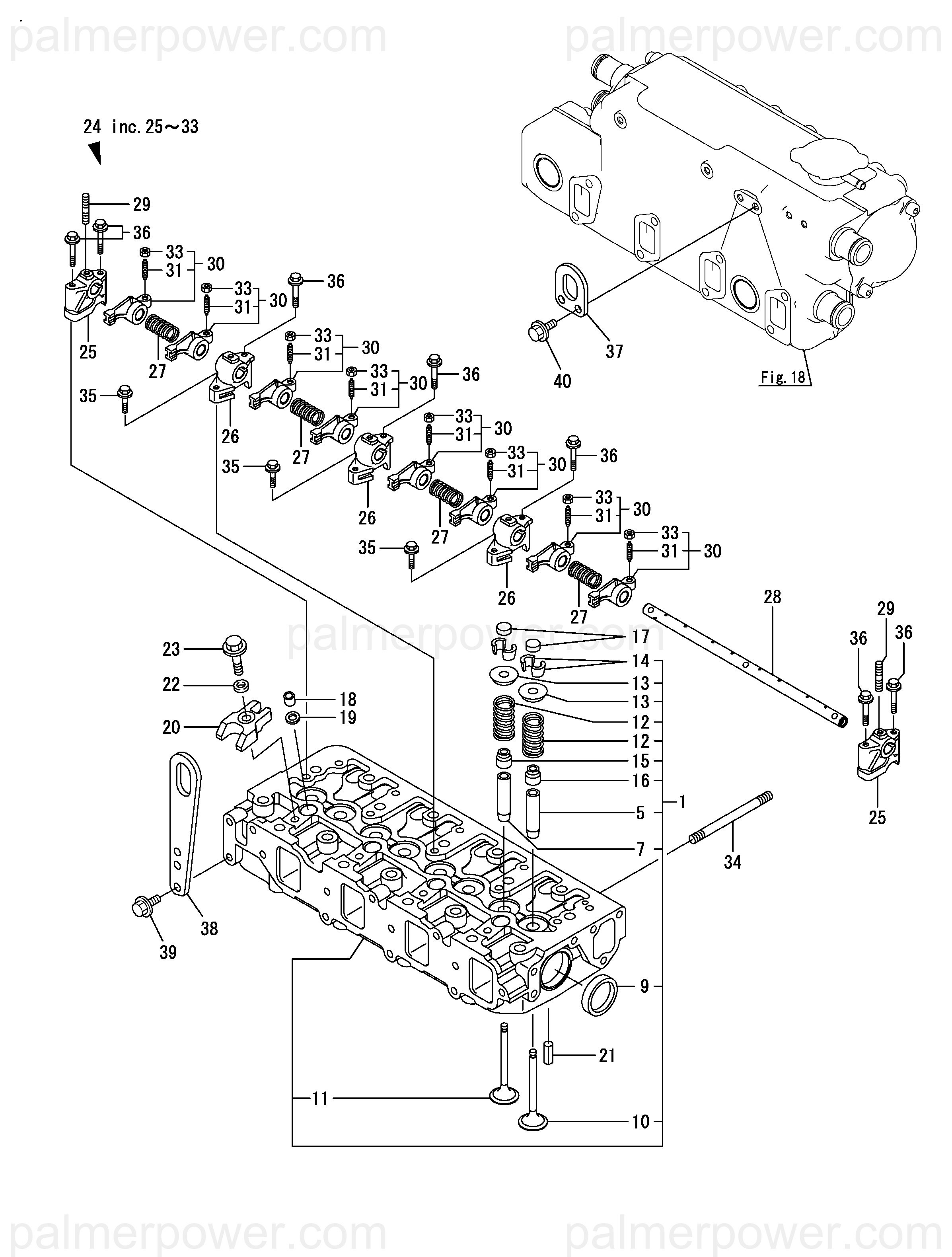

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

YANMAR 129150-11810 Guide, Valve

Schematic Object Key : 7

Product Description : GUIDE, VALVE 129150-11810

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Other Components:

Ref Description Part No.
1 HEAD ASSY, CYLINDER 129602-11700
5 GUIDE, VALVE 120130-11860
7 GUIDE, VALVE 129150-11810
9 PLUG, 40 27241-400000
10 VALVE, INTAKE 129005-11100
11 VALVE, EXHAUST 129100-11112
12 SPRING, VALVE 129795-11120
13 RETAINER, SPRING 129795-11180
14 COTTER, 8 27310-080001
15 SEAL, VALVE STEM 121400-11340
16 SEAL, VALVE STEM 124460-11340
17 CAP, VALVE 129150-11370
18 PROTECTOR, NOZZLE 119802-11870
19 SEAT, NOZZLE 119625-11880
20 RETAINER, NOZZLE 129004-11900
21 PIN, SPRING 6.0X12 22351-060012
22 WASHER, INJECTOR 120270-54410
23 BOLT, M8X 35 PLATED 26106-080352
24 SHAFT ASSY, ROCKER 129601-11241
25 SUPPORT, ROCKER ARM 119802-11260
26 SUPPORT, ROCKER ARM 119802-11270
27 SPRING 129150-11280
28 SHAFT, ROCKER ARM 129601-11251
29 STUD, M8X 18 26226-080182
30 ARM ASSY, ROCKER 129004-11650
31 SCREW, VALVE ADJUST 129150-11230
33 NUT, M8 129150-11750
34 BOLT, STUD 129693-44300
35 BOLT, M8X 25 PLATED 26106-080252
36 BOLT, M8X 50 PLATED 26106-080502
37 LIFTER 129470-07230
37-1 LIFTER 129670-07230
37-2 LIFTER 129670-07230
38 LIFTER 129900-07900
39 BOLT, M8X 16 PLATED 26106-080162
40 BOLT, M8X 16 PLATED 26106-080162

YANMAR 129150-11810 Guide, Valve

PRODUCT NOTES

The YM-129150-11810 intake and exhaust valve guide can be used on the following Yanmar engine series: 3TNE84, 3TNE88, 3TNV88, 4TNE84, 4TNE88, and 4TNE98 (direct and indirect injection).

This is a genuine Yanmar part shipped with a 6-month warranty.
