YANMAR 129155-61051 Gasket, Case

Write a Review
$9.52
SKU:
129155-61051
Schematic Object Key:
4-1

YANMAR 129155-61051 Gasket, Case

$9.52

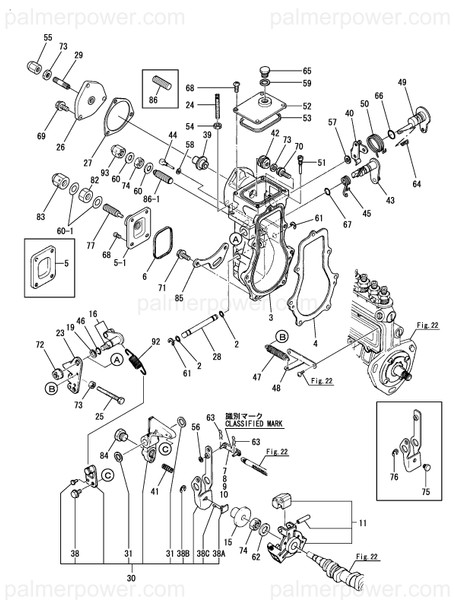

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

YANMAR 129155-61051 Gasket, Case

Schematic Object Key : 4-1

Product Description : GASKET 129155-61051

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Other Components:

Ref Description Part No.
2 O-RING, S6 129155-51280
3 HOUSING, GOVERNOR 129595-61012
4 GASKET 129595-61050
4-1 GASKET 129155-61051
5 COVER, GOVERNOR CASE 129155-61060
5-1 COVER, GOVERNOR CASE 129690-61060
6 GASKET 129155-61070
6-1 GASKET 129155-61071
7 LINK, L=30 MARK 0 129155-61120
8 LINK, L=31 MARK 1 129155-61130
9 LINK, L=30.5 MARK 05 129155-61140
10 LINK, L=29 MARK 9 129155-61180
11 WEIGHT ASSY,GOVERNOR 129595-61201
15 SLEEVE 129155-61341
15-1 SLEEVE, L=24.9 129155-61350
16 SHAFT ASSY 129100-61400
19 SPACER 129155-61430
23 LEVER, CONTROL 129499-61440
24 BOLT, LIMITER 129155-61450
25 BOLT, IDLE 129155-61460
26 COVER, GOVERNOR CASE 129497-61470
27 GASKET 129497-61480
28 SHAFT 129155-61490
29 ROD 129497-61490
30 LEVER ASSY, GOVERNOR 129131-61500
31 SHIM SET 174307-51700
38 BOLT, M6X 10 PLATED 26106-060102
38A SHIFTER 129100-61540
38B RING, E- 4 22272-000040
38C PIN, SPRING 2.0X 4 22351-020004
39 BUSH 129595-61610
40 LEVER, SETTING 129595-61631
41 SPRING, FUEL CONTROL 129470-61650
42 RING 129595-61660
43 SHAFT, STOP LEVER 129595-61802
44 PIN 129155-61810
45 SPRING, RETURN 129595-61821
46 O-RING, S10 129155-61830
47 SPRING, RETURN 129499-61870
48 HOOK 129499-61890
49 LEVER 129595-61901
50 SPRING, SET 129595-61911
51 PIN 129595-61931
52 COVER 129595-61951
53 GASKET 129595-61961
53-1 GASKET 129595-61962
54 NUT, M6 124550-66370
55 NUT, CAP 119600-66840
56 WASHER, 4 22117-040000
57 WASHER, 6 22117-060000
58 WASHER, SEAL 6 22190-060002
59 WASHER, SEAL 10 22190-100002
60 WASHER, SEAL 12 22190-120002
60-1 WASHER, SEAL 12 22190-120002
61 RING, E- 6 22272-000060
61-1 RING, E- 6 22276-000060
62 WASHER, 12 22287-120000
63 PIN, SNAP 4 22372-040000
64 PIN, SNAP 6 22372-060000
65 PLUG, 10 23887-100002
66 O-RING, 1AP11.0 24311-000110
67 O-RING, 1AP10A 24311-240100
68 SCREW, M5X10 26022-050102
69 BOLT, M6X 10 PLATED 26106-060102
70 BOLT, M6X 18 PLATED 26106-060182
71 BOLT, M6X 20 PLATED 26106-060202
72 NUT, M8 26366-080002
73 NUT, LOCK M6 26756-060002
74 NUT, LOCK M12 26776-120002
75 SHIFTER 129155-61540
76 RING, E- 4 22272-000040
77 IDLE 127692-61550
77-1 IDLE 129295-61550
77-2 IDLE 129295-61551
82 NUT, LOCK M12 26777-120002
82-1 NUT, LOCK M12 26776-120002
83 NUT, CAP 129100-61930
84 PLUG 129470-61590
85 SUPPORT 129595-61080
86 BOLT, FO CONTROL 129155-61470
86-1 LIMITER ASSY, FUEL 129497-61450
92 SPRING, GOVERNOR 129100-61730
93 NUT, CAP 129100-61930
