YANMAR 129171-51040 Camshaft, Pump

Write a Review
$243.88
SKU:
129171-51040
Schematic Object Key:
4

YANMAR 129171-51040 Camshaft, Pump

$243.88

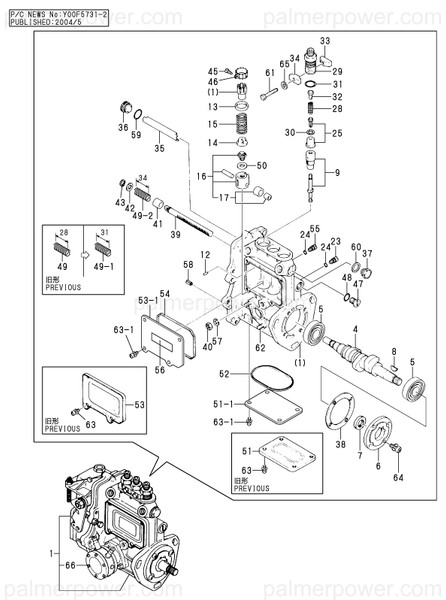

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

YANMAR 129171-51040 Camshaft, Pump

Schematic Object Key : 4

Product Description : CAMSHAFT 129171-51040

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Other Components:

Ref Description Part No.
1 PUMP ASSY, INJECTION 729295-51300
4 CAMSHAFT 129171-51040
5 BEARING, HR30203J 122710-51050
6 RETAINER, BEARING 129470-51060
7 SEAL, AF0741F0 129470-51080
8 KEY 122710-51090
9 PLUNGER ASSY 129470-51101
12 PIN 129155-51140
13 RETAINER, SPRING A 174307-51170
14 RETAINER, SPRING 129155-51180
15 SPRING, PLUNGER 124950-51190
16 TAPPET ASSY 129155-51200
17 ROLLER ASSY 711100-51540
23 STOPPER, TAPPET 129155-51270
24 O-RING, S6 129155-51280
25 VALVE ASSY, DELIVERY 129295-51300
28 SPRING, DELIVERY 129573-51330
29 RETAINER 129573-51340
30 GASKET, DELIVERY 124550-51350
31 O-RING 124550-51370
32 STOPPER, VALVE 129573-51370
33 STOPPER 129155-51380
34 STOPPER 129155-51390
35 DEFLECTOR 129155-51400
36 BOLT 129155-51410
37 PLUG, M16 129155-51420
38 SHIM SET, ADJUSTING 129155-51450
39 RACK, CONTROL 129155-51500
40 NUT, M6 26716-060002
41 BUSH, RACK 129155-51521
42 SPACER 129155-51530
43 CIRCLIP 129155-51540
45 SCREW 122117-51560
45-1 SCREW 129100-51570
46 PINION 174307-51560
46-1 PINION 129100-51560
47 PLUG, M12 129155-51570
48 O-RING 129155-51580
49 SPRING, RACK 129155-51591
49-1 SPRING, RACK 129295-51590
49-2 SPRING, RACK 129190-51590
50 SHIM SET, ADJUSTING 129155-51600
51 COVER 129155-51700
51-1 COVER 129155-51701
52 GASKET 129155-51710
52-1 GASKET 129155-51711
53 COVER 129155-51750
53-1 COVER 129155-51751
54 GASKET 129155-51760
54-1 GASKET 129155-51761
55 STOOPER, RACK 129155-51790
56 LABEL, CAUTION 129156-51910
57 WASHER, SPRING 6 22217-060000
58 PIN, SPRING 5.0X10 22351-050010
59 O-RING, 1AS16.0 24341-000160
60 WASHER, SEAL 16 22190-160002
61 BOLT, M5X 30 PLATED 26116-050302
62 STUD 129155-51020
63 SCREW, M5X10 26022-050102
63-1 SCREW, M5X12 26022-050122
64 SCREW, M6X16 26022-060162
65 WASHER, SPRING 5 22217-050000
66 PUMP ASSY, FUEL FEED 129158-52000
