YANMAR 129495-55010 Bracket

Write a Review
$14.70
SKU:
129495-55010

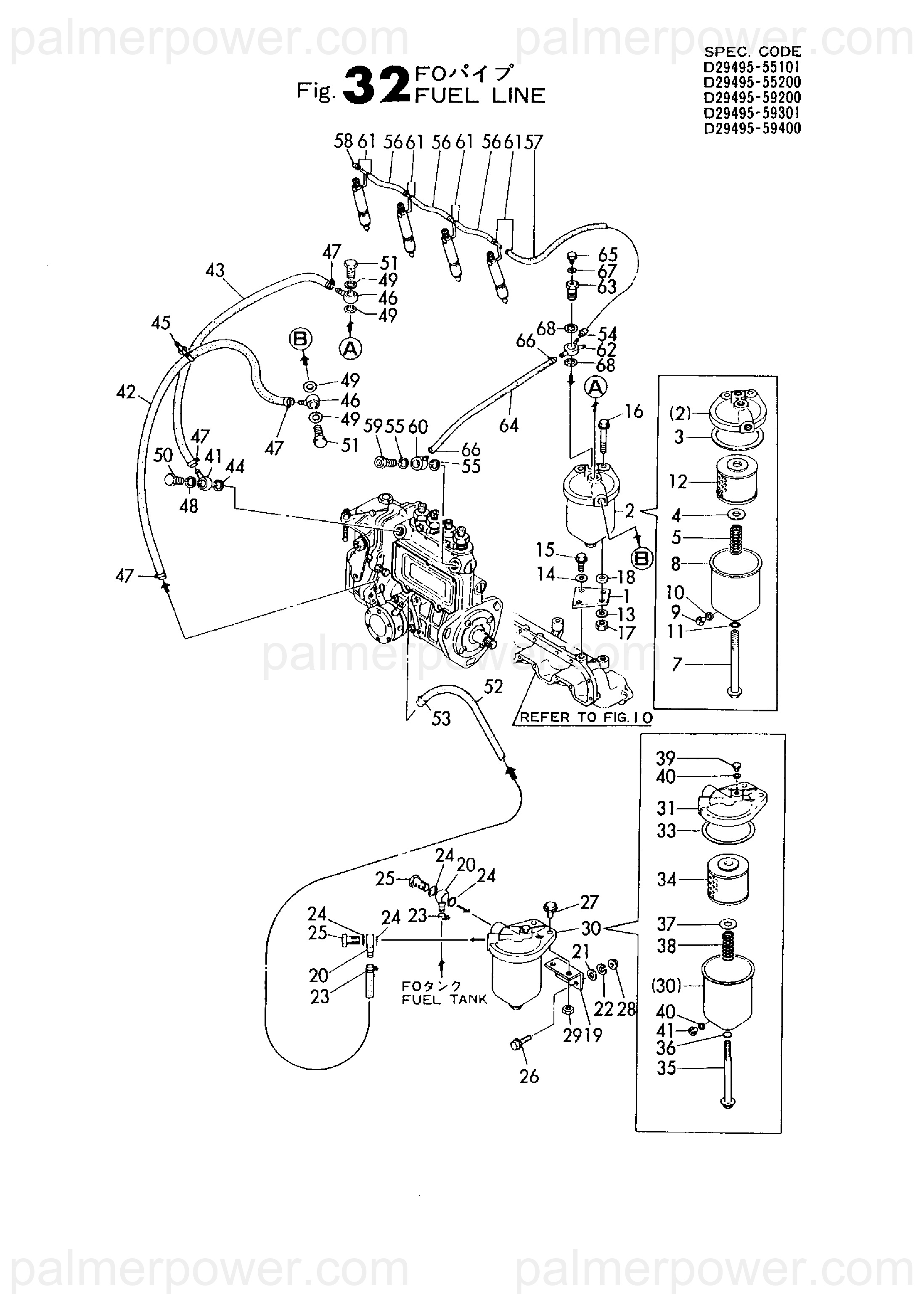

Schematic Object Key:
1

YANMAR 129495-55010 Bracket

$14.70

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

YANMAR 129495-55010 Bracket

Schematic Object Key : 1

Product Description : BRACKET

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Other Components:

Ref Description Part No.
1 BRACKET 129495-55010
2 FILTER ASSY, FUEL 129495-55600
3 GASKET 123325-35140
4 WASHER 123325-35160
5 SPRING 123325-35170
7 BOLT 129495-55620
8 CASE 123672-55720
9 PLUG, DRAIN M8 123672-55750
10 GASKET 123672-55760
11 O-RING, 1AP12.0 24311-000120
12 ELEMENT, FUEL 41650-550800
13 WASHER, 10 22137-100000
14 WASHER, 10 22137-100000
15 BOLT, M10X 20 PLATED 26106-100202
16 BOLT, M10X 55 PLATED 26106-100552
17 NUT, M10 26706-100002
18 SPACER 45511-501250
19 BRACKET 123672-55811
20 JOINT 121750-59910
21 WASHER, 8 22137-080000
22 WASHER, SPRING 8 22217-080000
23 CLAMP, 16 23000-016000
24 GASKET, 14X1.0 23414-140000
25 BOLT, JOINT 8 23857-080000
26 BOLT, M8X 40 PLATED 26106-080402
27 BOLT, M10X 20 PLATED 26106-100202
28 NUT, M8 26366-080002
29 NUT, M10 26706-100002
30 SEPARATOR 43623-500030
31 COVER 123672-55700
31-1 COVER ASSY X2740134001
33 GASKET 123325-35140
34 ELEMENT, FUEL OIL 42430-550060
35 BOLT 123325-35110
36 O-RING, 1AP12.0 24311-000120
37 SEAT, SPRING D30/16 123678-55860
38 SPRING X0600160122
39 PLUG 8 23887-080002
40 GASKET, 8X1.0 23414-080000
41 JOINT 104264-59020
41-1 JOINT, PIPE 12 101304-59020
42 PIPE, FUEL 129470-59120
43 PIPE, FUEL 129470-59120
44 GASKET, 12 104200-59170
45 BAND, 140 121750-59890
46 JOINT 121750-59910
46-1 JOINT, PIPE 121855-59880
47 CLAMP, 13 23080-013000
48 GASKET, 12X1.0 23414-120000
49 GASKET, 14X1.0 23414-140000
50 BOLT, JOINT 6 23857-060000
51 BOLT, JOINT 8 23857-080000
52 PIPE, FUEL L=4000 129795-59100
53 CLAMP, 16 23000-016000
54 CLIP, HOSE 8 124066-59100
55 GASKET, 12X1.0 23414-120000
56 PIPE, FUEL RETURN 129495-59551
57 HOSE, FUEL L=230 129495-59561
58 CAP 129150-59580
59 VALVE ASSY, CHECK 129100-59951
60 JOINT, PIPE 12 101304-59020
60-1 JOINT, PIPE 129150-59020
60-2 JOINT, PIPE 12 101304-59020
61 CLAMP, 13 23000-013000
62 JOINT, PIPE 129470-59530
63 BOLT, PIPE JOINT 129495-59300
64 PIPE, FUEL 129470-59540
65 BOLT, M8X 10 PLATED 26106-080102
66 CLAMP, 13 23080-013000
67 GASKET, 8X1.0 23414-080000
68 GASKET, 14X1.0 23414-140000
