YANMAR 129590-67140 Bracket, Stop Cable

Write a Review
$17.09
SKU:
129590-67140
Schematic Object Key:
8

YANMAR 129590-67140 Bracket, Stop Cable

$17.09

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

YANMAR 129590-67140 Bracket, Stop Cable

Schematic Object Key : 8

Product Description : BRACKET 129590-67140

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

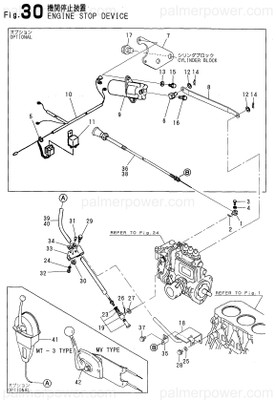

Other Components:

Ref Description Part No.
1 RETAINER 129590-67310
2 PIN, COTTER 2.5X15 22414-250150
2-1 PIN, SNAP 5 22372-050000
3 BOLT, M5X 14 PLATED 26116-050142
4 NUT, LOCK M5 26756-050002
5 LINK 119867-66910
6 WASHER, 6 22137-060000
7 SNAP PIN 8 22360-080000
8 BRACKET 129590-67140
9 JOINT, BALL 41710-001300
10 BOLT, M8X 12 PLATED 26106-080122
11 BAND, 140 121750-59890
12 RETAINER 129595-67310
13 CABLE, L=500 129590-67420
14 BOLT, M5X 14 PLATED 26116-050142
15 BOLT, M5X 20 PLATED 26116-050202
16 NUT, LOCK M5 26756-050002
17 CLAMP 41710-000410
18 BAND, 140 121750-59890
19 PIN 171078-66551
20 BRACKET, SOLENOID 129470-67300
20-1 BRACKET, SOLENOID 129573-67300
21 LINK 129470-67310
22 SOLENOID, STOP 12V 129470-67320
23 HARNESS, WIRE 129470-77971
24 RELAY 124617-91850
24-1 RELAY, DC12V 119773-91850
25 WASHER, 8 22117-080000
26 WASHER, SPRING 6 22217-060000
27 SNAP PIN 8 22360-080000
28 BOLT, M6X 10 PLATED 26106-060102
29 BOLT, M6X 20 PLATED 26106-060202
30 BOLT, M8X 12 PLATED 26106-080122
31 BRACKET, GOVERNOR 129590-67101
32 RETAINER ASSY 129470-67200
36 RING, 10 22242-000100
37 WASHER, SPRING 5 22217-050000
38 WASHER, SPRING 8 22217-080000
39 PIN, COTTER 2.5X15 22414-250150
40 GASKET, 8X1.0 23414-080000
41 BOLT, M8X 12 PLATED 26106-080122
42 BOLT, M8X 25 PLATED 26106-080252
43 NUT, M8 26366-080002
44 SCREW, M5X12 26557-050122
45 NUT, M5 26716-050002
46 BRACKET, CABLE 129590-67110
47 CABLE, L=7000 129470-86500
48 CABLE, STOP L=4000 129470-67550
49 CABLE, STOP L=7000 129470-67560
50 MT-3 REMO-CON 41730-000681
51 CONTROLLER 128170-86500
51-1 REMOCON HEAD (MN 128170-86501
52 CABLE L=4000 41710-000380
53 BOLT, M6X 16 PLATED 26106-060162
54 NUT, M8 26306-080002
55 SCREW, M5X 8 26557-050082
56 CLAMP 41710-000410
57 JOINT 129670-86250
58 BRACKET, CABLE 129670-86310
59 CLEVIS, 12SQ-48L 128370-86280
60 WASHER, 6 22113-060000
61 WASHER, SPRING 5 22217-050000
62 WASHER, SPRING 8 22217-080000
63 PIN, COTTER 1.6X10 22414-160100

YANMAR 129590-67140 Bracket, Stop Cable
