YANMAR 135410-41150 Piston, Pump

Write a Review
$2,310.44
SKU:
135410-41150

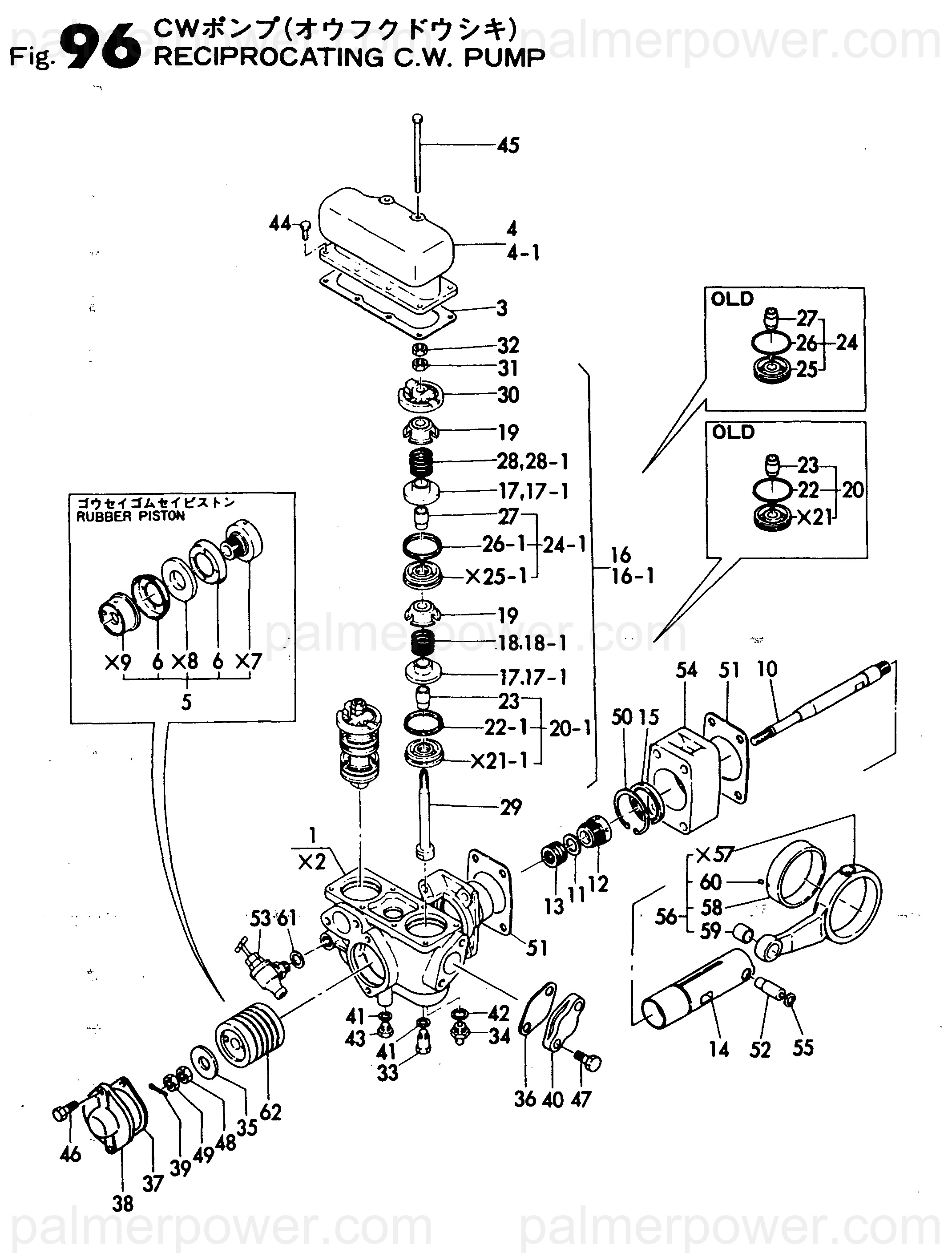

Schematic Object Key:
5

YANMAR 135410-41150 Piston, Pump

$2,310.44

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

YANMAR 135410-41150 Piston, Pump

Schematic Object Key : 5

Product Description : PISTON, PUMP

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Other Components:

Ref Description Part No.
1 PUMP ASSY, WATER 743600-41700
3 GASKET 135410-41091
4 CHAMBER, AIR 135410-41081
4-1 CHAMBER 135410-41100
5 PISTON, PUMP 135410-41150
6 PACKING 135410-41160
10 ROD (L=209), PISTON 135600-41270
11 WASHER 135410-41300
12 GLAND, PACKING 135410-41310
13 GLAND, PACKING 131510-41321
14 CROSSHEAD, C.W. PUMP 143600-41330
15 SEAL VB50 68 7, OIL 135410-41360
16 VALVE ASSY,PUMP 735410-41502
16-1 VALVE ASSY, PUMP 135410-41692
17 VALVE, C.W. PUMP 131110-41401
17-1 VALVE, PUMP 135610-41400
18 SPRING, VALVE 125410-41410
18-1 SPRING, VALVE 135610-41410
19 RETAINER, VALVE 131110-41421
20 SEAT, VALVE 131110-41900
20-1 SEAT, VALVE 135665-41560
22 GASKET, RUBBER 131110-41441
22-1 PACKING 135655-41440
23 SPACER, VALVE 131110-41890
24 SEAT, VALVE 131110-41910
24-1 SEAT, VALVE 135655-41570
26 GASKET, RUBBER 131110-41441
26-1 PACKING 135655-41440
27 SPACER, VALVE 131110-41890
28 SPRING, VALVE 125410-41410
28-1 SPRING, VALVE 135610-41510
29 SHAFT, VALVE 135410-41602
30 GUIDE 135310-41611
31 NUT, M12 26704-120002
32 NUT, LOCK M12 26754-120002
33 PLUG M12 135410-41820
34 CONNECTOR 131110-41870
35 WASHER 135400-41980
36 GASKET 135610-41990
37 PACKING 135410-46022
38 COVER, BLIND 135400-41051
39 PIN, COTTER 3.0X25 22414-300250
40 FLANGE, 34 23224-340001
41 GASKET, 12X1.0 23414-120000
42 GASKET, 17X1.0 23414-170000
43 PLUG, 12 23883-120002
44 BOLT M 8X 22 26114-080222
45 BOLT 8X123 26114-081232
46 BOLT M10X 20 26114-100202
47 BOLT, M12X 30 26114-120302
48 NUT, M12 26703-120002
49 NUT, LOCK M12 26753-120002
50 RING, 68 22252-000680
51 GASKET, PUMP 131510-41030
52 PIN, CROSSHEAD 135410-41250
53 VALVE ASSY, W. PUMP 138613-41901
54 BRACKET 143600-41900
55 RING, 18 22252-000180
56 ROD W/BUSH 135410-41790
58 BUSH 135410-41710
59 BUSH 131510-41720
60 SCREW, M4X 6 26911-040062
61 GASKET, 18X1.0 23414-180000
62 PISTON 135410-41201
