YANMAR 135610-82400 Shim Set

Write a Review
$237.62
SKU:
135610-82400
Schematic Object Key:
22

YANMAR 135610-82400 Shim Set

$237.62

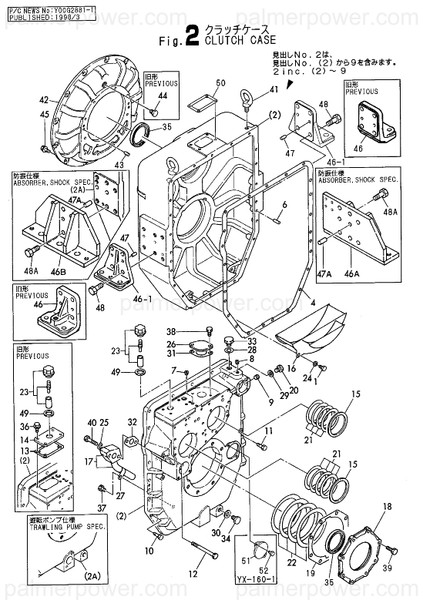

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

YANMAR 135610-82400 Shim Set

Schematic Object Key : 22

Product Description : SHIM SET

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Other Components:

Ref Description Part No.
1 BOLT, M12X 16 PLATED 26116-120162
2 CASE ASSY 177432-02040
4 GASKET, COVER 177432-02020
6 PIN, PARALLEL M12X40 22312-120400
7 PLUG, R02 23871-020000
8 PLUG, R03 23871-030000
9 PLUG, R04 23871-040000
10 BOLT M12X 35 26113-120352
11 BOLT, M12X 35 PLATED 26116-120352
12 BOLT, M12X165 PLATED 26116-121452
15 SPACER 177501-02160
16 PLATE, BAFFLE 177432-02280
17 PIPE ASSY, OIL 177432-02550
18 COVER 177054-02750
19 PACKING, COVER 177054-02760
20 PLUG, MAGNET M16X1.5 177035-02920
21 SHIM SET 135210-82400
22 SHIM SET 135610-82400
23 PLUG ASSY, M30X1.5 123672-82850
24 WASHER, SPRING 12 22217-120000
25 WASHER, SPRING 12 22217-120000
26 FLANGE, 40 23221-400001
27 CLAMP, A27X12 23297-270121
28 GASKET, 12X1.0 23414-120016
29 GASKET, 16X1.0 23414-160000
30 GASKET, 20X1.0 23414-200000
31 PACKING 44 23422-440000
32 GASKET 23424-310000
33 PLUG, 12 23887-120002
34 PLUG, 20 23887-200002
35 SEAL, OIL TC9512013 24423-952013
37 BOLT, M12X 16 PLATED 26116-120162
38 BOLT, M12X 25 PLATED 26116-120252
39 BOLT, M12X 40 PLATED 26116-120402
40 BOLT, M12X 60 PLATED 26116-120602
41 BOLT, EYE M16 26610-160002
42 FLANGE, MOUNTING 177501-02050
43 PIN, PARALLEL M10X25 22312-100250
45 BOLT, M10X 25 PLATED 26106-100252
46-1 FOOT, MOUNTING 177054-02811
46A FOOT, MOUNTING 177432-02900
46B FOOT, MOUNTING 177432-02910
47 PIN, PARALLEL M12X32 22312-120320
47A PIN, PARALLEL M16X40 22312-160400
48 BOLT, M16X 35 PLATED 26156-160352
48-1 BOLT, M16X 40 PLATED 26156-160402
48A BOLT, M20X 45 26152-200452
49 WASHER, SEAL 30 43400-500610
50 GASKET 177010-02261
51 COVER 177010-02430
52 BOLT, M10X 14 PLATED 26106-100142
