YANMAR 135610-82401 Shim Set, Adjusting

Write a Review
$162.05
SKU:
135610-82401
Schematic Object Key:
27-1

YANMAR 135610-82401 Shim Set, Adjusting

$162.05

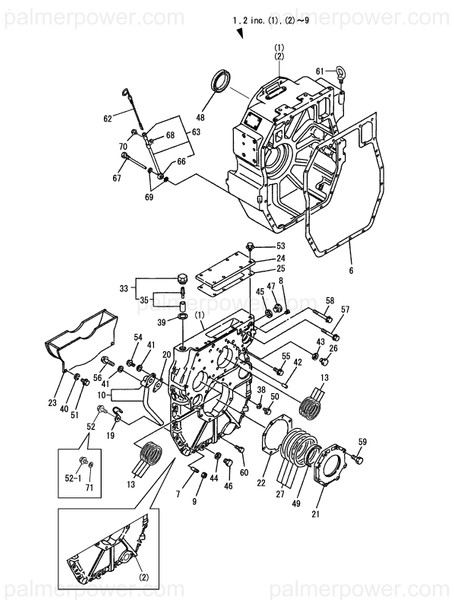

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

YANMAR 135610-82401 Shim Set, Adjusting

Schematic Object Key : 27-1

Product Description : SHIM SET, ADJUSTING

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Other Components:

Ref Description Part No.
1 BODY ASSY, CASE 177054-02000
2 BODY ASSY,CASE 177054-02070
6 GASKET, COVER 177054-02040
7 PIN, TAPER 10X 28 22333-100280
8 PLUG, R03 23871-030000
9 NUT, M10 26716-100002
10 PIPE ASSY, OIL 177054-02550
13 SHIM SET 177411-02550
19 RETAINER 177054-02580
20 GASKET, BEND 177064-02590
21-1 COVER,REAR OUTPUT 177054-02770
22-2 GASKET,REAR COVER 177054-02780
23-1 PLATE, BAFFLE 177054-02801
24 COVER 177054-02850
25 GASKET 177054-02860
26 PLUG, MAGNET M16X1.5 177035-02920
27-1 SHIM SET, ADJUSTING 135610-82401
33 PLUG ASSY, M30X1.5 123672-82850
35 THROWER ASSY, OIL 123672-82860
38 WASHER 8 22151-080000
39-1 WASHER, SEAL 30 22190-300002
40 SPRING WASHER 10 22212-100000
41 SPRING WASHER 10 22212-100000
42 PIN, PARALLEL M12X25 22312-120250
43 GASKET, 16X1.0 23414-160000
44 GASKET, 16X1.0 23414-160000
45 GASKET, 20X1.0 23414-200000
46 PLUG, 16 23883-160002
47 PLUG, 20 23887-200002
48 SEAL, OIL TC8511013 24423-851013
49 SEAL, OIL TC9512013 24423-952013
50-2 BOLT, M8X 10 PLATED 26106-080102
51 BOLT, M10X 16 PLATED 26106-100162
52-1 BOLT, M10X 16 PLATED 26106-100162
53 BOLT, M10X 20 PLATED 26106-100202
54 BOLT, M10X 25 PLATED 26106-100252
55 BOLT, M10X 35 PLATED 26106-100352
56 BOLT, M10X 50 PLATED 26106-100502
57 BOLT, M10X 95 PLATED 26106-100952
58 BOLT, M10X105 PLATED 26106-101052
59 BOLT, M12X 40 PLATED 26116-120402
60 BOLT, M10X 35 PLATED 26203-100352
61 BOLT, EYE M16 26610-160002
62-1 DIPSTICK 177516-02650
63 PIPE ASSY, DIPSTICK 177054-02700
66 JOINT, PIPE 10-16 23344-100000
67 BOLT 177055-02710
68 CLAMP, A10X12 23297-100121
69 GASKET, 16X1.0 23414-160000
70 BOLT, M10X 16 PLATED 26106-100162
71 SPRING WASHER 10 22212-100000
