YANMAR 145610-01230 Plug

Write a Review
$24.75
SKU:
145610-01230

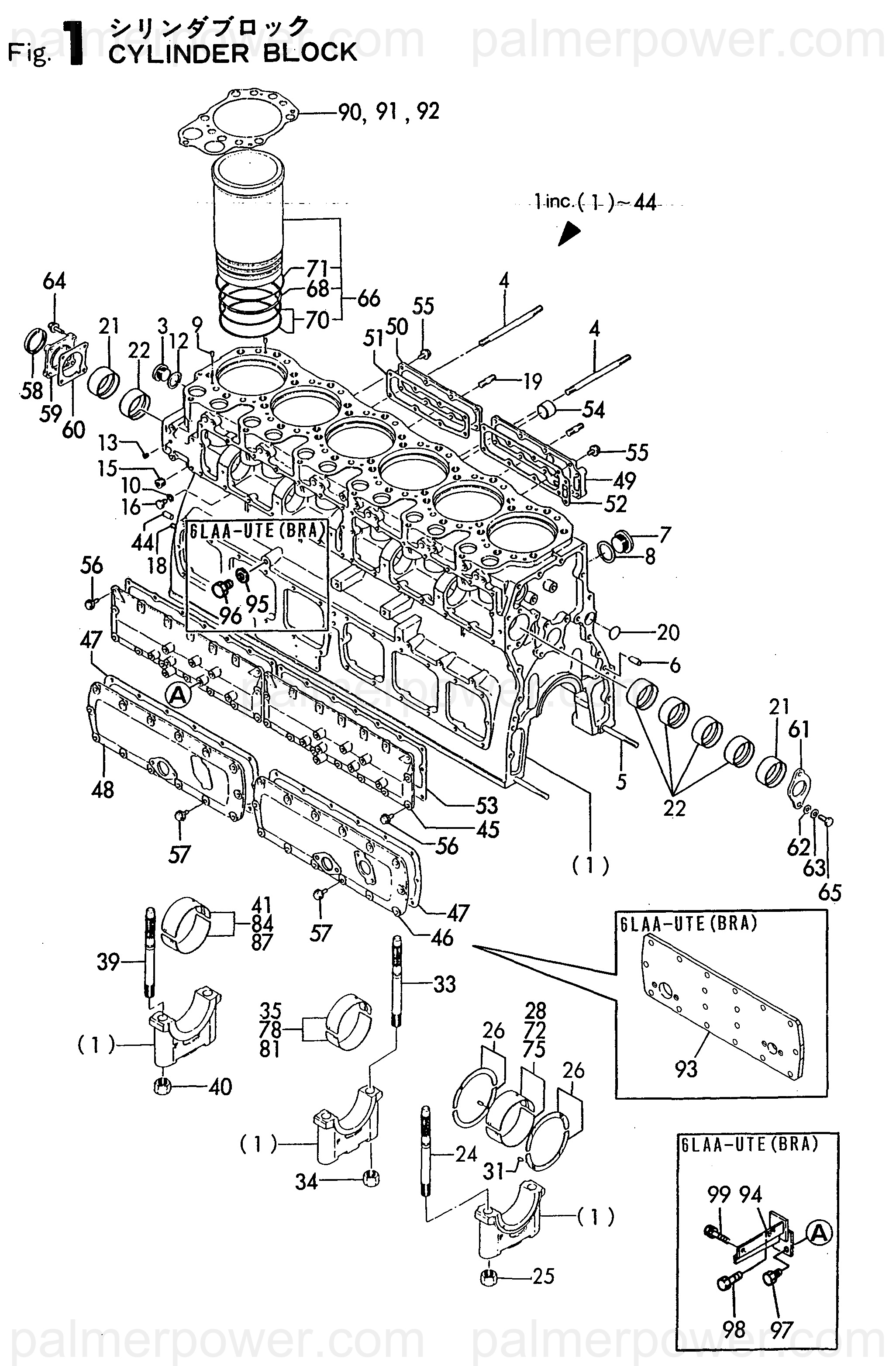

Schematic Object Key:
3

YANMAR 145610-01230 Plug

$24.75

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

YANMAR 145610-01230 Plug

Schematic Object Key : 3

Product Description : PLUG 145610-01230

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Other Components:

Ref Description Part No.
1 BLOCK ASSY, CYLINDER 748616-01561-A
3 PLUG 145610-01230
4 STUD, M16X196 148616-01740
5 STUD, M12X115 148616-01750
6 PIN, PARALLEL M12X28 22312-120280
7 PLUG, SCREW 126650-11750
8 GASKET, 45 126650-11760
9 PIN, PARALLEL M8X10 22312-080100
10 GASKET, 12X1.0 23414-120000
11 GASKET, 12X1.0 23414-120000
12 GASKET, 33X1.0 23414-330000
13 PLUG, R01 23871-010000
14 PLUG, R02 23871-020000
15 PLUG, R04 23871-040000
16 PLUG, 12 23887-120002
17 PLUG, 12 23887-120002
18 STUD M12X 28 26212-120282
19 STUD, M16X 32 26232-160322
20 PLUG, 35 27241-350000
21 BEARING, CAMSHAFT 148616-02400
22 BEARING, CAMSHAFT 148616-02420
24 BOLT, METAL CAP 148616-02070
25 NUT 145610-02090
26 BEARING, THRUST 148616-02230
28 BEARING, MAIN 148616-02300
31 PIN, PARALLEL M6X10 22312-060100
33 BOLT, METAL CAP 148616-02070
34 NUT 145610-02090
35 BEARING, MAIN 148616-02320
39 BOLT, METAL CAP 148616-02070
40 NUT 145610-02090
41 BEARING, MAIN 148616-02300
44 PIN, PARALLEL M12X28 22312-120280
45 COVER 148616-01771
47 GASKET, COVER 148616-01411
48 COVER, BLOCK 148616-01420
49 COVER 148616-01461
50 COVER 148616-01471
51 GASKET, COVER 148616-01482
52 GASKET, COVER 148616-01492
53 GASKET, COVER 148616-01763
54 COLLAR 148616-01880
55 BOLT, M10X 22 PLATED 26106-100222
56 BOLT, M10X 22 PLATED 26106-100222
57 BOLT, M10X 25 PLATED 26106-100252
58 SEAL, OIL 104700-02220
59 CASE, OIL SEAL 148616-02450
60 GASKET, CASE 148616-02461
61 BEARING, CAMSHAFT 148616-02480
62 WASHER 12 22131-120000
63 WASHER, SPRING 12 22217-120000
64 BOLT, M10X 30 PLATED 26106-100302
65 BOLT, M12X 28 PLATED 26116-120282
66A LINER ASSY, CYLINDER 748619-01921-J
68 GASKET, LINER 148616-01290
70-1 GASKET, LINER 148616-01310
71 GASKET, LINER 148616-01320
72 METAL, MAIN 0.25 US 148687-02900
75 METAL, MAIN 0.50 US 148687-02910
78 METAL, MAIN 0.25 US 148687-02930
81 METAL, MAIN 0.50 US 148687-02940
84 METAL, MAIN 0.25 US 148687-02900
87 METAL, MAIN 0.50 US 148687-02910
90 GASKET, HEAD T=1.9 148616-01340
91 GASKET, HEAD T=1.7 148616-01330
92 GASKET, HEAD T=2.1 148616-01350
93 COVER 148606-01430
94 RETAINER 148607-01450
95 GASKET, 16X1.0 23414-160000
96 PLUG 23881-160002
97 BOLT, M10X 16 26013-100162
98 BOLT, M10X 30 26013-100302
99 BOLT, M8X 35 26014-080352
