YANMAR 148006-49520 Bend

Write a Review
$1,332.26
SKU:
148006-49520
Schematic Object Key:
21

YANMAR 148006-49520 Bend

$1,332.26

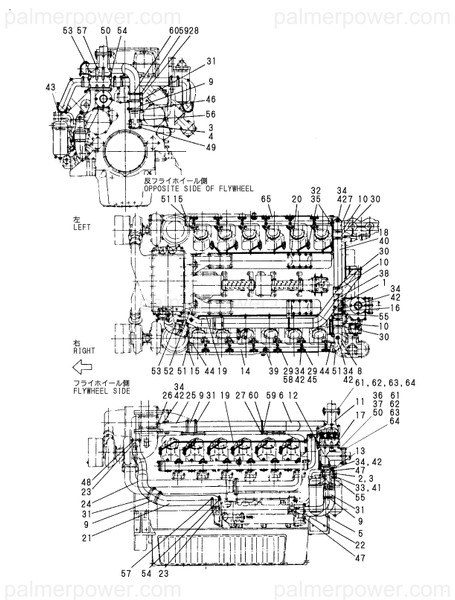

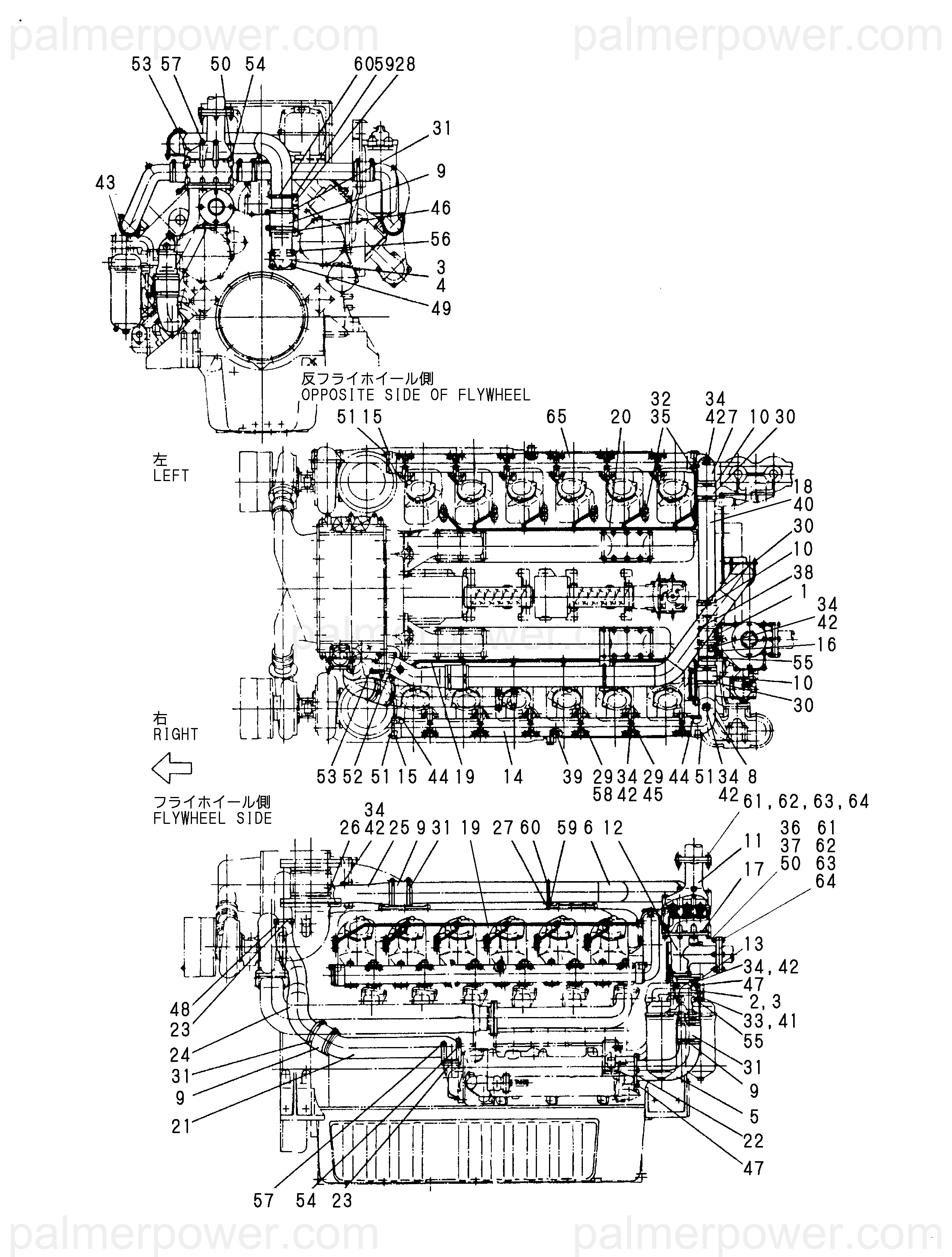

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

YANMAR 148006-49520 Bend

Schematic Object Key : 21

Product Description : BEND

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Other Components:

Ref Description Part No.
1 COVER, THERMOSTAT 148806-48130
2 BEND 148006-49110
3 GASKET 148606-49110
3-1 GASKET 148606-49111
3-2 GASKET, PUMP 148606-49112
4-1 BEND 148007-49120
5 BEND 148006-49130
6-1 PIPE, WATER 148007-49140
7 BEND 148806-49160
8 BEND 148806-49170
9 PIPE 148006-49220
10 HOSE, RUBBER 148816-49220
12 JOINT, 3-WAY 148007-49230
13 GASKET 148616-49240
13-1 GASKET, BEND 148616-49241
14 PIPE, WATER 148006-49250
14-1 PIPE, WATER 148006-49251
15 COVER 148816-49260
15-1 COVER 148006-49260
16 GASKET 148606-49280
16-1 GASKET, PIPE 148606-49281
17 GASKET 148006-49310
17-1 GASKET 148006-49311
18 PIPE, WATER 148806-49340
19 PIPE ASSY, AIR VENT 148006-49410
20 PIPE ASSY, AIR VENT 148006-49420
21 BEND 148006-49520
22 GASKET 148816-49540
22-1 GASKET 148816-49541
23 PACKING 148816-49550
23-1 PACKING 148816-49551
24 BEND 148006-49590
25 BEND 148006-49600
26 PACKING, COOLER 148816-49610
26-1 PACKING, COOLER 148816-49611
27 SUPPORT 148006-49920
28-1 SUPPORT 148807-49930
29 WASHER, 8 22137-080000
30 CLAMP, 102 23000-102000
30-1 CLIP, HOSE 100 43730-552200
30-2 HOSE CLIP 100 43730-552201
31 CLAMP, 115 23000-115000
31-1 CLIP, HOSE 112 43730-552210
32 GASKET, 12X1.0 23414-120000
33 GASKET, 12X1.0 23414-120000
34 GASKET, 17X1.0 23414-170000
35 BOLT, JOINT 6 23854-060000
37 PLUG, R04 23871-040000
38 PLUG, R04 23871-040000
39 PLUG, R10 23871-100000
40 PLUG, R10 23871-100000
41 PLUG 23881-120002
41-1 PLUG, 12 23887-120002
42 PLUG PF3/8 23891-030002
42-1 PLUG G3/8,HEX. 23897-030002
43 O-RING, 1AG40.0 24321-000400
44 O-RING, 1AG75.0 24321-000750
44-1 O-RING, 1AG75.0 24321-000750
45 BOLT, M8X 95 PLATED 26106-080952
46 BOLT, M10X 20 PLATED 26106-100202
47 BOLT, M10X 25 PLATED 26106-100252
48 BOLT, M10X 25 PLATED 26106-100252
49 BOLT, M10X 25 PLATED 26106-100252
50 BOLT, M10X 30 PLATED 26106-100302
51 BOLT, M10X 30 PLATED 26106-100302
52 BOLT, M10X 60 PLATED 26106-100602
53 BOLT, M10X 65 PLATED 26106-100652
54 BOLT, M10X 85 PLATED 26106-100852
55 BOLT, M10X 90 PLATED 26106-100902
56 BOLT, M10X 90 PLATED 26106-100902
57 BOLT, M10X100 PLATED 26106-101002
58 BOLT, M8X120 PLATED 26116-081202
59 NUT, M10 26366-100002
60 U-BOLT, 80 26464-080000
61 FLANGE, 5K 65 23211-065077
62 PACKING 23431-065000
63 BOLT, M12X 45 PLATED 26116-120452
64 NUT, M12 26716-120002
65 PIPE, WATER 148006-49240
