YANMAR 148016-18030 Turbine Assy

Write a Review
$12,566.53
SKU:
148016-18030
Schematic Object Key:
1

YANMAR 148016-18030 Turbine Assy

$12,566.53

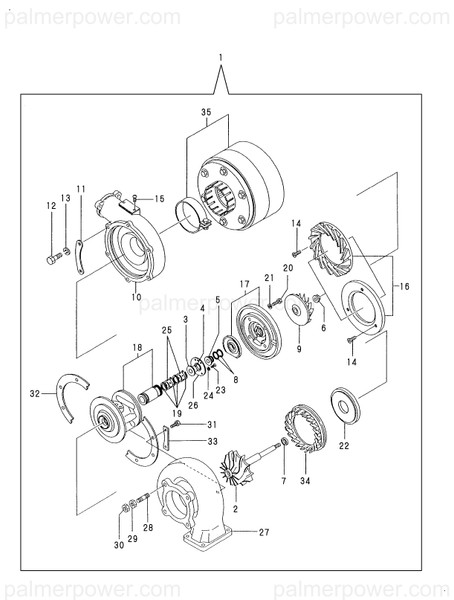

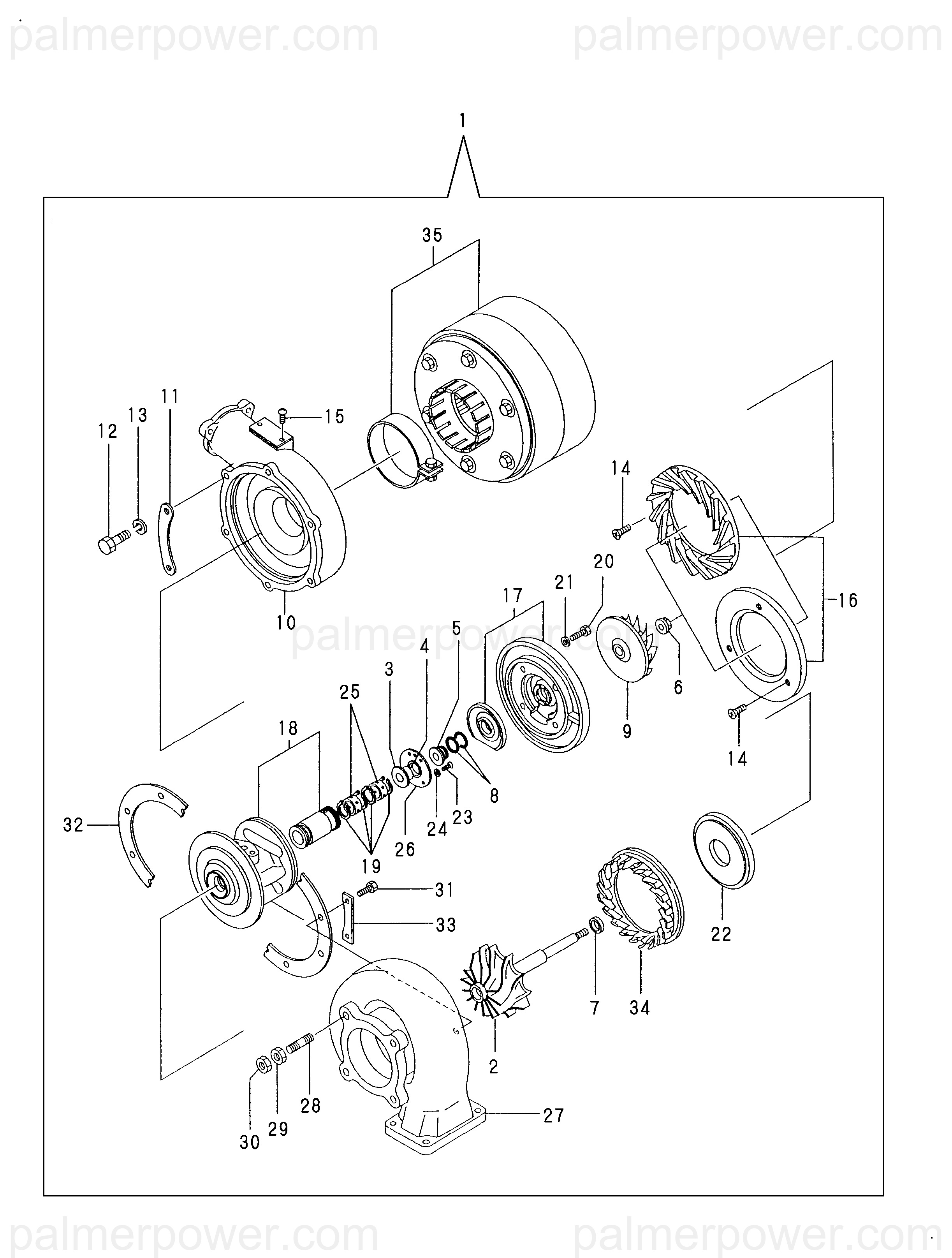

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

YANMAR 148016-18030 Turbine Assy

Schematic Object Key : 1

Product Description : TURBINE ASSY

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Other Components:

Ref Description Part No.
1 TURBINE ASSY 148016-18030
1A TURBINE ASSY 148016-18040
1B TURBINE ASSY 148016-18050
1C TURBINE ASSY 148016-18060
2 SHAFT ASSY XNN381700
2-1 SHAFT CMP XNN38N10E03
3 COLLAR XNN381011
3-1 COLLER XNN38N10N51
4 BUSH XNN381012
5 SHIELD, OIL XNN381005
6 NUT M10 XNN381008
7 SEAL RING XNN781004
7-1 SEAL RING XNN381014
8 RING, SEAL XNN711004
8-1 SEAL RING XNN381007
9 IMPELLER, BLOWER XNN385003
10 BLOWER CASING ASSY XNN383100
10-1 HOUSING, COMPRESSOR XNN38N30D21
11 RETAINER XNN383004
12 BOLT XNN383005
13 WASHER XNN808506
13-1 LOCKING WASHER XJB611011
14 SCREW XNN383003
14-1 SCREW XJA121073
15 RIVET XNN528947
15-1 RIVET XNH179706
16 GUIDE YOKE XNN384201
17 PLATE,SEAL XNN385600
17-1 SEAL PLATE XNN38N55B04
18 BEARING CASING ASSY XNN386100
18-1 HOUSING, BEARING XNN38N60D00
19 SNAP RING XNN957104
20 BOLT M6 XNN386007
21 SCREW M 4 XNN947205
21-1 WASHER 6 XNN386010
22 PLATE XNN386006
23 SCREW M 4 XNN947205
24 LOCK WASHER XNN947206
24-1 WASHER XNN386107
25 METAL, FLOATING XNN386401
26 METAL, THRUST XNN386402
27 TURBINE HOUSING ASSY XNN387300
27-1 HOUSING, TURBINE XNN38N67E02
28 STUD M12 XNN968004
29 NUT M12 XNN888205
29-1 NUT M12 XJB227003
30 NUT M12 XNN968005
30-1 NUT,TYPE 3,M12 XNN386707
31 BOLT M8 XNN386704
31-1 HEX. BOLT M8 XNN177406
31-2 BOLT XNH993318
32 RETAINER XNN386706
33 BEND WASHER XNN386705
34 TURBINE NOZZLE XNN382211
34-1 TURBINE NOZZLE XNN382209
34A TURBINE NOZZLE XNN382209
35 SILENCER XNN388650
35-1 SILENCER XNN38N85D04
