YANMAR 148218-51640 Cap, Rack

Write a Review
$119.95
SKU:
148218-51640
Schematic Object Key:
48

YANMAR 148218-51640 Cap, Rack

$119.95

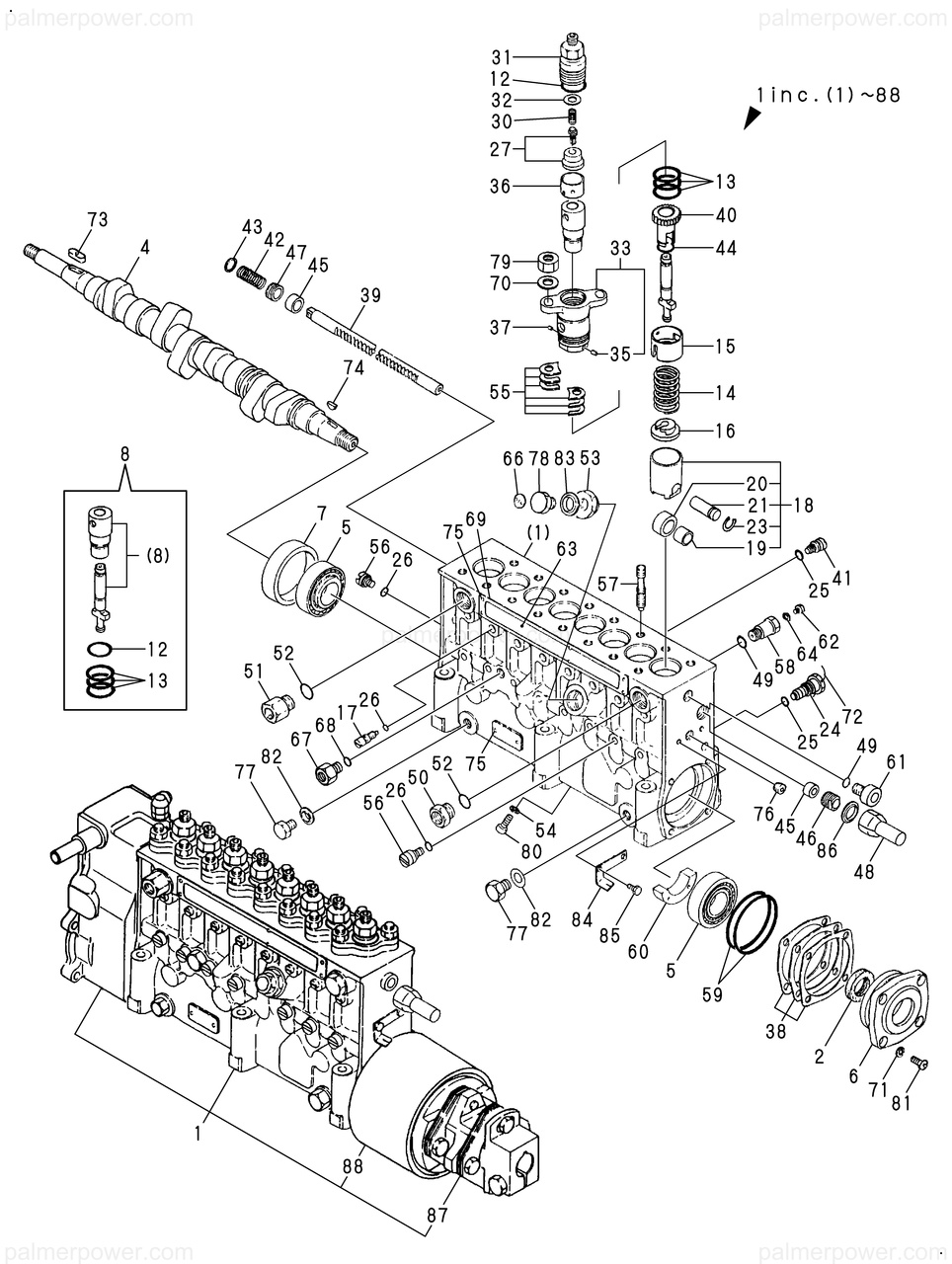

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

YANMAR 148218-51640 Cap, Rack

Schematic Object Key : 48

Product Description : CAP, RACK

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Other Components:

Ref Description Part No.
1 PUMP ASSY, F.INJECT 748218-51350
2 OIL SEAL TC304508 136600-42480
4 CAMSHAFT 148218-51030
5 BEARING 144626-51050
6 SUPPORT, CAMSHAFT 148016-51060
7 SUPPORT, CAMSHAFT B 144626-51070
8 PLUNGER ASSY 748688-51600
12 O-RING 148218-51380
13 O-RING, S34 144626-51420
14 SPRING, PLUNGER 148616-51160
15 RETAINER, SPRING A 144626-51171
16 RETAINER, SPRING 148688-51180
17 STOPPER 144626-51191
18 TAPPET 148688-51200
19 BUSH 148688-51210
20 ROLLER, TAPPET 148688-51220
21 PIN, ROLLER 148688-51230
23 CIRCLIP 148688-51250
24 STOPPER 144626-51271
25 O-RING, P9 144626-51281
26 O-RING, P6 144626-51290
27 VALVE ASSY, DELIVERY 148218-51280
30 SPRING, VALVE 148218-51330
31 HOLDER, DELIVERY 148218-51341
32 GASKET, DELIVERY 148218-51390
33 SUPPORT ASSY, BARREL 148218-51410
35 PIN 144626-51410
36 DEFLECTOR 148616-51420
37 PIN 144626-51430
38 SHIM SET, CAMSHAFT 144626-51451
39 RACK, CONTROL 148218-51500
40 PINION 148688-51510
41 SCREW 144626-51521
42 SPRING 135410-51530
43 WASHER 135410-51540
44 CIRCLIP 144626-51540
45 BUSH, RACK 144626-51580
46 SCREW 148688-51590
47 SCREW 144626-51600
48 CAP, RACK 148218-51640
49 O-RING 144626-51660
50 PLUG 144626-51670
51 PLUG 148616-51671
52 O-RING 144626-51680
53 PLUG, M16 L17 136603-51690
54 WASHER, SEAL 144626-51700
55 SHIM SET, ADJUSTING 148688-51700
56 PLUG 144626-51730
57 BOLT 144626-51800
58 PROTECTOR, SPILL 144626-51830
59 O-RING, S71 144626-51840
60 BEARING 148688-51850
61 PROTECTOR, SPILL 148688-51860
62 BOLT 122780-51900
63 NAMEPLATE,CAUTION 148688-51910
64 GASKET, PLUG 180110-51910
66 LABEL 144626-51930
67 PLUG 144626-51940
68 O-RING, 1016 144626-51950
69 LABEL 148816-51950
70 WASHER 144626-54581
71 WASHER, 8 22287-080000
72 WIRE, 0.6 22451-060000
73 KEY, 7X 22 22512-070222
74 KEY, WOODRUFF 6X22 22522-060220
75 RIVET, 2.3X 3 22621-230030
76 PLUG, R02 23871-020000
77 PLUG 23881-120002
78 PLUG 23881-160002
79 NUT, M10 26376-100002
80 BOLT, M6X 16 26450-060162
81 BOLT, M8X 20 26450-080202
82 SEAL WASHER 12S 43400-500450
83 SEAL WASHER 16 43400-500500
84 POINTER 148687-51881
85 BOLT, M8X 16 PLATED 26106-080162
86 WASHER, SEAL M18 144626-51960
87 JOINT ASSY 148688-54990
88 TIMER ASSY 148218-54501
