YANMAR 148609-61550 Shaft Assy

Write a Review
$349.64
SKU:
148609-61550
Schematic Object Key:
42

YANMAR 148609-61550 Shaft Assy

$349.64

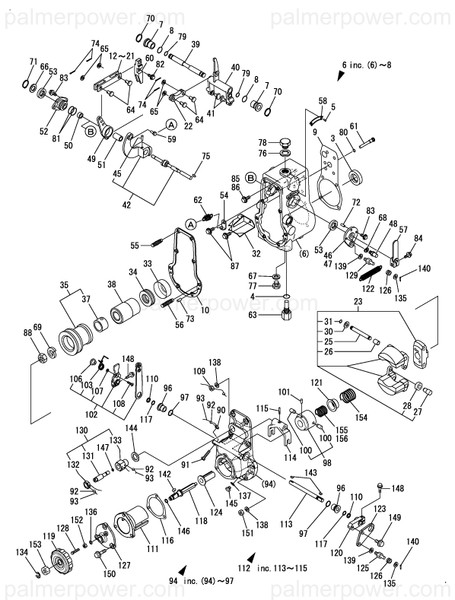

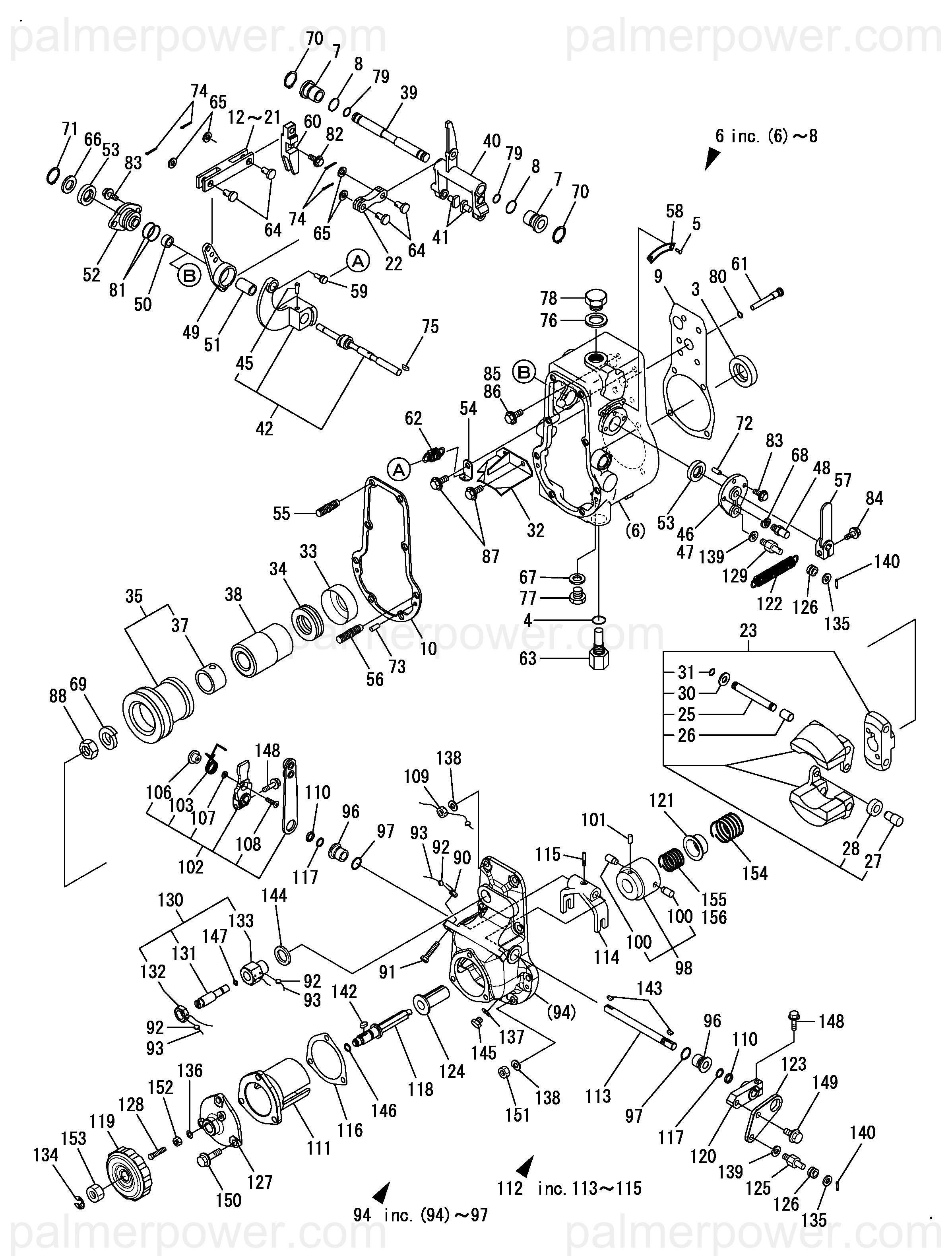

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

YANMAR 148609-61550 Shaft Assy

Schematic Object Key : 42

Product Description : SHAFT ASSY

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Other Components:

Ref Description Part No.
3 SEAL, OIL 135210-51080
4 O-RING 122710-51360
5 RIVET 124220-51890
6 CASE 148640-61010
7 BUSH, 1ST LEVER 144626-61431
8 O-RING, 1015 144626-61800
9 GASKET, CASE 152623-61051
10 GASKET 148640-61070
12 LINK, L50 144626-61140
13 LINK 148640-61140
14 LINK, B 148691-61140
15 LINK, L51 144626-61150
16 LINK 148640-61150
17 LINK, B 148691-61150
18 LINK 148640-61160
19 LINK, B 148691-61160
20 LINK 148640-61170
21 LINK 148640-61180
22 LINK, GOVERNOR 140673-61160
23 WEIGHT ASSY,GOVERNOR 148640-61200
25 PIN, GOVERNOR WEIGHT 135210-61221
26 BUSH, WEIGHT PIN 135210-61230
27 PIN 148640-61240
28 ROLLER 148640-61250
30 WASHER, 10 22117-100000
31 RING, 10 22242-000100
32 PLATE 148640-61270
33 WASHER 140623-61310
34 THRUST BEARING 135210-61320
35 SHIFTER ASSY 148609-61330
37 BUSH, RETAINER 140673-61350
38 SPACER, CAMSHAFT 140623-61500
39 SHAFT,GOVERNOR LEVER 144626-61510
40 LEVER, GOVERNOR NO.1 144626-61530
41 RETAINER, 1ST LEVER 135210-61540
42 SHAFT ASSY 148609-61550
45 PIN, TAPER 3X18 22322-030180
46 BEARING, 2ND LEVER A 148616-61570
48 BOLT, LEVER SHAFT A 135210-61590
49 LEVER, 2ND 136603-61590
50 BEARING, D24L12 136603-61600
51 SLEEVE, 2ND LEVER A 144626-61620
52 BEARING, 2ND LEVER B 148616-61640
53 SEAL, VC081404 148616-61650
54 BRACKET 148640-61790
55 STUD 148640-61800
56 STUD 148640-61810
57 HANDLE,FUEL SHUT-OFF 135210-61830
58 PLATE 144626-61840
59 PIN 135210-61850
60 LINK 148640-61850
61 GUIDE 136603-61860
62 SPRING, HANDLE 144626-61890
63 BUSH 152623-61910
64 PIN, GOVERNOR LINK 180110-66410
65 WASHER, LEVER 131110-66420
66 WASHER, 8 22137-080000
67 WASHER, SEAL 12 22190-120002
68 WASHER, SPRING 6 22217-060000
69 WASHER, SPRING 14 22217-140000
70 RING, 11 22242-000110
71 RING, 7 22276-000070
72 PIN, PARALLEL M6X14 22312-060140
73 PIN, PARALLEL M6X14 22312-060140
73-1 PIN, PARALLEL M6X20 22312-060200
74 PIN, COTTER 1.6X12 22417-160120
75 KEY, WOODRUFF 3X10 22522-030100
76 GASKET, 22X1.0 23414-220029
77 PLUG, 12 23887-120002
78 PLUG, G1/2 23897-040002
79 O-RING, 1AP8.0 24311-000080
80 O-RING, 2P5.0 24312-000050
81 O-RING 2 P-20.0 24312-000200
82 BOLT, M6X 16 PLATED 26106-060162
83 BOLT, M6X 16 PLATED 26106-060162
84 BOLT, M6X 18 PLATED 26106-060182
85 BOLT, M8X 22 PLATED 26106-080222
87 BOLT, M8X 32 PLATED 26106-080322
88 NUT, M14 26601-140002
90 LOCK NUT 135210-51610
91 SCREW, SPEED ADJUST 135210-61080
92 TIN 114780-61090
93 WIRE 135210-61100
94 HOUSING ASSY 148640-61110
96 BUSH, SHAFT 152623-61430
97 O-RING, 1015 144626-61800
98 RETAINER, SPRING 148616-61361
100 STOPPER 135210-61380
101 PIN 148616-61390
102 LEVER ASSY, CONTROL 148640-61400
103 SPRING, LEVER 148616-61410
106 RETAINER, SPRING 148616-61440
107 WASHER, SPRING 5 22217-050000
108 SCREW, M5X16 26567-050162
109 NUT 136603-61440
110 RETAINER, O-RING 152623-61440
111 GUIDE 144626-61450
112 SHAFT ASSY 148640-61450
113 SHAFT, LEVER 148640-61430
114 LEVER 148640-61480
115 PIN, TAPER 148016-61550
116 GASKET, GUIDE 144626-61461
117 O-RING 152623-61460
118 SHAFT W/BUSH 135600-61481
119 HANDLE 135600-61491
120 BRACKET, LEVER 144626-61740
121 RETAINER, SPRING 148616-61740
122 SPRING 144626-61751
123 LEVER, SPRING 144626-61761
124 SCREW, ADJUSTING 148616-61761
125 BOLT, SPRING A 144626-61771
126 PIECE 144626-61781
127 BRACKET, HANDLE 148616-61780
128 SCREW, ADJUSTING 148616-61800
129 BOLT, SPRING B 144626-61900
130 BOLT ASSY 148640-61930
131 BOLT, CONTROL 148640-61940
132 NUT 140673-61950
133 GUIDE 140673-61960
134 CIRCLIP (7) 135200-61970
135 WASHER, 8 22137-080000
136 WASHER, SEAL 6 22190-060001
137 WASHER, SEAL 6 22190-080002
138 WASHER, SPRING 8 22217-080000
139 WASHER, SPRING 8 22217-080000
140 PIN, COTTER 1.6X12 22417-160120
142 KEY, 5X 12 22512-050120
143 KEY, WOODRUFF 4X13 22522-040130
144 GASKET, 20X1.0 23414-200000
145 PLUG 8 23887-080002
146 O-RING, 1AP11.0 24311-000110
147 O-RING, 2P7.0 24312-000070
148 BOLT, M6X 22 PLATED 26106-060222
149 BOLT, M8X 18 PLATED 26106-080182
150 BOLT, M8X 30 PLATED 26106-080302
151 NUT, M8 26706-080002
152 NUT, LOCK M6 26756-060002
153 NUT, LOCK M12 26776-120002
154 SPRING, GOVERNOR 148616-61710
155 SPRING, IDLE 148640-61730
